Symetrix ARC-SW4e Modular Remote Control

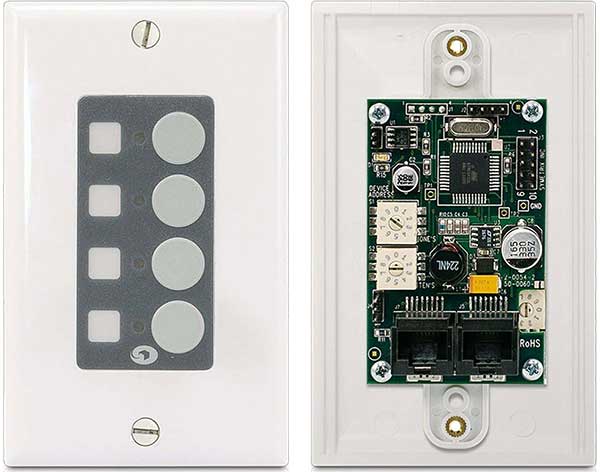

This is the gray-faceplate ARC-SW4e, Symetrix's modular switch panel for SymNet and Jupiter DSP systems. Each of its four buttons can be set as latched, momentary, or part of a radio-button group, so one plate can handle mute, source selection, and preset recall. Four tri-color LEDs give clear feedback: they can track their buttons or be driven independently by the DSP, and an idle mode dims them in light-sensitive spaces. Hardware lockout pins accept an installer-supplied key switch to protect the settings.

A single RJ-45 connection carries power and data back to the DSP over standard structured cable. The panel mounts in a standard single-gang U.S. electrical box behind a gray Decora faceplate with a splash-resistant overlay. Up to three ARC-EX4e button expanders can be chained to a single SW4e, and the ARC-PSe power supply feeds larger panel counts over long cable runs.
