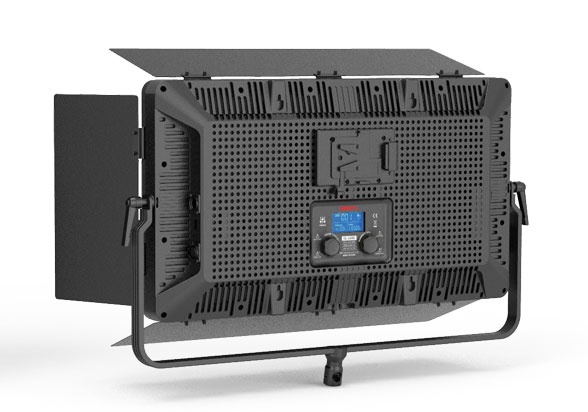

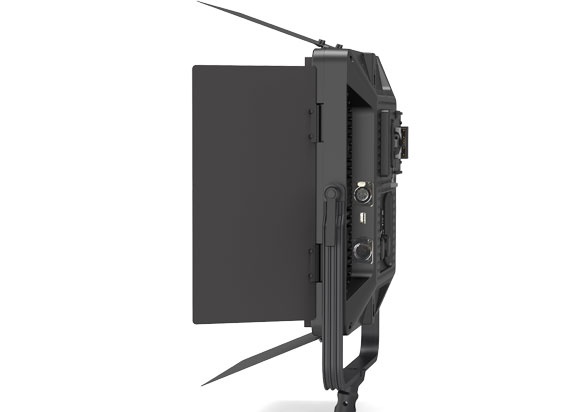

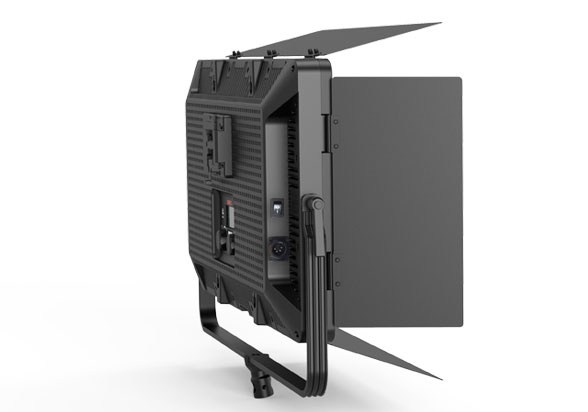

SWIT CL-120D 120W Bi-Color SMD LED Panel Light

The CL-120D is the larger 2:1 panel in the CL series, running 120W for 3700 lux at one metre on centre. The wider aspect suits a two-shot or an interview setup where a square panel would need to be pulled back further than the room allows.

Everything else matches the CL-60D: SMD emitters for an evenly spread field, 0 to 100 percent PWM dimming without flicker, continuous colour temperature from 2700K to 6500K in 50K steps, and CRI 98 with TLCI 99. DMX512 runs on 5-pin XLR in and out, a rear LCD reads dimmer, colour temperature, DMX address and battery state, and power is 11 to 17V on 4-pin XLR from a battery plate or an AC-DC adaptor. The LA-G120 honeycomb is the matching accessory.

Power120 W
Output3700 lux at 1 m, centre
Panel Aspect2:1
Colour Temperature2700K to 6500K, continuously adjustable in 50K steps
Colour RenderingCRI 98, TLCI 99
Dimming0 to 100 percent PWM, flicker free
DMXDMX512 on 5-pin XLR in and out
Power InputDC 11 to 17V on 4-pin XLR, battery plate or AC-DC adaptor
AccessoryOptional LA-G120 honeycomb
