SWIT PB-S98S 98Wh V-Mount Battery
The PB-S98S is a 98Wh V-mount battery in the same compact, squared-off case as SWIT's gold-mount PB-S98A, built from the same 14.4V, 6.8Ah cell stack and rated for a 150W / 12A load, enough to run a typical ENG or cine camera for roughly three hours between charges.

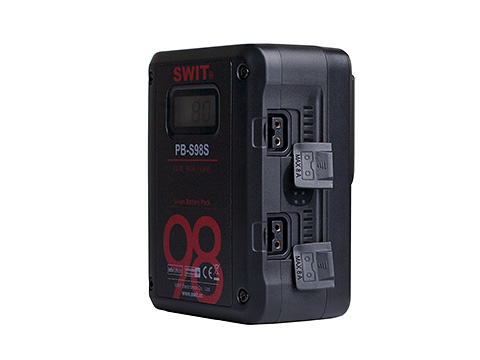

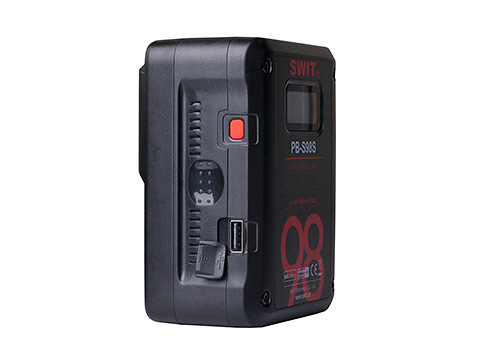

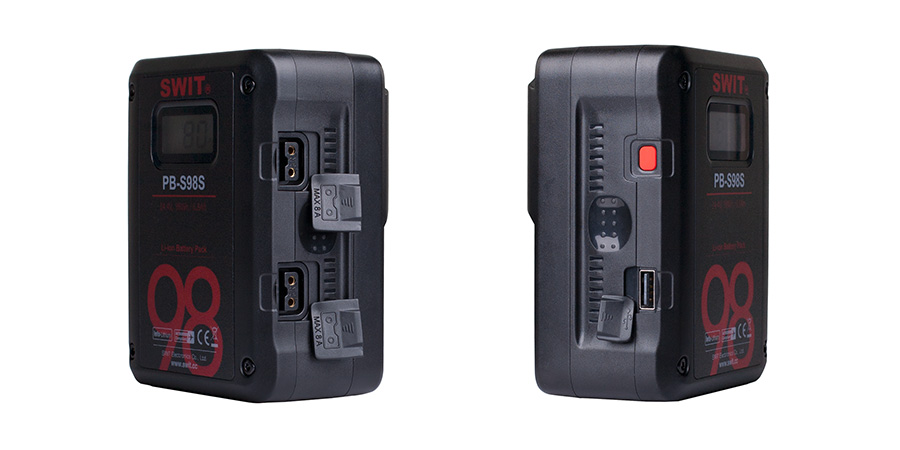

Power comes out three ways: two D-tap sockets rated to 10A / 120W for monitors, lights and accessories, plus a 5V / 2A USB port for phones and tablets. An LCD panel reports remaining percentage, estimated runtime, low-power warnings and cycle count, and feeds battery info to Sony and RED viewfinders. At 0.809kg it drops onto any standard V-mount plate.
| Battery Type | Li-ion V-mount |
|---|---|
| Voltage | 14.4V nominal |
| Capacity | 98Wh / 6.8Ah |
| Max Load | 150W / 12A |
| D-tap Outputs | 2x (10A / 120W max) |
| USB Output | 5V / 2A, 10W |
| Display | LCD remaining power, runtime and cycle count; Sony/RED viewfinder compatible |
| Weight | 0.809 kg |
