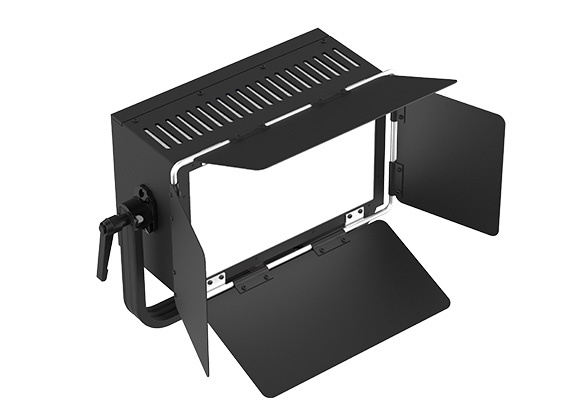

SWIT CL-M100D 100W Mini Size Studio SMD LED Light
The CL-M100D packs 576 SMD LEDs into a mini studio panel, aimed at productions that need a full-size fixture's control without the footprint. Color temperature runs 2700K to 6500K continuously, with CRI 98 and TLCI 99 holding up next to camera-native color.

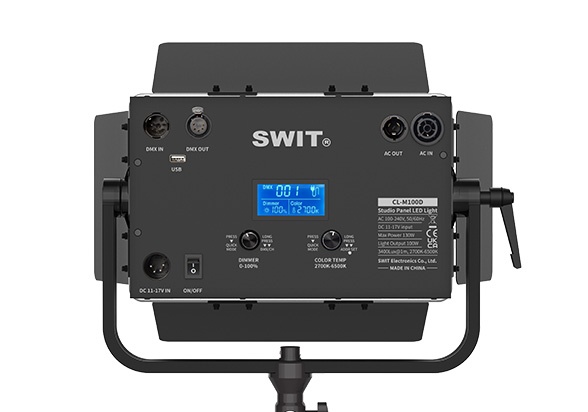

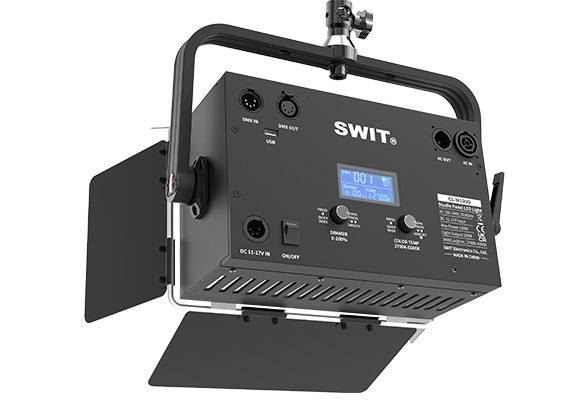

Control comes from either the onboard LCD and dimming wheel or DMX512 for a lighting board, and power can come from mains through a PowerCON TRUE1 connector or a 4-pin XLR DC input for battery rigs. At 5.6kg net it still mounts on a standard stand rather than requiring a dedicated frame.
| LED Count | 576 SMD LEDs |
|---|---|
| Power | 100W (max 130W input) |
| Illuminance | 3400 lux @ 1m |
| Beam Angle | 62 degrees (half peak) |
| Color Temperature | 2700K - 6500K, continuously adjustable |
| Color Rendering | CRI 98, TLCI 99, SSI (D55) 73 |
| Power Input | PowerCON TRUE1 AC 100-240V, or 4-pin XLR DC 11-17V |
| Control | DMX512, onboard LCD, manual dimming |
| Dimensions | 275 x 173 x 130 mm |
| Weight | 5.6 kg net |
