Sony BRAVIA Theater Quad (HT-A9M2) Four-Speaker Home Theater System

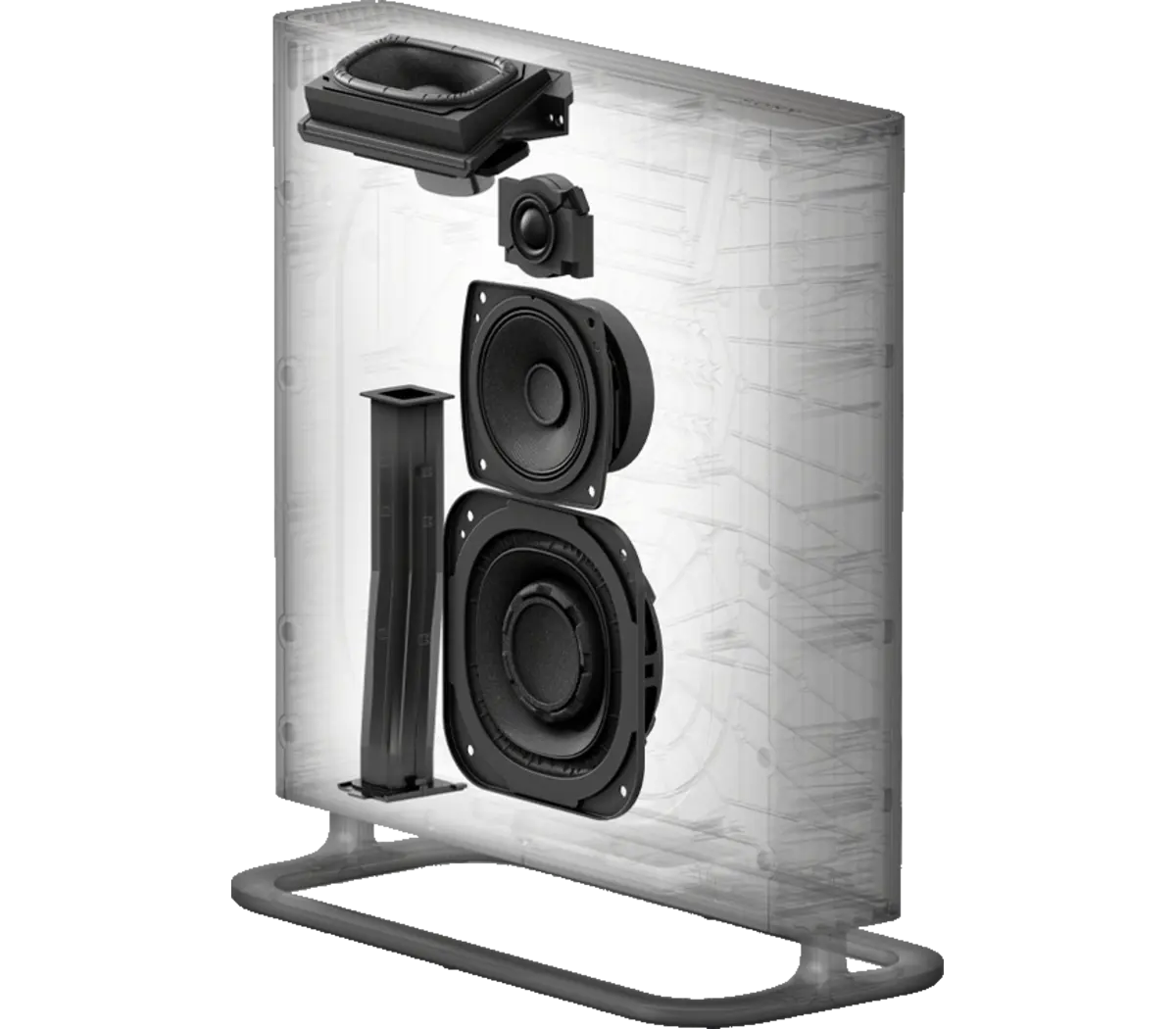

BRAVIA Theater Quad is a four-speaker system rather than a bar: two front and two rear panels, each 289 x 275 x 55 mm and 2.4 kg, carrying two X-Balanced bass-reflex woofers and two up-firing drivers for sixteen speaker units in a 4.0.4 layout on sixteen channels of S-Master HX amplification. 360 Spatial Sound Mapping fills the space between them with phantom speakers, and Sound Field Optimization tunes the result to the room.

Dolby Atmos, DTS:X and 360 Reality Audio decode over the HDMI input, with eARC/ARC to the television and an S-Center Out so a compatible BRAVIA TV can act as the centre channel. Wi-Fi and Bluetooth 5.2 are built in. Table stands and wall-mounting brackets are supplied for the speakers; BRAVIA Theater wireless subwoofers can be added.

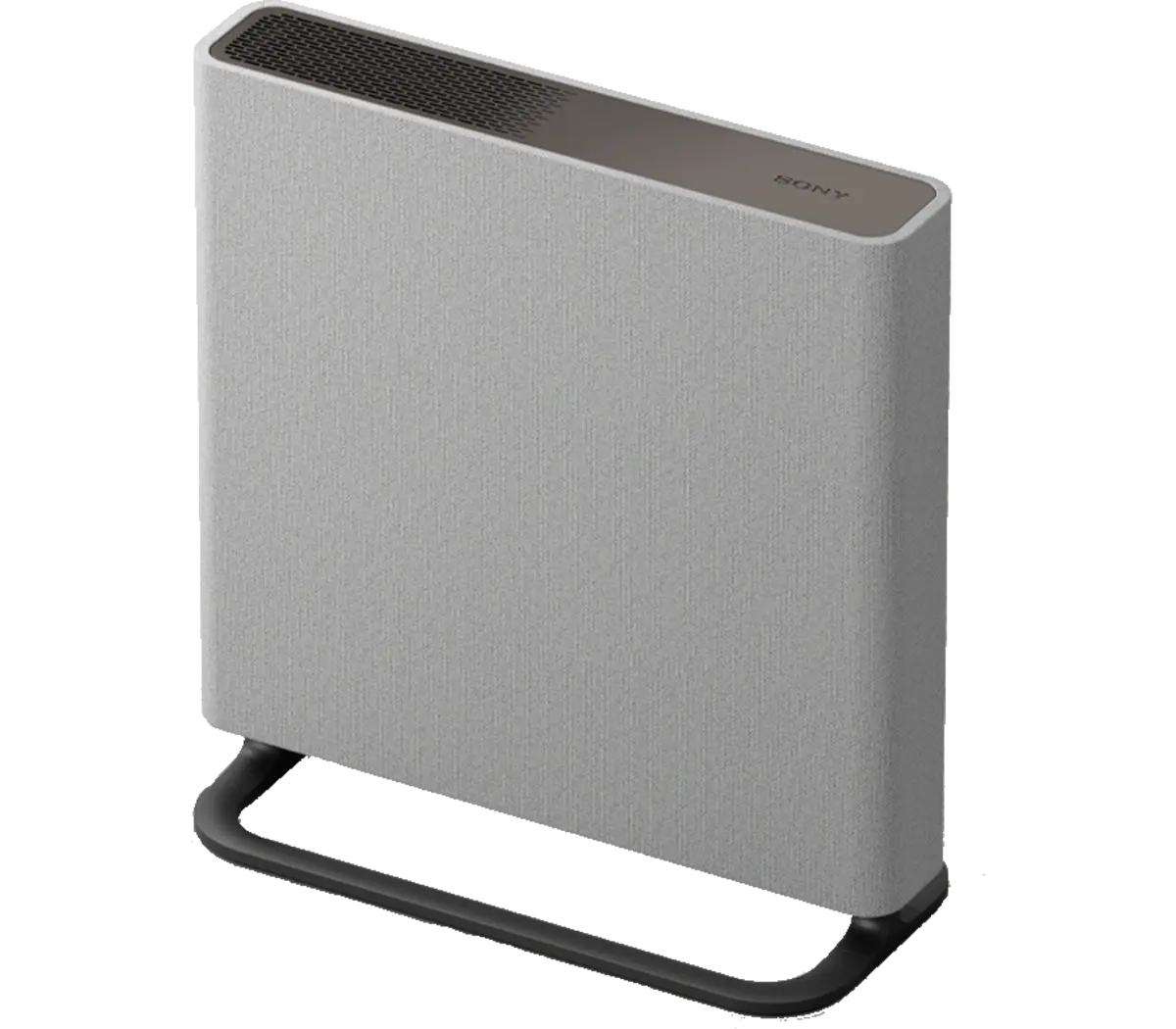

SpeakersFour wireless units (2 front, 2 rear), each approx. 289 x 275 x 55 mm, 2.4 kg
SuppliedTable stands and wall-mounting brackets
Speaker Structure4.0.4 ch
Number of Channel16 ch
Amplifier TypeDigital Amplifier: Yes, S-Master HX: Yes
WooferEnclosure Type: Bass reflex, Unit size (mm): 85 mm x 85 mm, Unit size (inch): 3 3/8 in x 3 3/8 in, X-Balanced Speaker Unit: Yes
Upfiring SpeakerNumber of speaker: 2, Unit size (mm): 36 mm x 79 mm, Unit size (inch): 1 7/16 in x 3 1/8 in, X-Balanced Speaker Unit: Yes
HDMI inputDTS 96/24: Yes, DTS:XYes, LPCM: Yes, LPCM fs: -192kHz/24bit, MPEG-H 3D Audio BL profile(Level3/Level4): Yes, 360 Reality Audio: Yes
