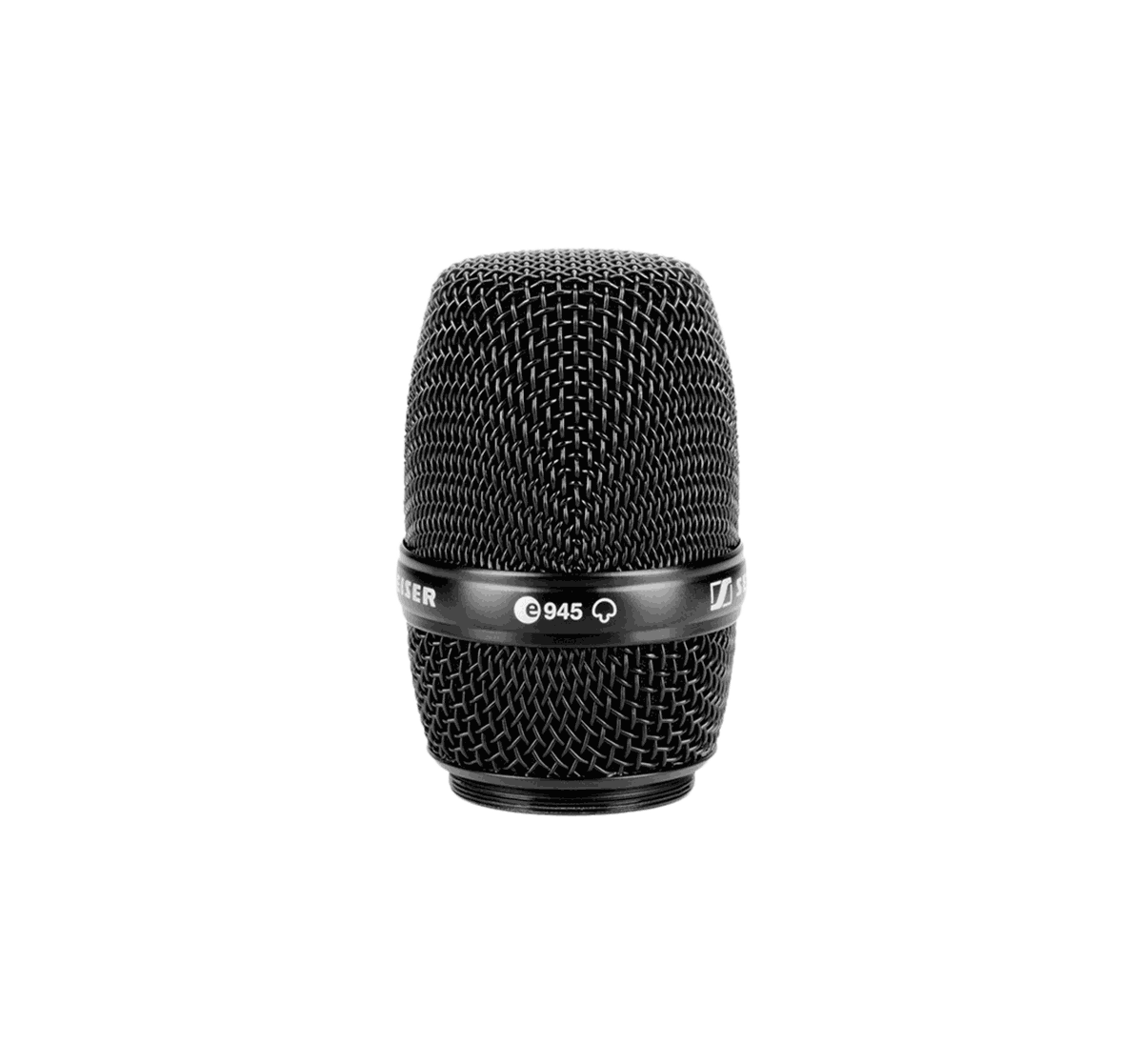

Sennheiser MMD 945-1 BK Dynamic Supercardioid Microphone Capsule
The MMD 945-1 BK is the screw-on capsule head that puts the sound of Sennheiser's wired e945 vocal microphone onto an evolution wireless handheld transmitter. It is a dynamic element with a supercardioid pattern, so it stays tightly focused on the vocalist and rejects sound arriving from the sides and rear. That tight pattern gives it especially high feedback rejection and a consistent tone as the singer works the mic, which is what makes it a dependable choice for loud stages and monitor-heavy performances.
As a dynamic capsule it needs no phantom power and tolerates very high levels, handling up to 154 dB SPL before distortion. It threads directly onto the transmitter body in place of the stock head, letting an owner upgrade or match capsules across a rig. The MMD 945-1 BK fits Sennheiser 2000 Series, evolution G4 SKM, and evolution G3 SKM handheld transmitters, in a black finish.
| Transducer | Dynamic |
|---|---|
| Polar Pattern | Supercardioid |
| Frequency Response | 40-18,000 Hz |
| Sensitivity | 1.8 mV/Pa |
| Max SPL | 154 dB |
| Dimensions | 77.3 mm length, 50.5 mm diameter |
| Weight | 119 g |
| Compatibility | 2000 Series, evolution G4 SKM, evolution G3 SKM handheld transmitters |
