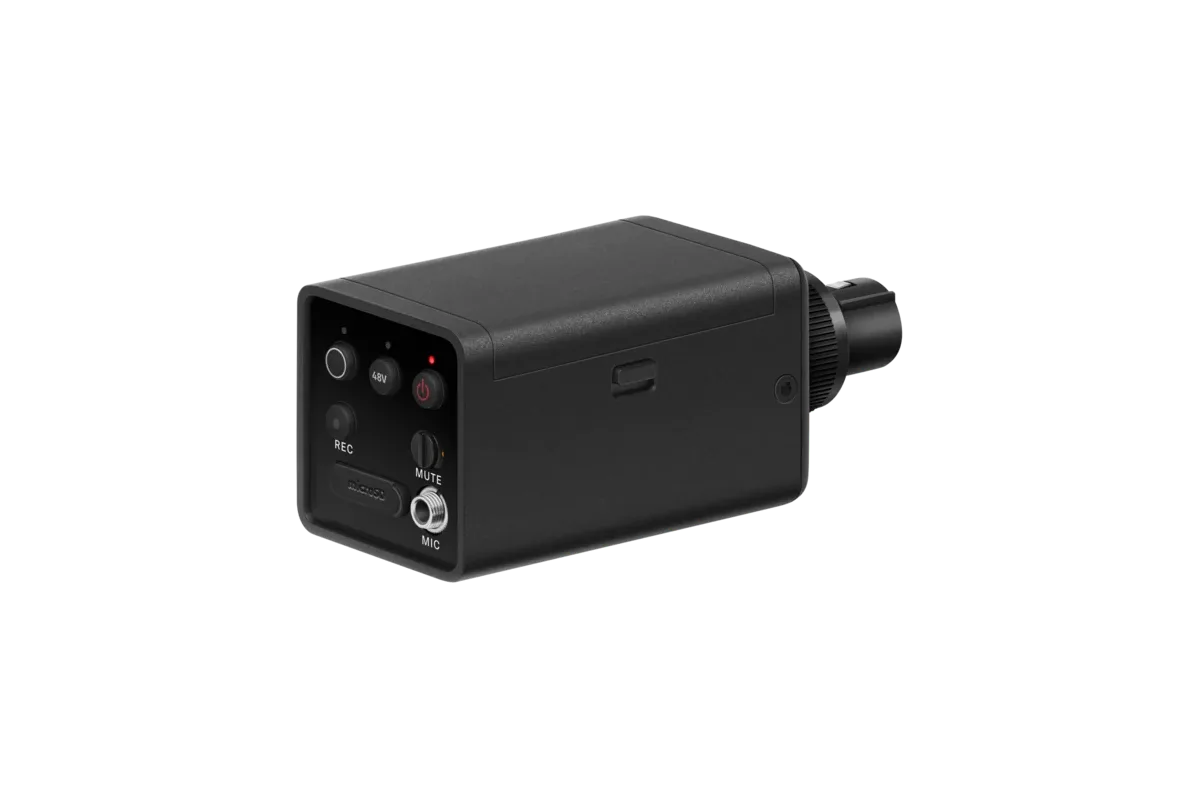

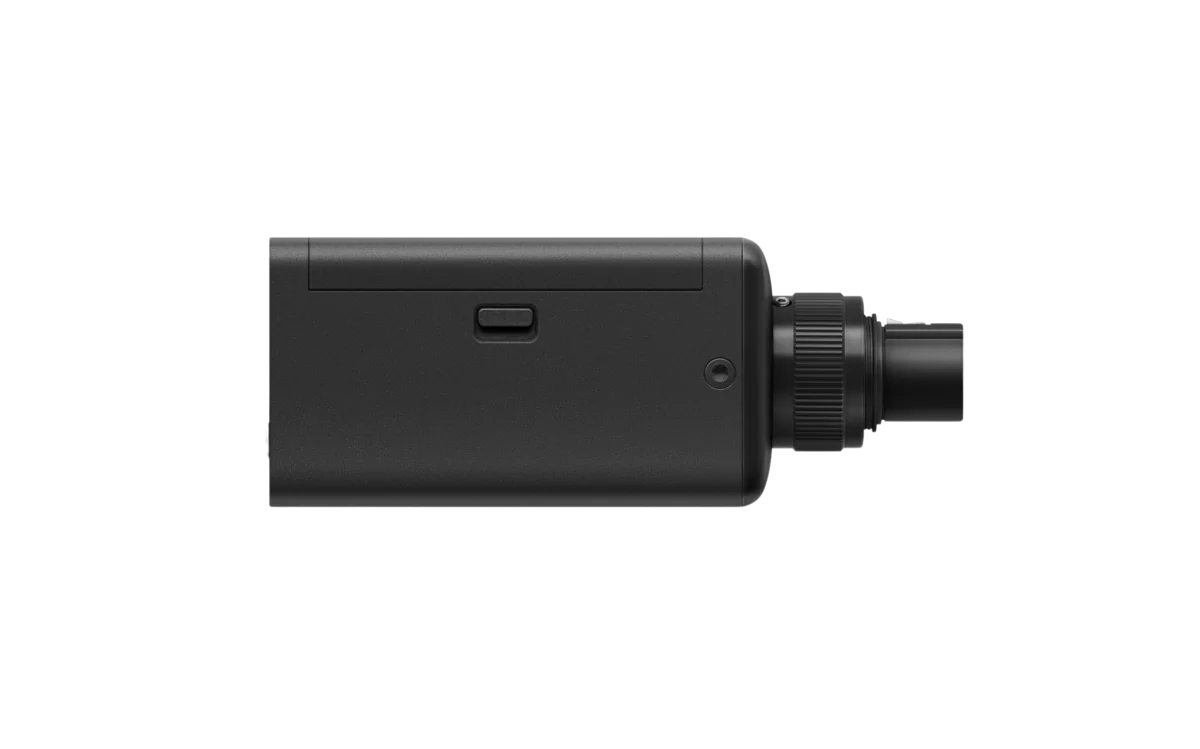

Sennheiser EW-DP SKP Plug-On Transmitter
The EW-DP SKP turns any wired microphone into an EW-DP channel. It clips onto an XLR, supplies 48 V phantom for a condenser shotgun or a handheld condenser, and sends the result to an EW-DP EK on the camera. A 3.5 mm input on the body also accepts a lavalier, so one transmitter covers both jobs.
The part that earns its place in a documentary kit is the microSD slot: the SKP records locally while it transmits, so an RF hit in a lift lobby or a car park does not cost the interview. The digital link runs 20 Hz to 20 kHz with more than 134 dB of dynamic range, distortion at or below minus 60 dB, and 1.9 ms of latency. Power is two AA cells or a BA 70 pack, and the unit weighs about 163 g.
- Dimensions108 x 42 mm
- Input voltage~ 2.0 - 4.35 V
- Input current< 300 mA / (without record and P48)
- Audio output power< 2 dBV max. (high level) / < 4 dBU max (high level)
- Output power XLRmax. 10 mA
| Audio Link Frequency Ranges (Q1-6) | 470.2 - 526 MHz |
|---|---|
| Audio Link Frequency Ranges (R1-6) | 520 - 576 MHz |
| Audio Link Frequency Ranges (R4-9) | 552 - 607.8 MHz |
| Bluetooth® Low Energy (BLE) Frequency Range | 2402 - 2480 MHz |
| Audio Frequency Response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Dynamic Range | 134 dB |
| System Latency | 1.9 ms |
| Operating Temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Relative Humidity | 5 - 95 % (non-condensing) |
| Input Voltage | ~ 2.0 - 4.35 V |
| Input Current | < 300 mA / (without record and P48) |
| Power Supply | 2x AA batteries 1.5 V or BA 70 rechargeable battery pack |
| Transmit Power | Audio link: 10 mW ERP; BLE: max. 10 mW EIRP |
| Audio Output Power | < 2 dBV max. (high level) / < 4 dBU max (high level) |
| Output Power | Max. 10 mA |
| Dimensions | 108 x 42 mm |
| Weight (without batteries) | Ca. 163 g (0.36 lbs) |
| Source | Spec sheet (PDF) on sennheiser.com |

- 2 x AA Battery
- Quick guide
