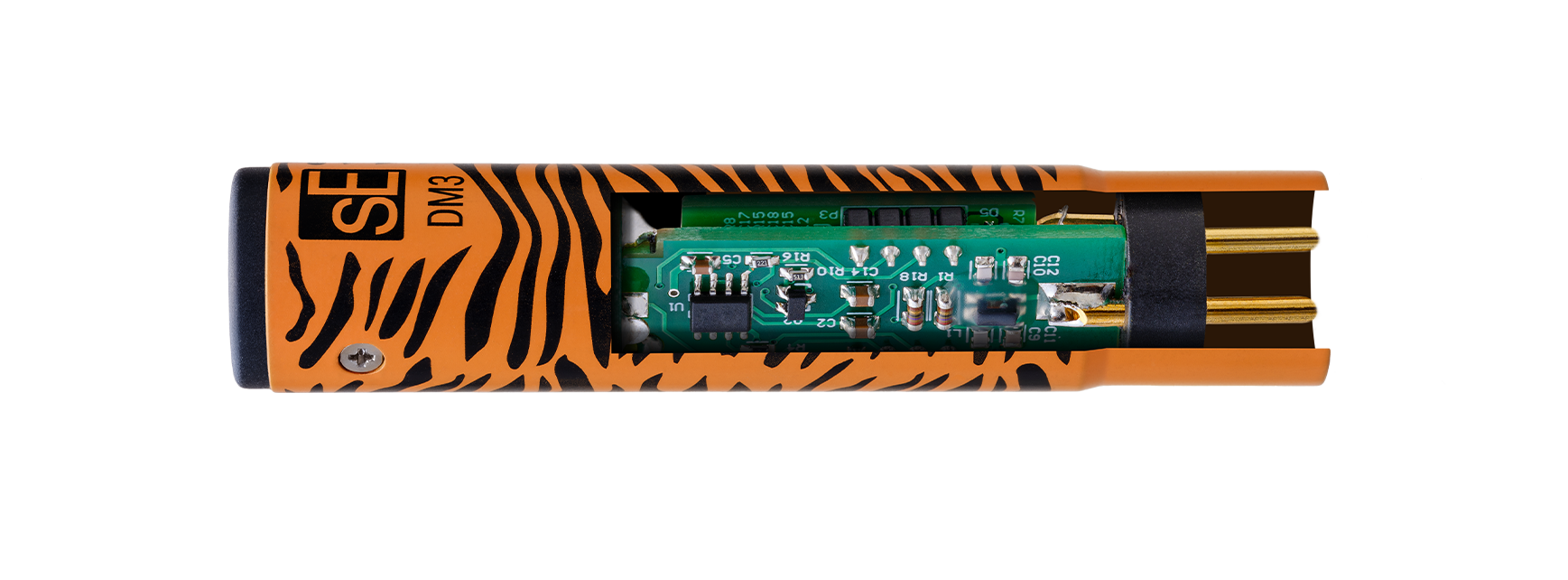

sE Electronics DM3 Active Inline DI Box
The DM3 is a direct box that is not a box. It takes a 1/4 inch TRS jack from an instrument or a line source at one end and delivers a balanced 3-pin XLR at the other, in a 20 mm barrel that hangs off the cable instead of taking up floor space next to the pedals.
Three input settings accept up to 19, 34 or 49 dBV, so it handles a passive bass pickup and a speaker-level tap with the same device, and output noise sits at 1 microvolt. It is phantom powered at 48 V and draws 3.8 mA. A screwdriver for the setting switch, a keychain and the manual are in the box.
| Type | Active inline DI box |
|---|---|
| Input | 6.3 mm (1/4 in) TRS jack |
| Output | 3-pin male XLR |
| Frequency Range | 10 Hz - 120 kHz (-0.3 dB) |
| Max Input Level | 19 / 34 / 49 dBV (9.0 / 51 / 285 V) at 0.5% THD |
| Output Noise Level | 1 uV |
| Powering | 48 V phantom (IEC 61938), 3.8 mA |
| Dimensions | 20 mm x 95.5 mm, 70 g |
