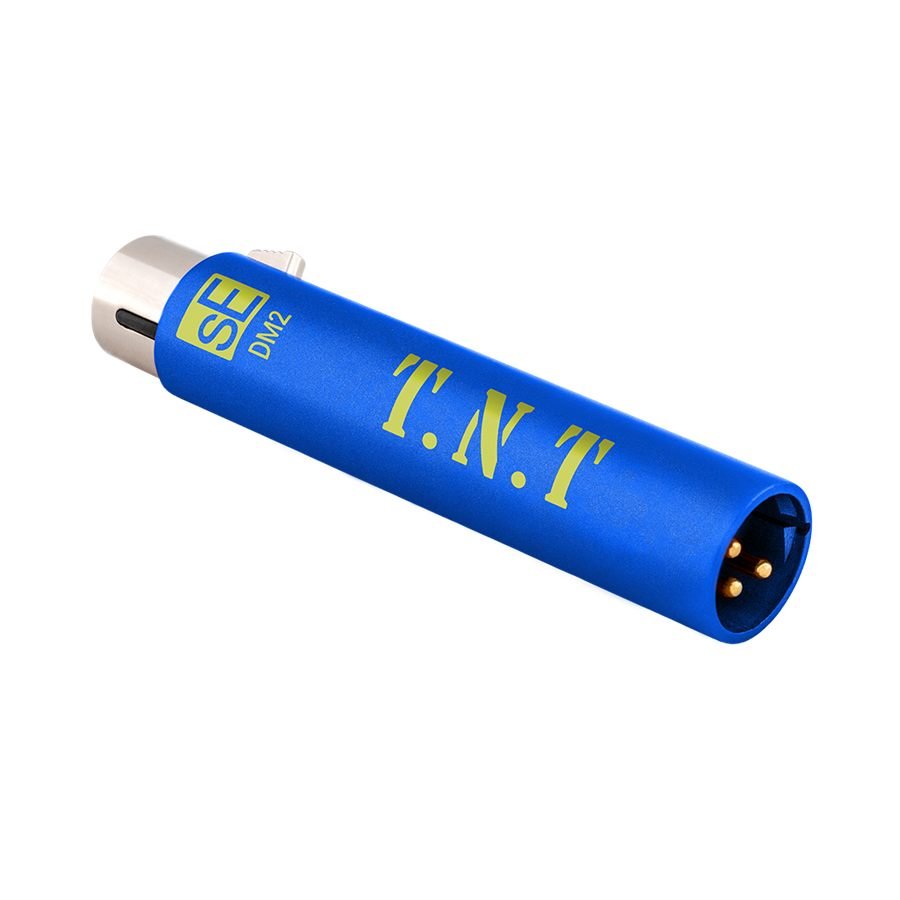

sE Electronics DM2 TNT Switchable Inline Active Preamp
The DM2 TNT is the DM1 with a choice. A switch selects 15 or 30 dB of gain, so the same device can lift a passive ribbon that needs everything it can get, or add a modest boost to a dynamic without pushing the console preamp into the mud. Output noise is 1 microvolt at 15 dB and 6.6 at 30 dB.
Like the DM1 it runs on 48 V phantom, drawing 3.1 mA, and passes 10 Hz to 120 kHz at -0.3 dB. It sits inline between the microphone and the cable in a 19 mm barrel with male and female XLR, and weighs 80 g.
| Type | Switchable inline active microphone preamp |
|---|---|
| Gain | 15 dB / 30 dB, switchable |
| Frequency Range | 10 Hz - 120 kHz (-0.3 dB) |
| Output Noise Level | 1 uV at 15 dB / 6.6 uV at 30 dB |
| Max Output Level | 9.5 dBV (3.0 V) at 0.5% THD |
| Impedance | 135 Ohms, recommended load >1k Ohms |
| Powering | 48 V phantom (IEC 61938), 3.1 mA |
| Dimensions | 19 mm x 96 mm barrel, 80 g |
