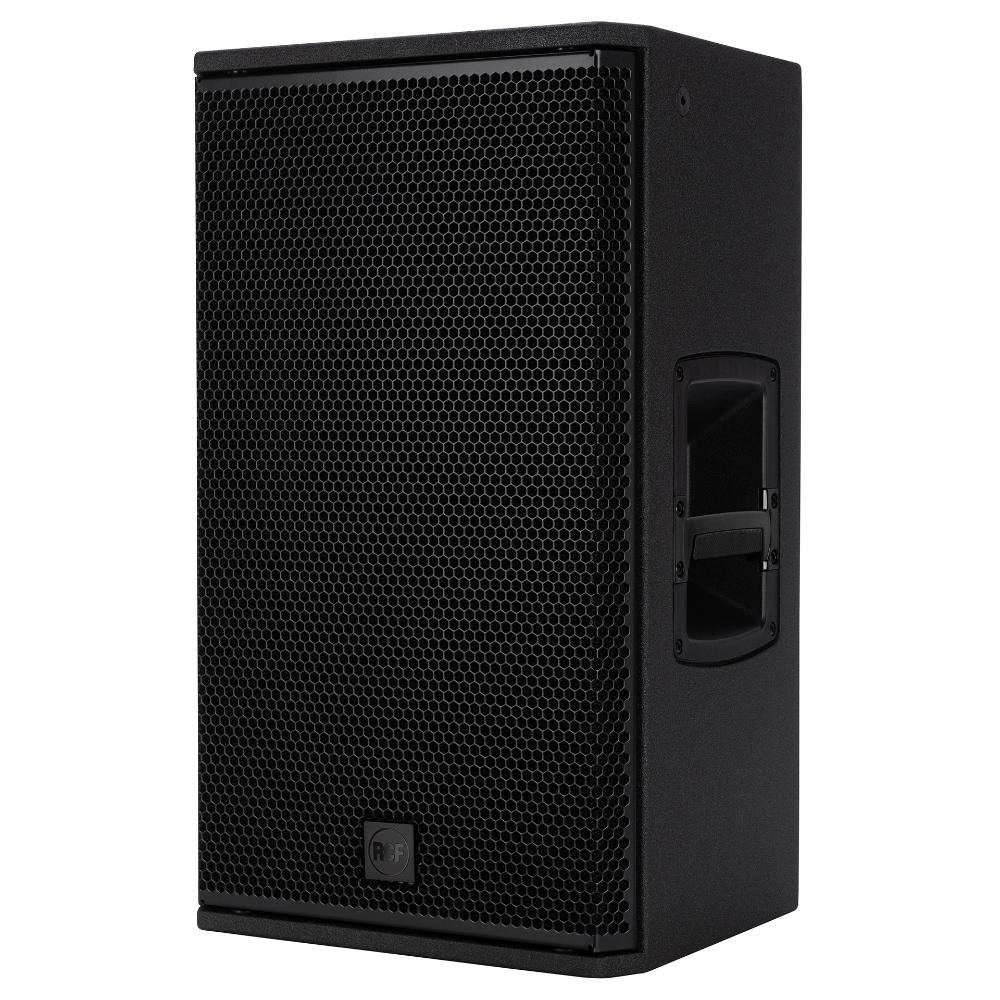

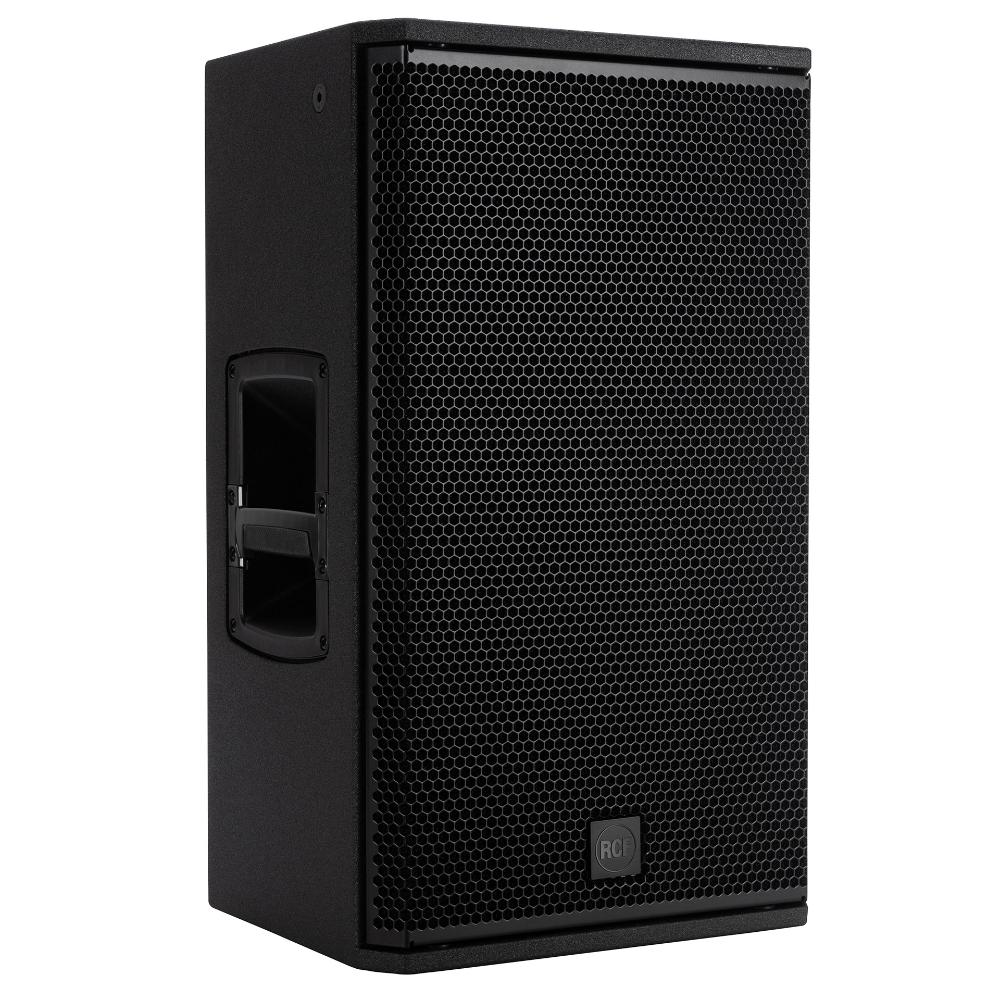

RCF NX 912-A Active Speaker
The NX 912-A steps up to a 12-inch woofer behind the same 1.75-inch compression driver used across the NX-A line, holding a coherent 100 by 60 degree pattern at up to 130 dB SPL. A 2100W Class-D bi-amp (1400W LF, 700W HF) covers 50 Hz to 20 kHz for solo acts, bands and DJs who need more low end from a single box.

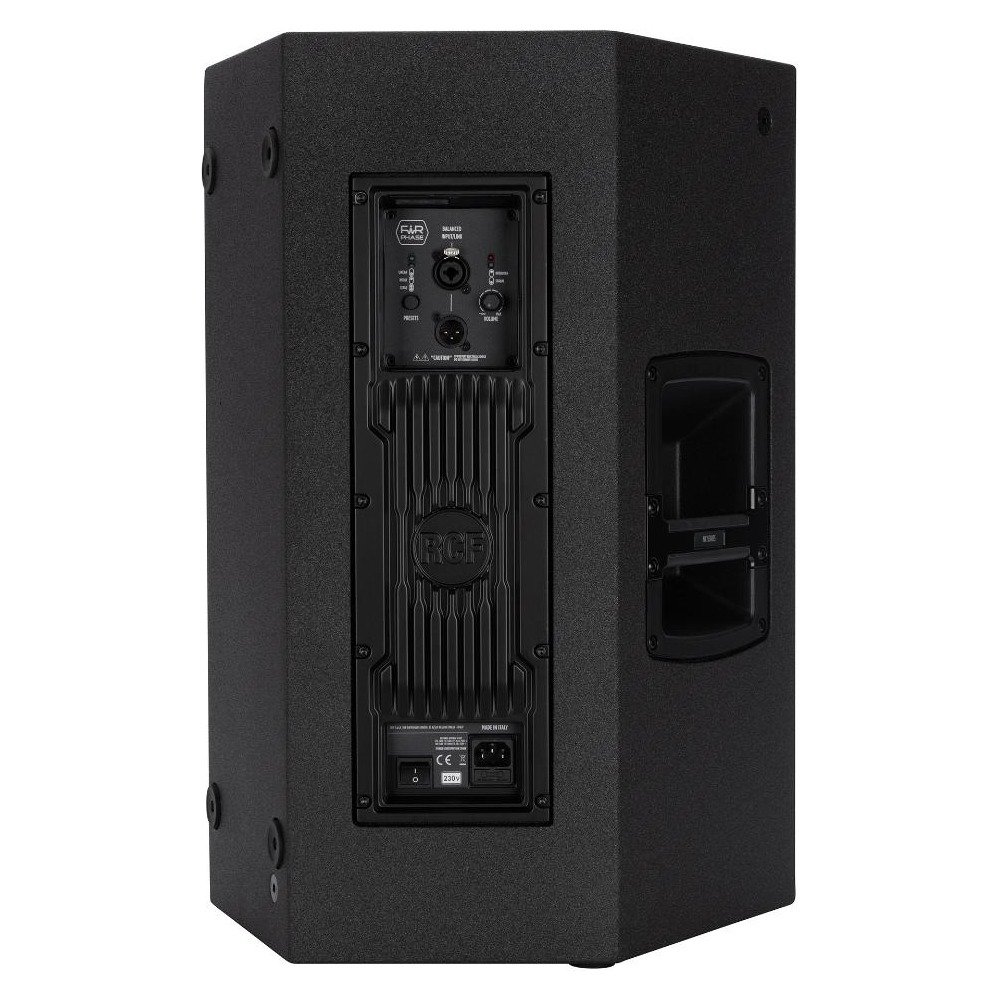

FiRPHASE and Bass Motion Control DSP keep the response flat and the phase coherent under load, and the tour-ready all-wood cabinet works stand-alone, as a satellite with a subwoofer, as a stage monitor, or flown. XLR and jack inputs accept balanced or unbalanced sources, and an XLR output loops to a second cabinet or a sub.
| Configuration | Two-way active speaker |
|---|---|
| Woofer | 12" (2.5" voice coil) |
| Compression Driver | 1.75" (1.0" throat) |
| Amplifier Power | 2100W peak total (1400W LF + 700W HF) |
| Max SPL | 130 dB @ 1m |
| Frequency Response | 50 - 20,000 Hz |
| Coverage | 100 x 60 degrees |
| Connectors | XLR/jack input, XLR output |
| Weight | 20.8 kg (45.86 lbs) |
