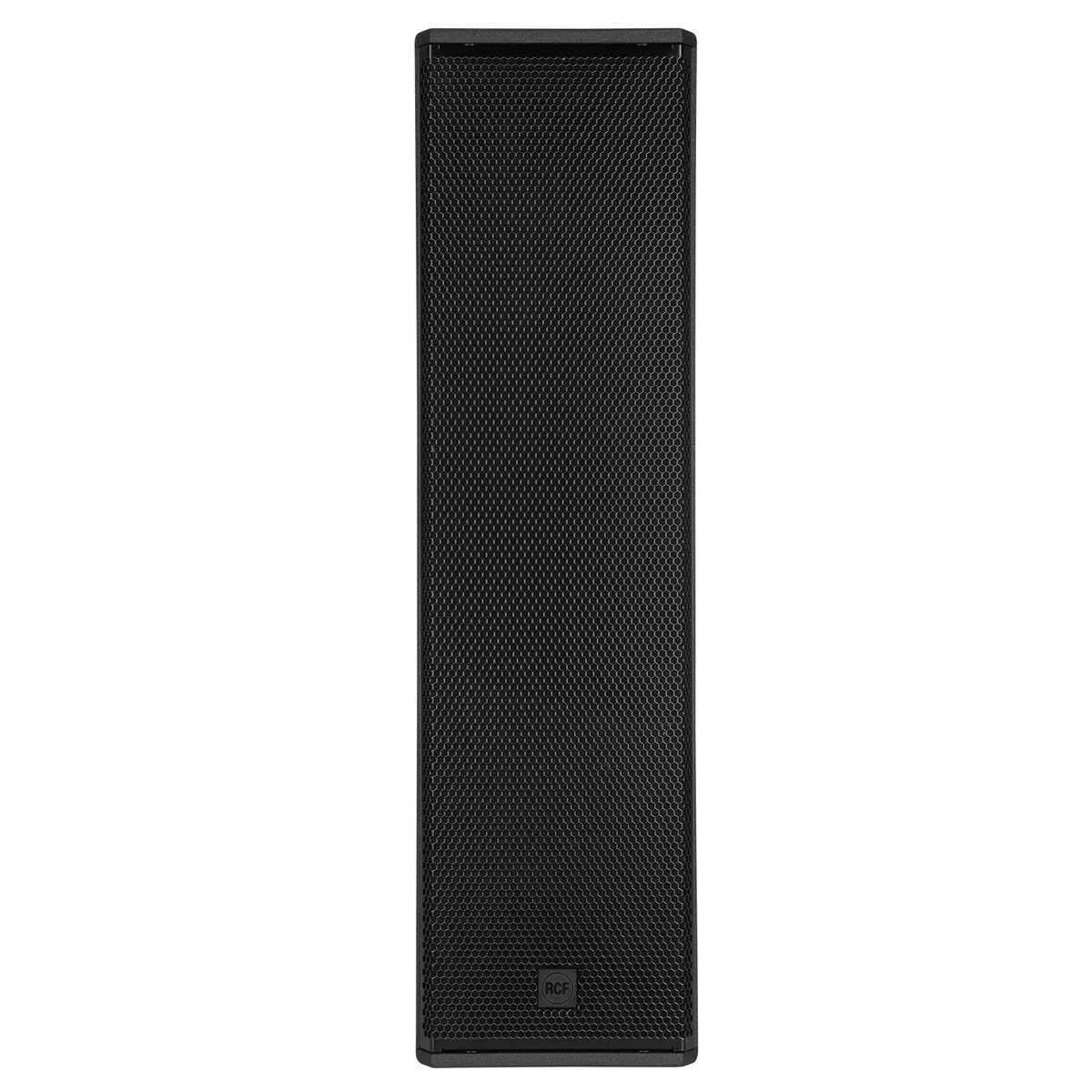

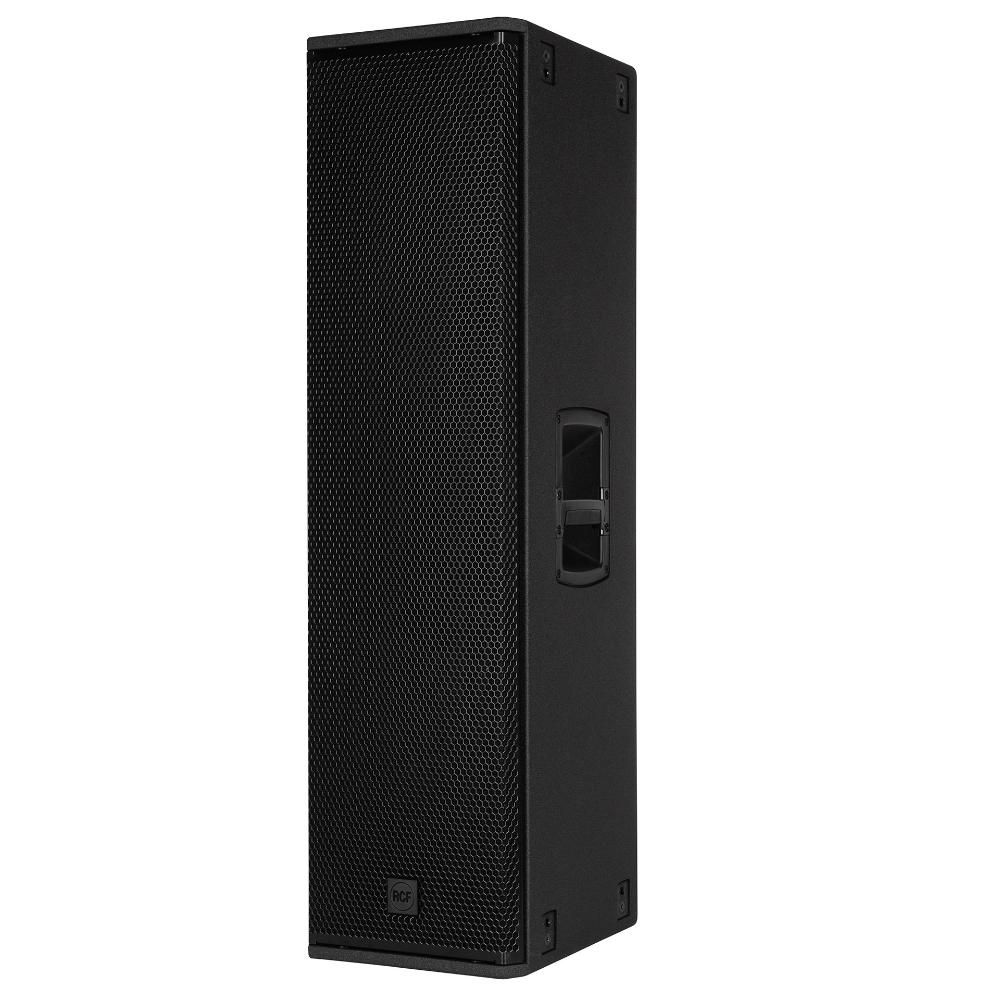

RCF NXL 44-A MK2 Line Array Column

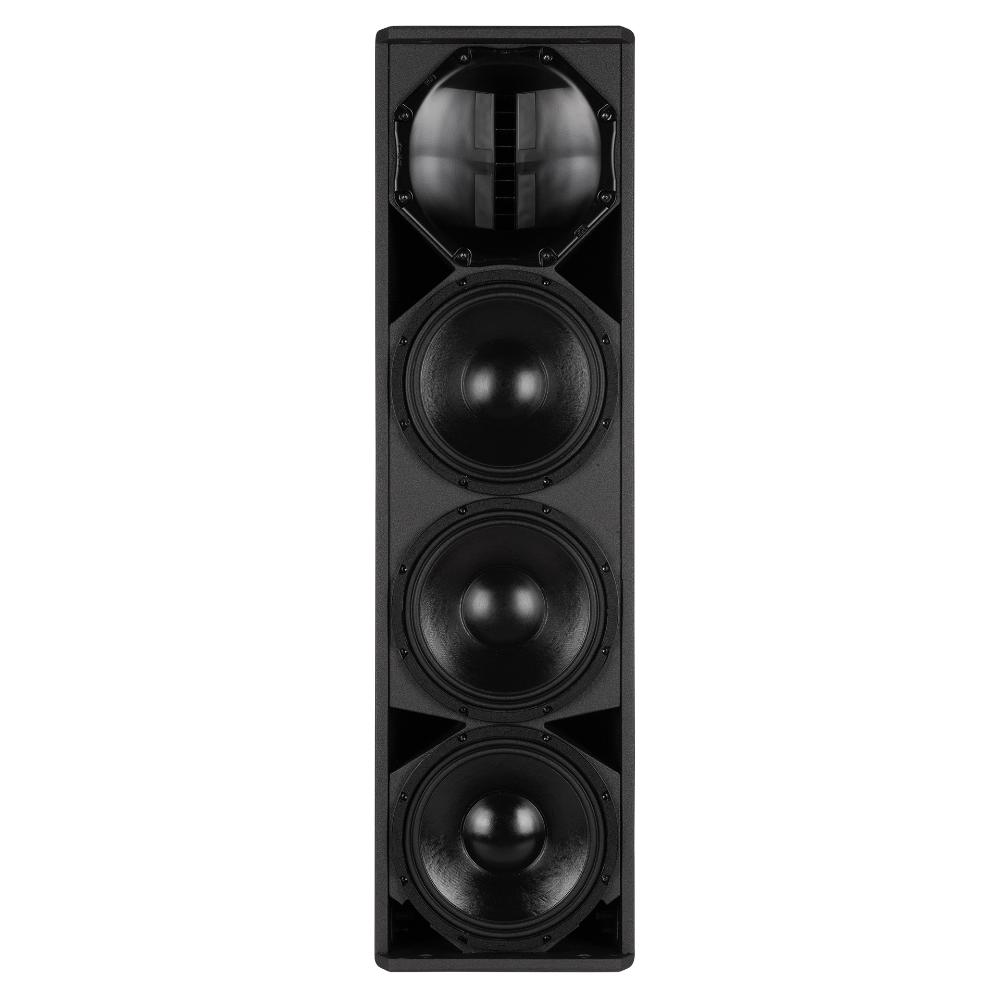

The NXL 44-A MK2 steps up to three 10-inch neodymium woofers behind a 1.4-inch neodymium compression driver, built for bands, DJs, clubs and rental companies that need more low-end output and a tighter vertical pattern than the 24-A MK2. A 2100W peak Class-D amplifier (1400W LF, 700W HF) reaches 135 dB SPL across 45 Hz to 20 kHz through an 800 Hz crossover, with a 100 by 25 degree pattern that throws sound further down a room.

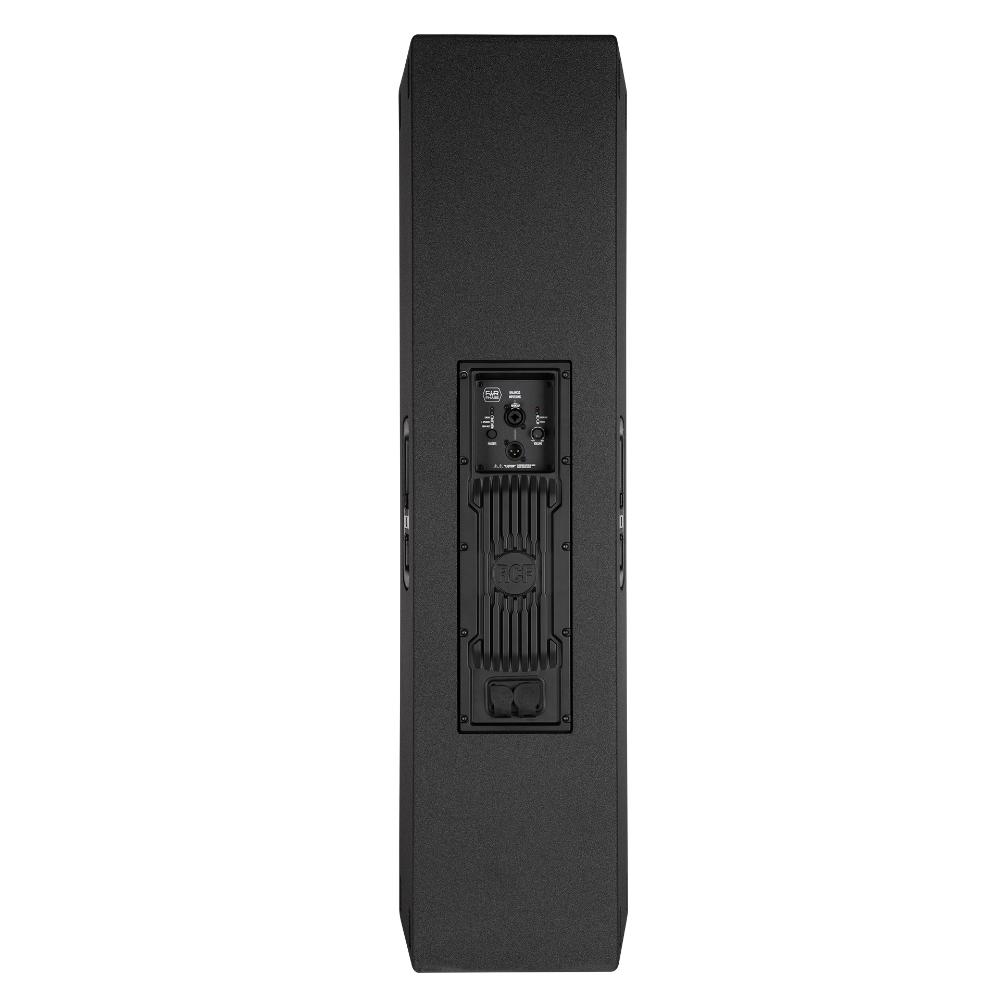

IP-rated powerCON TRUE1 TOP connectors handle power in/out, and a combo XLR/jack input covers audio. At 33.4 kg it is the heaviest module in the NXL series, built for larger rental rigs and permanent installs that need real distance.
| Configuration | Line array column |
|---|---|
| LF Drivers | 3 x 10" neodymium (2.5" voice coil) |
| HF Driver | 1.4" neodymium (3.0" voice coil) |
| Amplifier Power | 2100W peak (1400W LF + 700W HF) |
| Max SPL | 135 dB @ 1m |
| Frequency Response | 45 - 20,000 Hz |
| Coverage | 100 x 25 degrees |
| Connectors | Combo XLR/jack input, IP-rated Powercon TRUE1 TOP in/out |
| Weight | 33.4 kg (73.63 lbs) |
