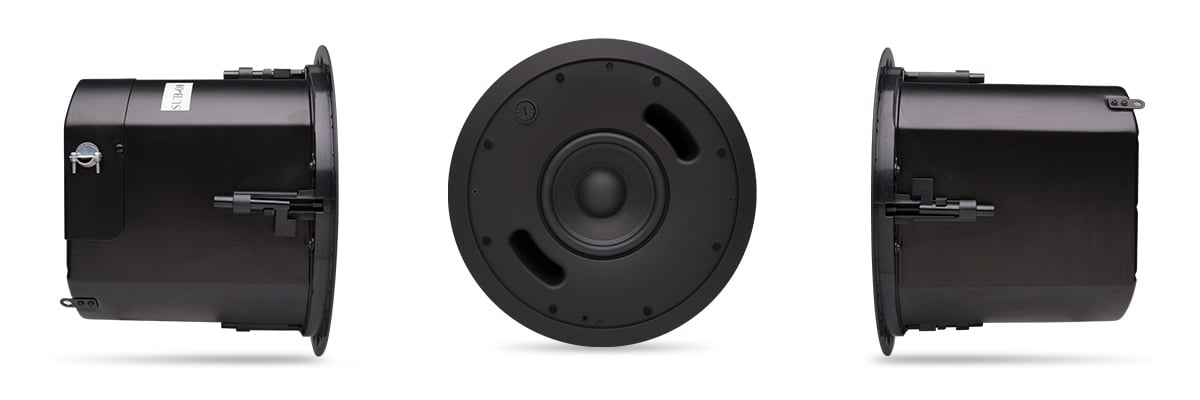

QSC AD-C.SUB AcousticDesign Ceiling Mount Subwoofer
The AD-C.SUB is an in-ceiling subwoofer built to carry bass for a run of AD-C.SAT satellite speakers, keeping the small ceiling satellites free of low-frequency duty in background music systems. It installs through a standard ceiling cutout with a finished trim ring that matches the rest of the AcousticDesign ceiling family.

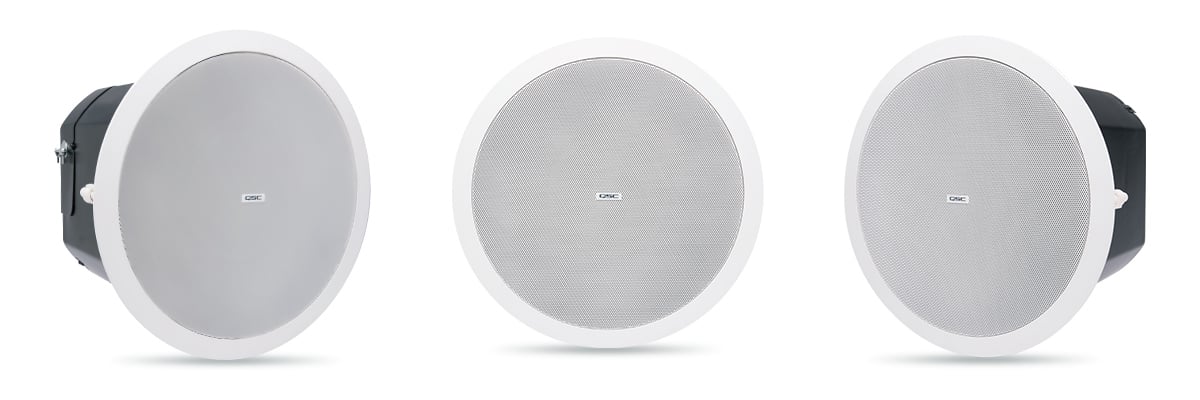

Rated for 100 watts, it is available with black or white trim to match the AD-C.SAT satellites and any adjoining AcousticDesign ceiling speakers on the same job.
| Frequency Range | 45 Hz - 150 Hz |
|---|---|
| Power Rating | 100 W |
| Maximum Peak SPL | 106 dB @ 1M |
| Dimensions | Diameter 13.4 x 10 in (340 x 254 mm) |
| Weight | 19.2 lb (8.7 kg) |
| Mounting | In-ceiling, trim ring |
