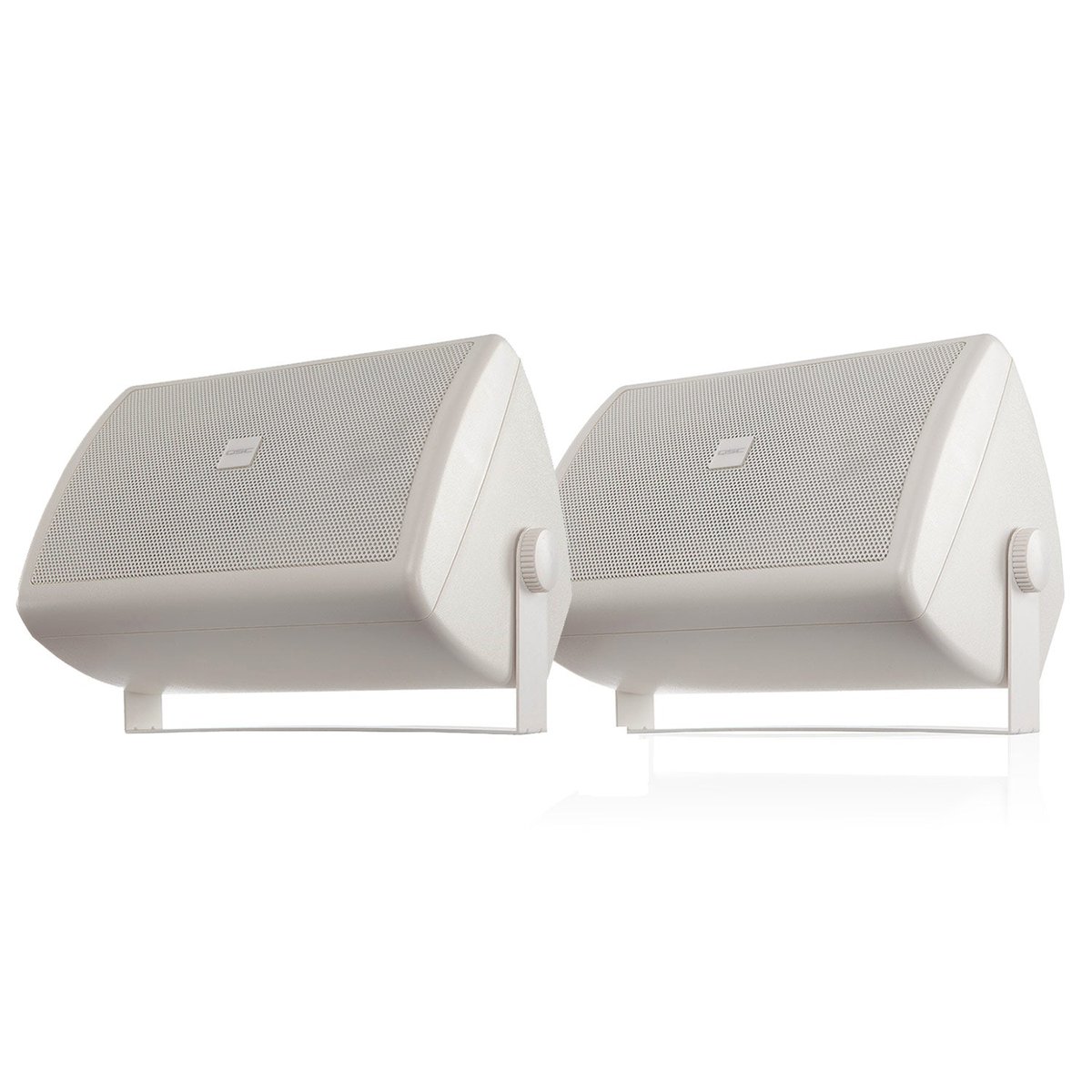

QSC AC-S6T AcousticCoverage Surface Mount Loudspeaker

The AC-S6T pairs a 165 mm polypropylene woofer with a 25 mm aluminum dome tweeter for wide area paging, background music, and distance conferencing reinforcement, with more low-frequency extension than the AC-S4T for larger concourses, healthcare facilities, and transportation terminals. 130 degrees of conical coverage reduces the number of fixtures needed for even coverage in close proximity.

A 30-watt low-saturation 70/100V transformer with an 8 ohm bypass runs off a rear-mounted rotary selector, and the 4-pole Euroblock connector accepts four 18 AWG pairs for loop-through wiring. The UV-treated ABS enclosure mounts on the included yoke via brass inserts and thumb bolts, with a rotatable logo badge for either horizontal or vertical installs.
