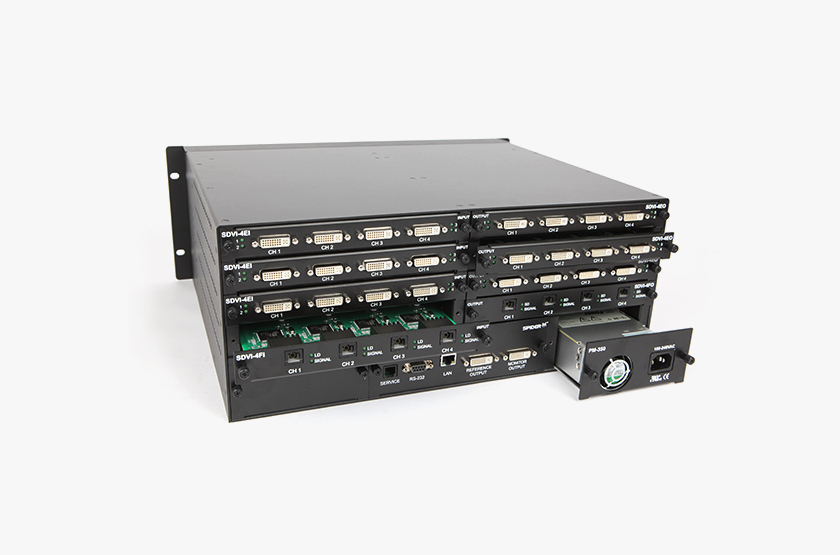

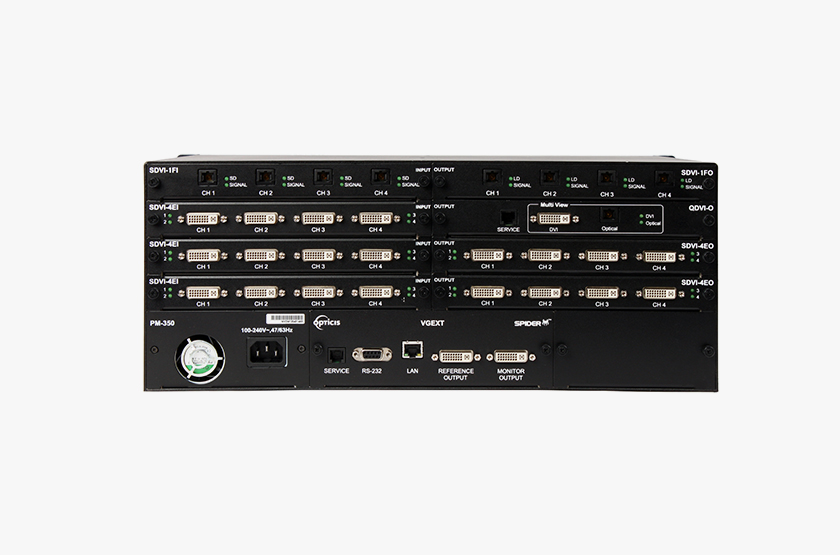

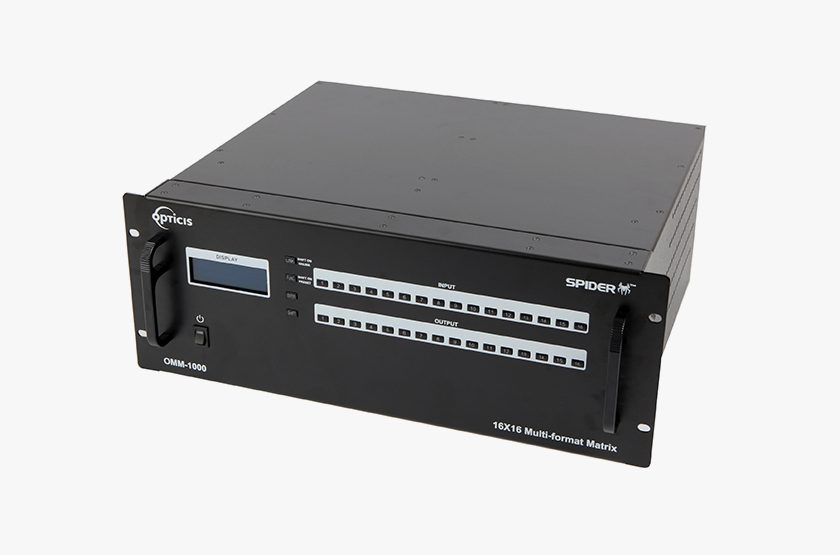

Opticis OMM-1000 16x16 Optical Modular Matrix

The OMM-1000 is Opticis's 16x16 Optical Modular Matrix. Supports DDC/HDCP. (Electrical DVI and HDMI cards only).

In the box: Input output cards (Option);; SDVI; 4EI: 4 ports electrical Single link DVI input card;; SDVI; 4EO: 4 ports electrical Single link DVI output card;; DDVI; 2EI: 2 ports electrical Dual link DVI input card;; DDVI; 2EO: 2 ports electrical Dual link DVI output card;; HDMI; 4EI: 4 ports electrical HDMI input card;; HDMI; 4EO: 4 ports electrical HDMI output card;; SDI; 4EI: 4 ports electrical SDI input card;; SDI; 4EO: 4 ports electrical SDI output card;; DP1; 4EI: 4 ports electrical DisplayPort input card;; DP1; 4EO: 4 ports electrical DisplayPort output card;; SDVI; 1FI: 4 ports 1 fiber optical DVI input card;; SDVI; 1FO: 4ports 1 fiber optical DVI output card;; QDVI; O: Multi; viewer card;; Firmware download cable: 1 EA;; RS; 232 cable (Straight type): 1 EA;; PC software CD: 1 EA. Provides various control methods (RS-232, TCP/IP, WEB, Key input). Handles DVI signal up to 1Km over Multi-mode fiber with fiber optic cards, SDVI-1FI, SDVI-1FO. Offers EDID management function. Provides wide operating temperature range, 10-40 degree.
