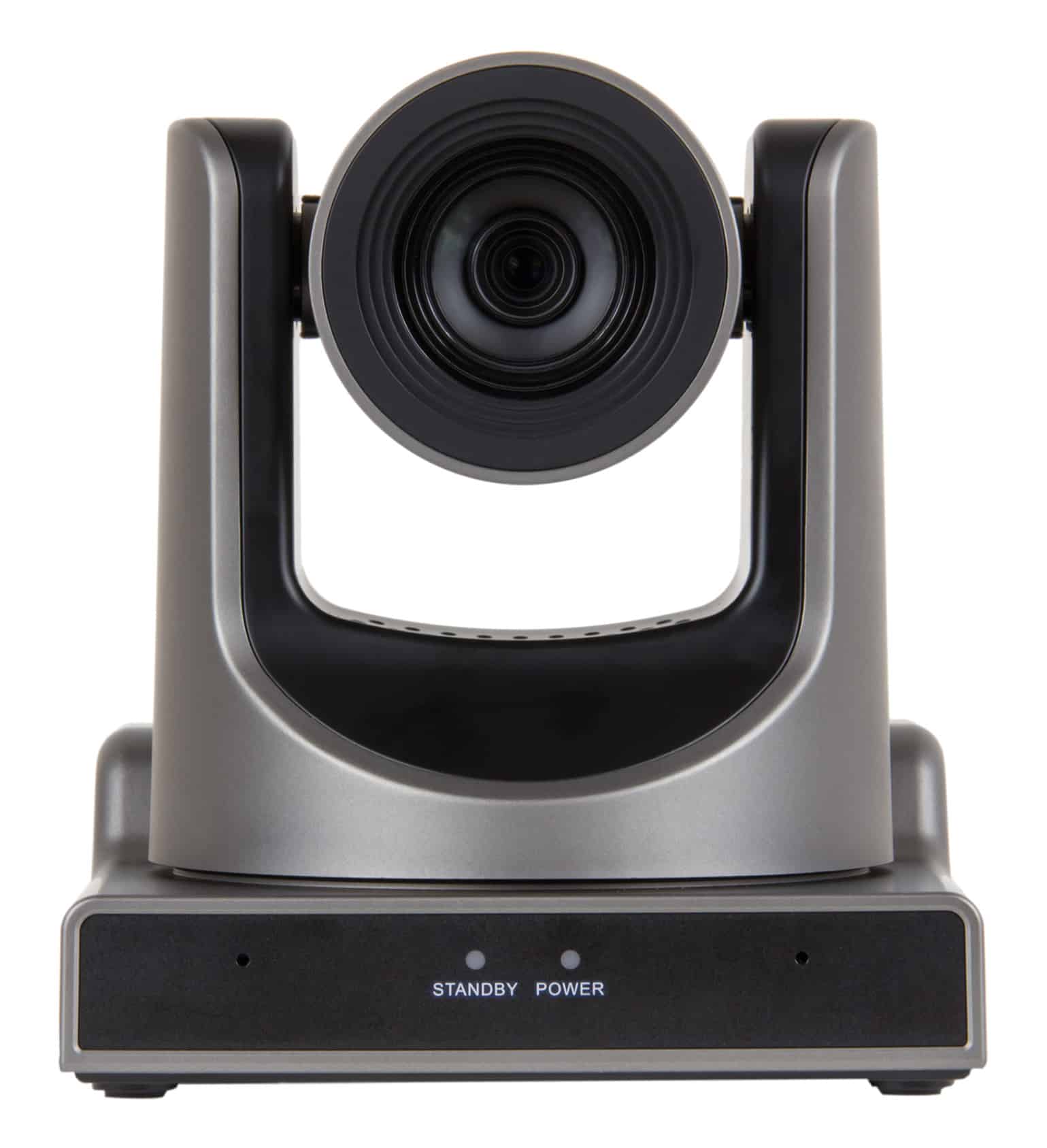

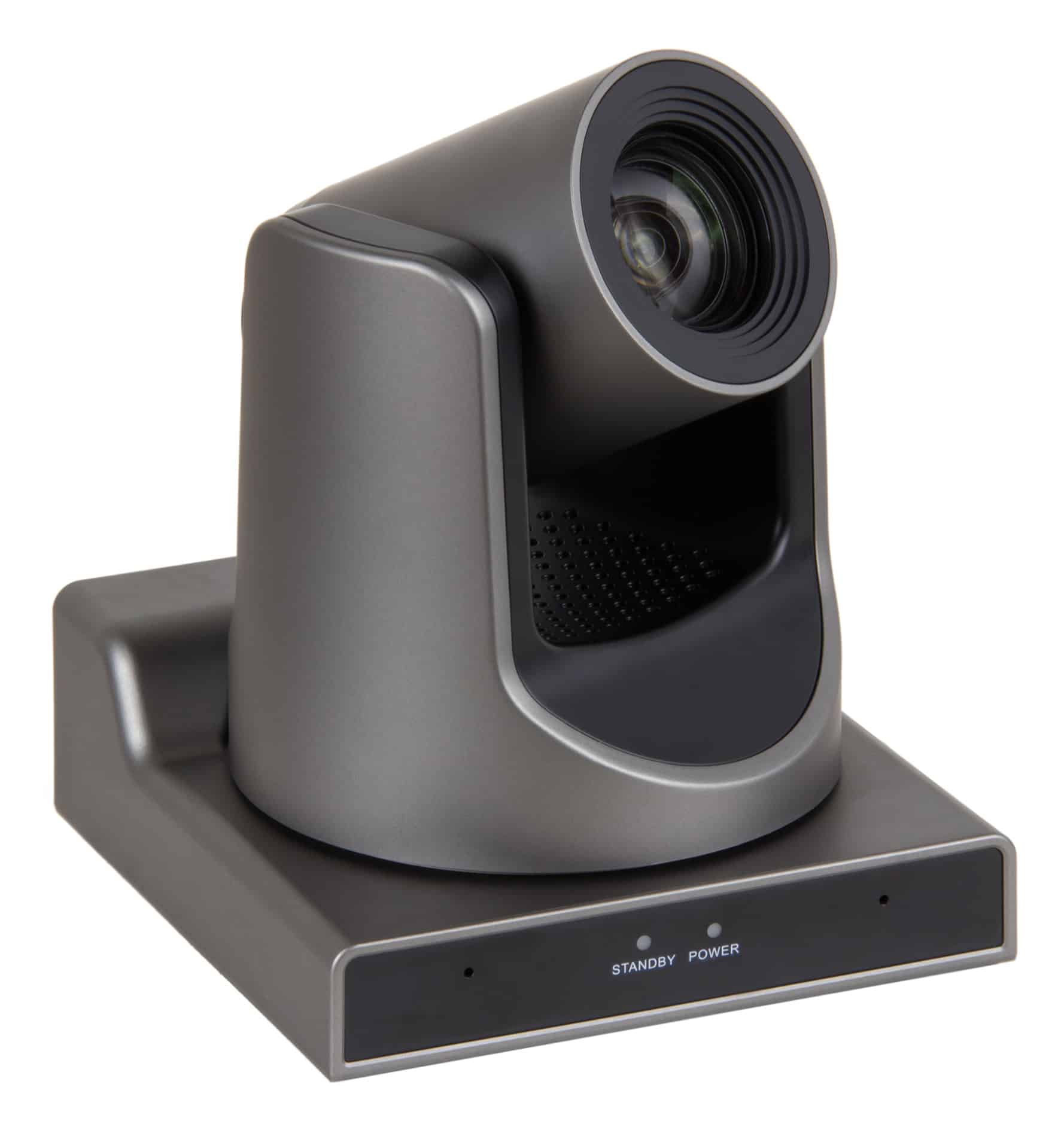

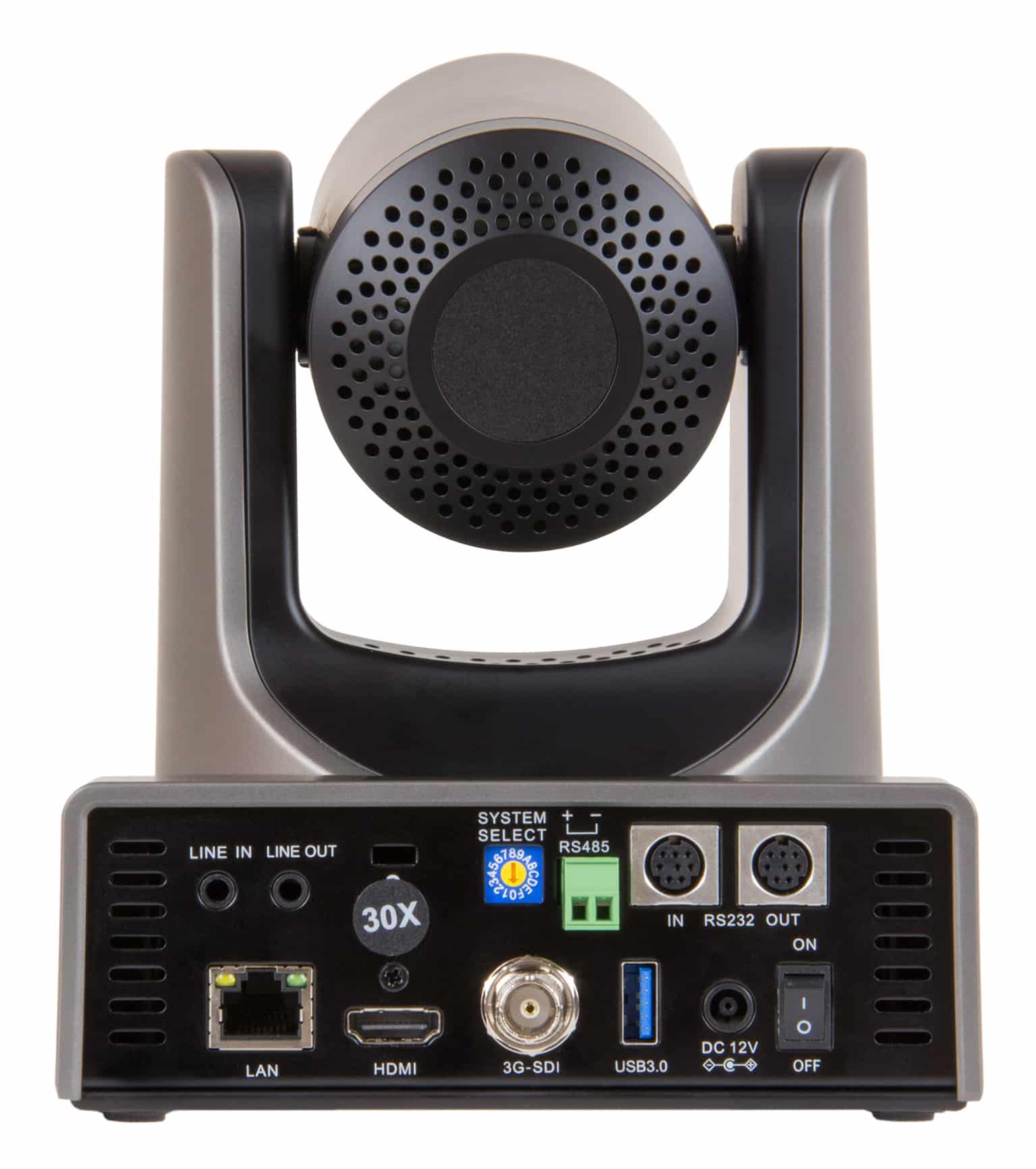

MuxLab 500790-NDI and 500790-V2 PTZ Camera, 30X Zoom, PoE
MuxLab's 500790-NDI and 500790-V2 are full HD 1080p pan, tilt and zoom cameras with a 30x optical zoom (f4.42 to 132.6mm, F1.8 to F2.8) and a 60.7 degree horizontal field of view at the wide end. An AI algorithm handles body tracking, so a presenter stays framed without an operator, and the camera is managed over IP or RS-232.
Uncompressed video goes out on HDMI, 3G-SDI and USB 3.0 for local capture, while H.264/H.265 streams go out over the network to YouTube, Facebook, Wowza, OBS or Wirecast. One PoE (802.3af) cable can carry power and the stream. The 500790-NDI adds Full NDI and NDI|HX; the 500790-V2 streams over RTSP, RTMP, SRT and the other standard IP protocols without NDI.
- Dimensions146 x 169 x 168 mm
- OutputsOne (1) HDMI 1.3, one (1) 3G-SDI (BNC)
- SensorCMOS, 2.07 megapixels effective
- Video Formats1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50
- Power12V DC or PoE (802.3af), 12W
| Models | 500790- (USB/NDI/IP), 500790-V2 (USB/IP) |
|---|---|
| Sensor | CMOS, 2.07 megapixels effective |
| Lens | 30x optical zoom, f4.42mm to 132.6mm, F1.8 to F2.8 |
| Horizontal Angle of View | 60.7 to 2.28 degrees |
| Video Formats | 1080p60/59.94/50/30/29.97/25, 1080i60/59.94/50, 720p60/59.94/50 |
| Outputs | One (1) 1.3, one (1) 3G- (BNC), one (1) USB 3.0 Type-A, one (1) RJ45 10/100/1000 Ethernet with |
| Streaming Protocols | 500790-NDI: Full NDI, NDI|HX, TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, SRT. 500790-V2: the same without NDI |
| Control | IP; RS-232 in and out (8-pin mini DIN); RS-485 (VISCA/Pelco-D/Pelco-P) |
| Pan / Tilt | Pan +/-170 degrees, tilt -30 to +90 degrees, 255 presets |
| Audio | Built-in microphone array; 3.5mm line in and line out |
| Power | 12V DC or PoE (802.3af), 12W |
| Dimensions | 146 x 169 x 168 mm |
| Weight | 1.5 kg (net) |
| Warranty | 2 years |
