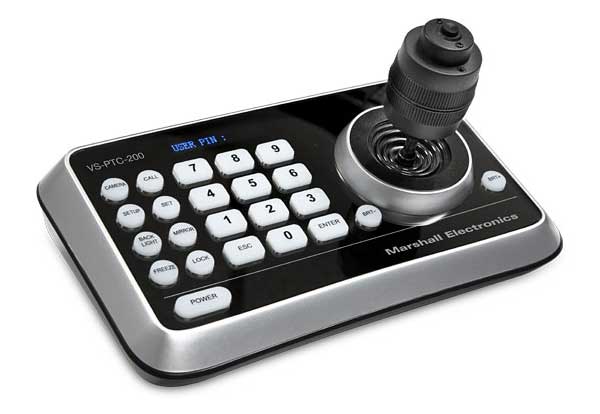

Marshall VS-PTC-200 PTZ Camera Controller

Marshall's VS-PTC-200 Compact PTZ Controller is designed and built to integrate seamlessly with Marshall CV620 Broadcast PTZ Cameras. This PTZ controller will operate Pan, Tilt, Zoom, and Focus simultaneously with the joystick as well as adjustment control over Brightness, Preset/Recall locations, Flip and Mirror, Backlight Compensation, Freeze Frame, Manual Focus and other adjustments on the keypad buttons.

Features

• 4D Joystick allows simultaneous control over Pan, Tilt, Zoom and Focus
• 128 Preset locations with smooth adjustable transition speeds
• One touch controls over Brightness, Back Light, Mirror/Flip, Freeze Capture
• Full Duplex RS-232 & RS-422 Communication Interface
• VISCA and PELCO Protocols
• Bright OLED Display with Auto Backlight Keys
• Can operate 1~255 cameras (CV620)
• Multi-level protection from unauthorized operation
• Compact Design - Dims 7.87"(L) x 4.72"(W) x 4.06")
• 12V DC (less then 2W)
• 0.5kg (1.1lb)

Click here to view the VS-PTC-200 user manual.
