Marshall CV620 BI2
The CV620-BI2 is the black IP version of Marshall's workhorse 20x PTZ. A 2 megapixel Full-HD Sony 1/2.8-inch sensor feeds a 20x optical zoom that runs from 5.3mm to 110mm, opening at a 60 degree horizontal angle of view, and the head pans across 340 degrees and tilts through 120 degrees at selectable speeds. It is built for broadcast, live events, corporate rooms, and worship spaces that need one camera to reach the back of the house and still frame a wide two-shot.

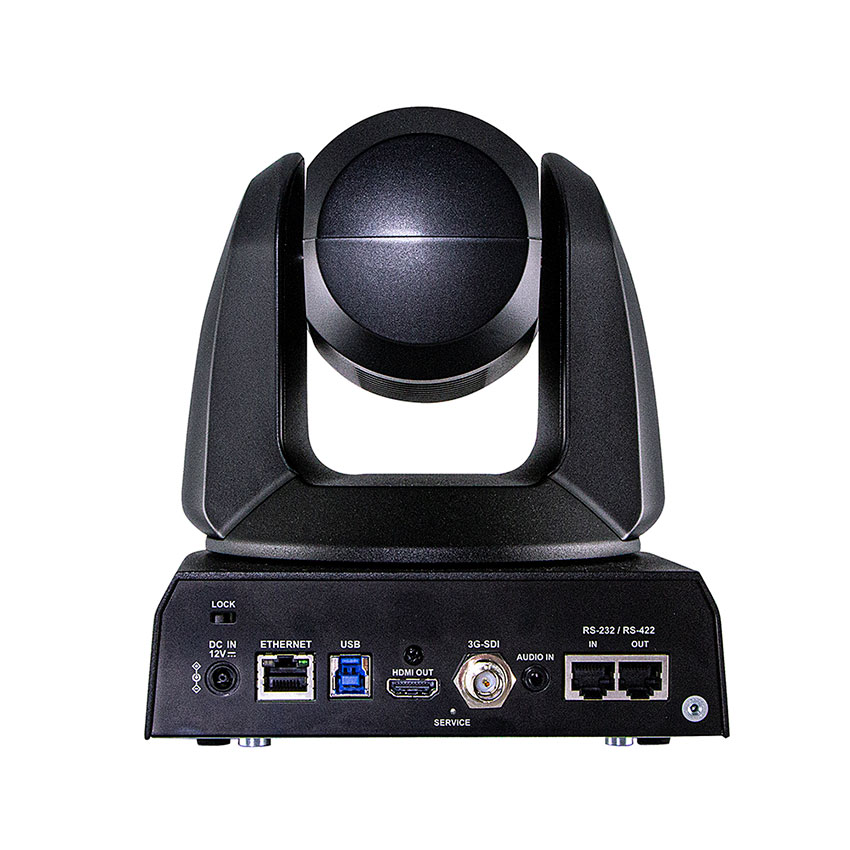

Four outputs run at once: 3G-SDI, HDMI, USB, and IP with H.264 encoding for streaming and recording over SRT, RTMP, RTMPS, and MPEG-TS, among other protocols. A 3.5mm TRS stereo input embeds mic or line audio, and the camera runs on the included 12V supply (16W max) or PoE+ (18W max).
| Sensor | 2 Megapixel Full-HD Sony 1/2.8-inch |
|---|---|
| Optical Zoom | 20x (5.3-110mm), 60 degrees horizontal AOV |
| Pan / Tilt | 340 degrees pan, 120 degrees tilt |
| Video Formats | 1920x1080p, 1920x1080i, 1280x720p up to 60 fps |
| Outputs | 3G-SDI, HDMI, USB, and IP (H.264) |
| Audio | 3.5mm TRS stereo (Mic/Line) |
| Power | 12V (16W max) or PoE+ (18W max) |
| Finish | Black |
