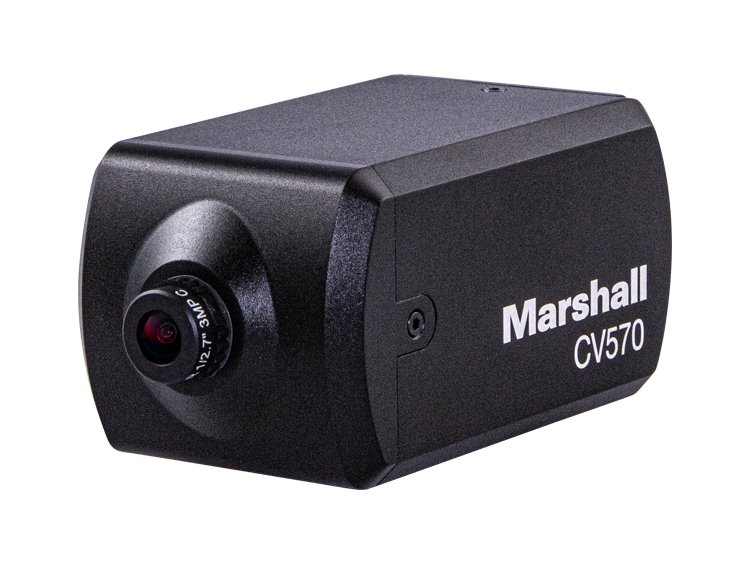

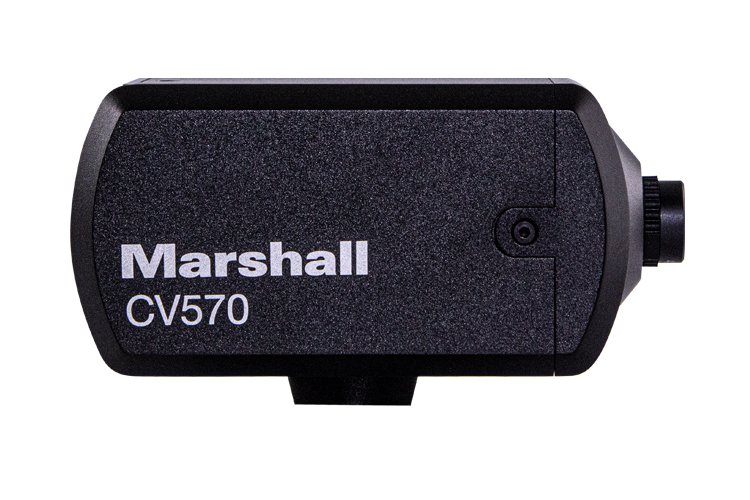

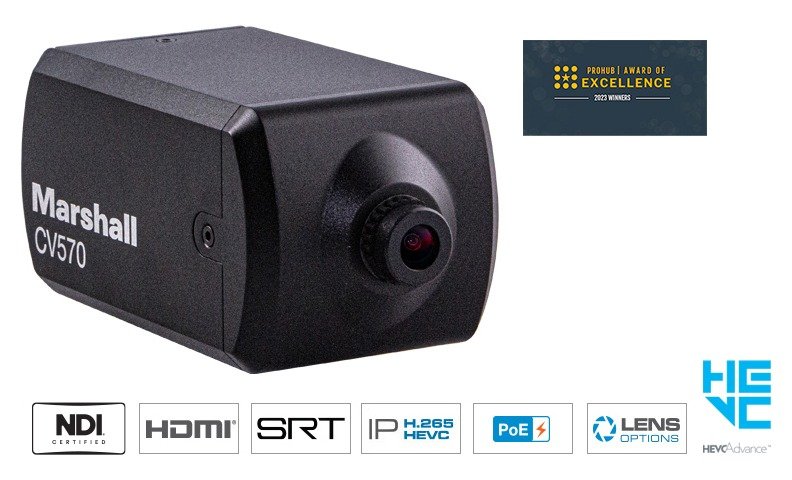

Marshall Electronics CV570 Miniature POV Camera

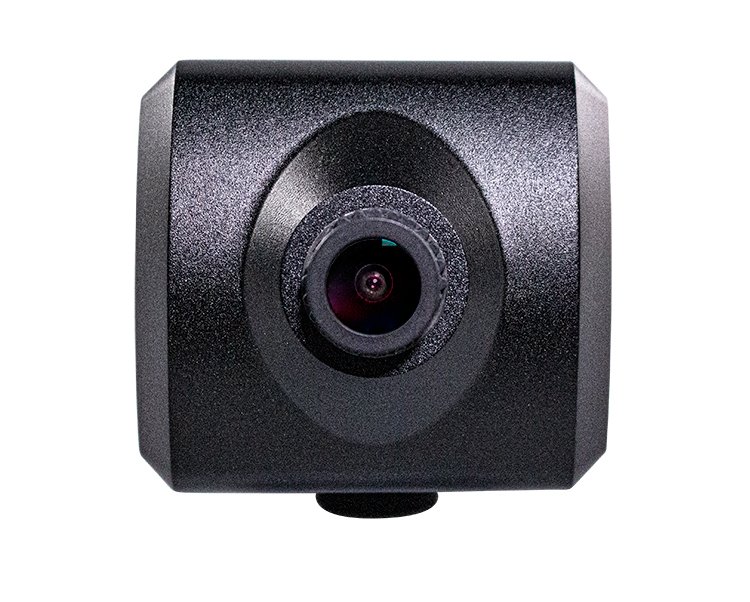

The CV570 is a miniature point-of-view camera in a durable aluminum body, small enough to tuck into a set, a lectern, or a tight rig where a full camera will not fit. It uses a 2.13 megapixel Sony sensor with larger pixels and a square pixel array, and it ships with an interchangeable 4.0mm M12 lens that gives an 81 degree horizontal angle of view. It captures HD at up to 1080p, with 1080i and 720p options.

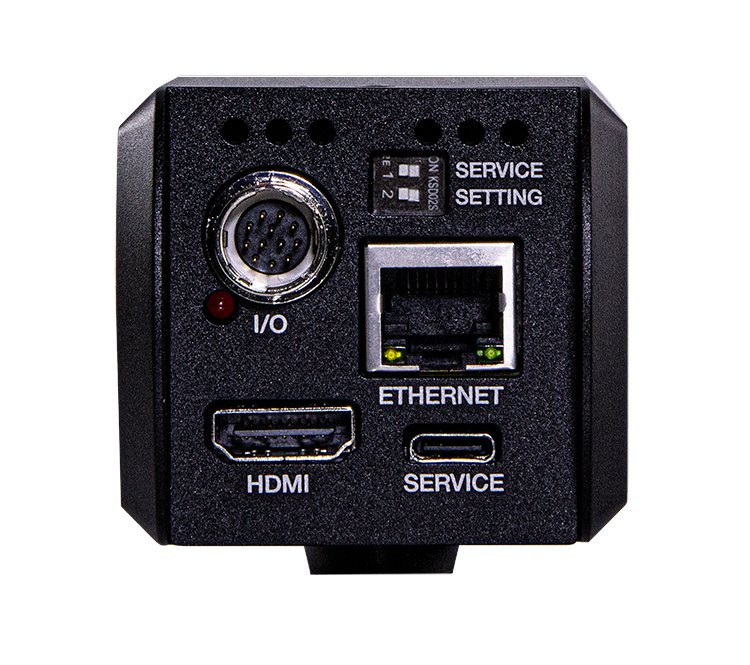

It delivers 10-bit 4:2:2 video over HDMI and over standard IP, supporting NDI HX3 plus RTSP, RTMP, and SRT with H.264 and HEVC. One Ethernet cable can carry PoE power along with video, audio, and control, and a 3.5mm line input embeds audio (mic bias 1.7V, up to 3mA). Draw is about 6W, and it runs on 7 to 15V or PoE. Cameras adjust and color-match over VISCA over IP, NDI Tools, or the web page.
