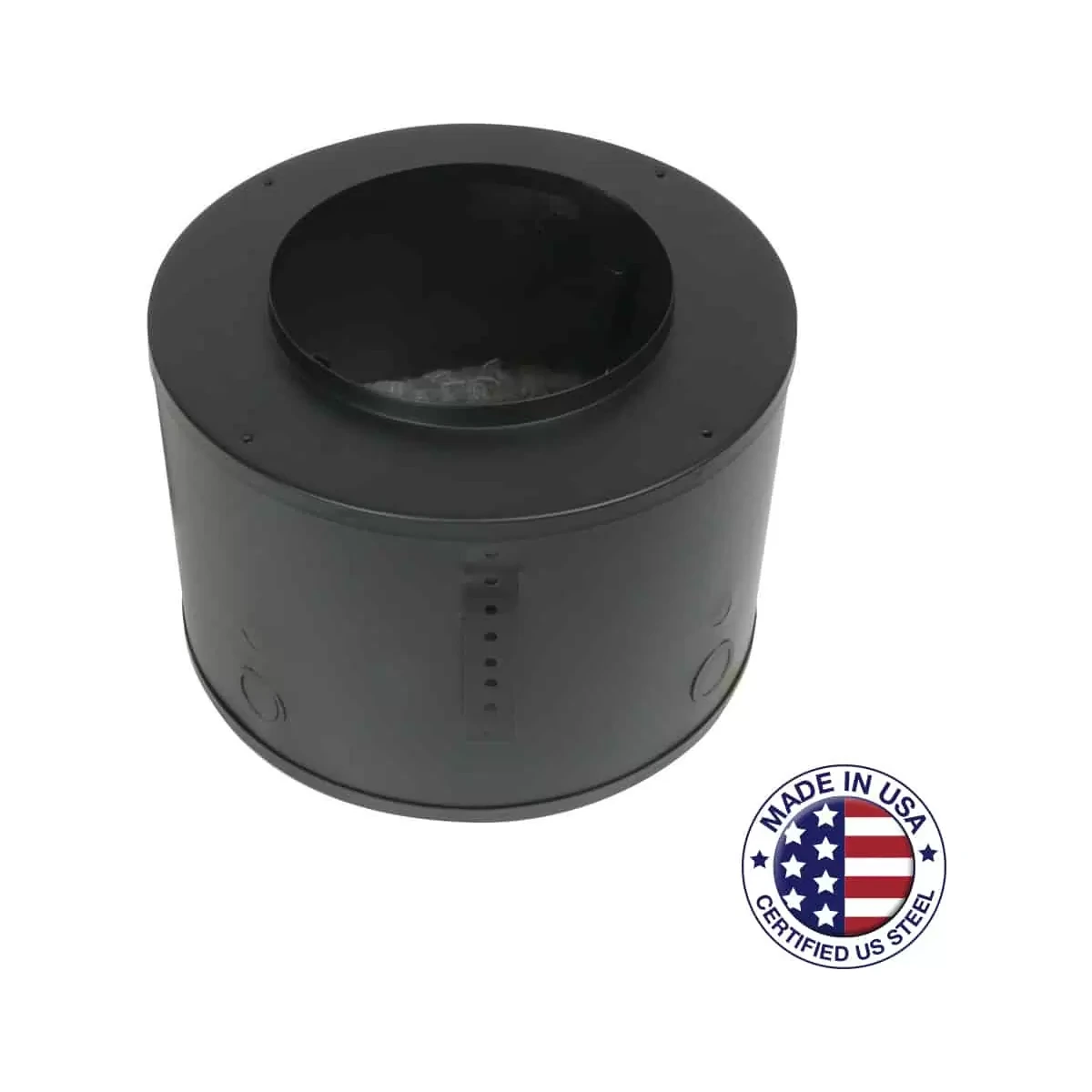

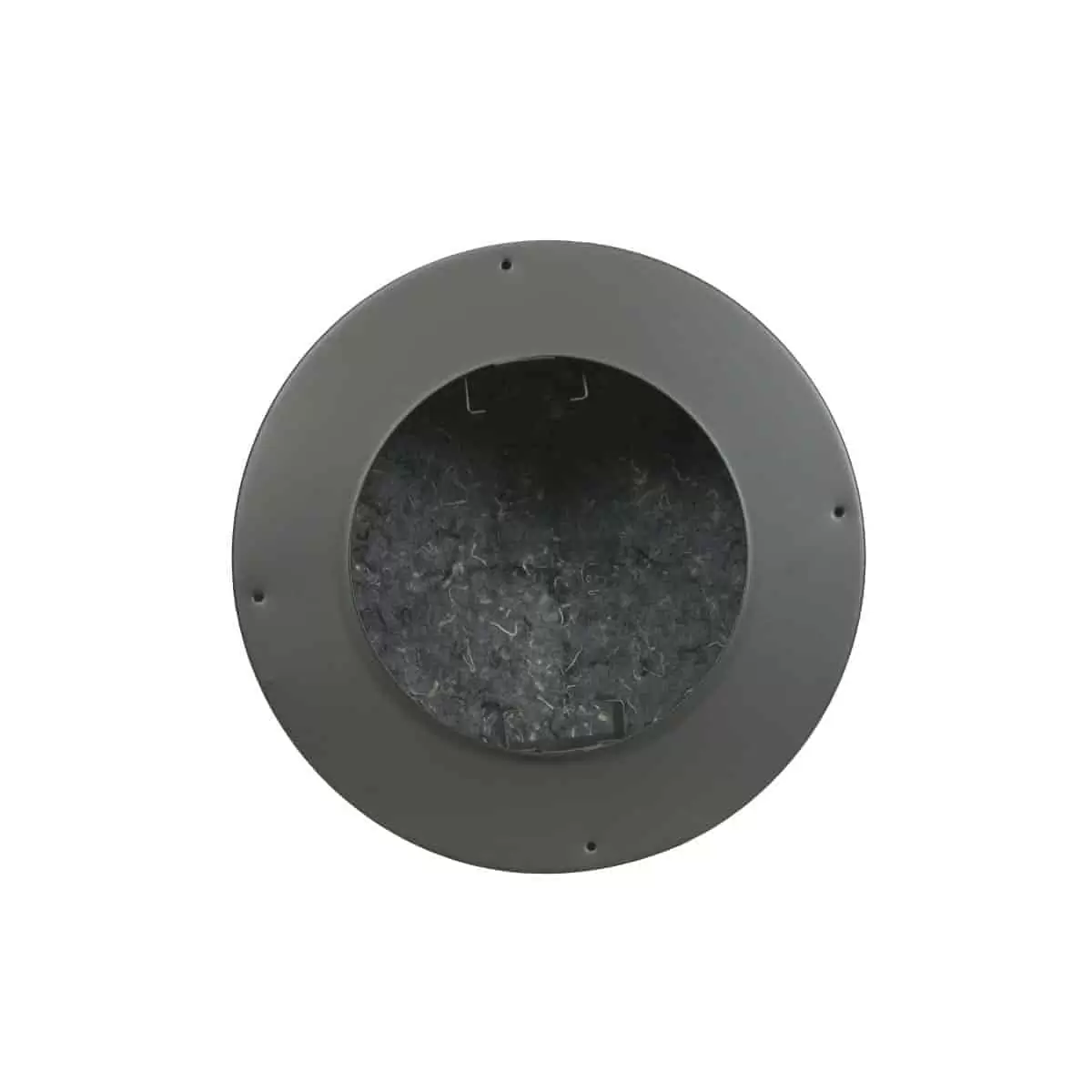

Lowell DX104-T Recess Backbox for 4inSp

The Lowell DX104-T is the torsion-grille version of Lowell's large-volume recessed backbox for 4-inch speakers. It has built-in receptacles for torsion springs, so grilles like the CN-4M or WB-4T snap up flush with no visible screws, while the extra internal volume gives a 4-inch driver fuller low end.

The welded 22-gauge black steel enclosure is 10 in. in diameter and 6.75 in. deep with 0.307 cu. ft. of volume, 1.5 in. acoustic batting, four combination knockouts and two mounting straps. Lowell notes it is UL Listed only when used in the WB4T-4A30-T870 assembly. The LBS4-DX tile bridge fits drop ceilings. Made in the USA from certified steel, sold in multiples of 8.

  • Mounting AidsKnockouts, straps
  • MaterialWelded 22-gauge steel
  • FinishBlack
  • Depth6.75 in
  • ComplianceUL Listed only when used with Lowell assembly WB4T-4A30-T870
Depth6.75 in
MaterialWelded 22-gauge steel
FinishBlack
Mounting AidsKnockouts, straps
ComplianceUL Listed only when used with Lowell assembly WB4T-4A30-T870, Certified U.S. steel
Country of OriginMade in the U.S.A.
Acoustical Treatment1.5 in. batting
Diameter10.00 in
