Lowell DX104 Recess Backbox for 4inSp
The Lowell DX104 is a recessed steel backbox for a 4-inch ceiling speaker, sized larger than a typical 4-inch can so the driver gets more air behind it and produces fuller bass. Lowell builds it for rooms where sound quality matters more than the smallest possible enclosure.

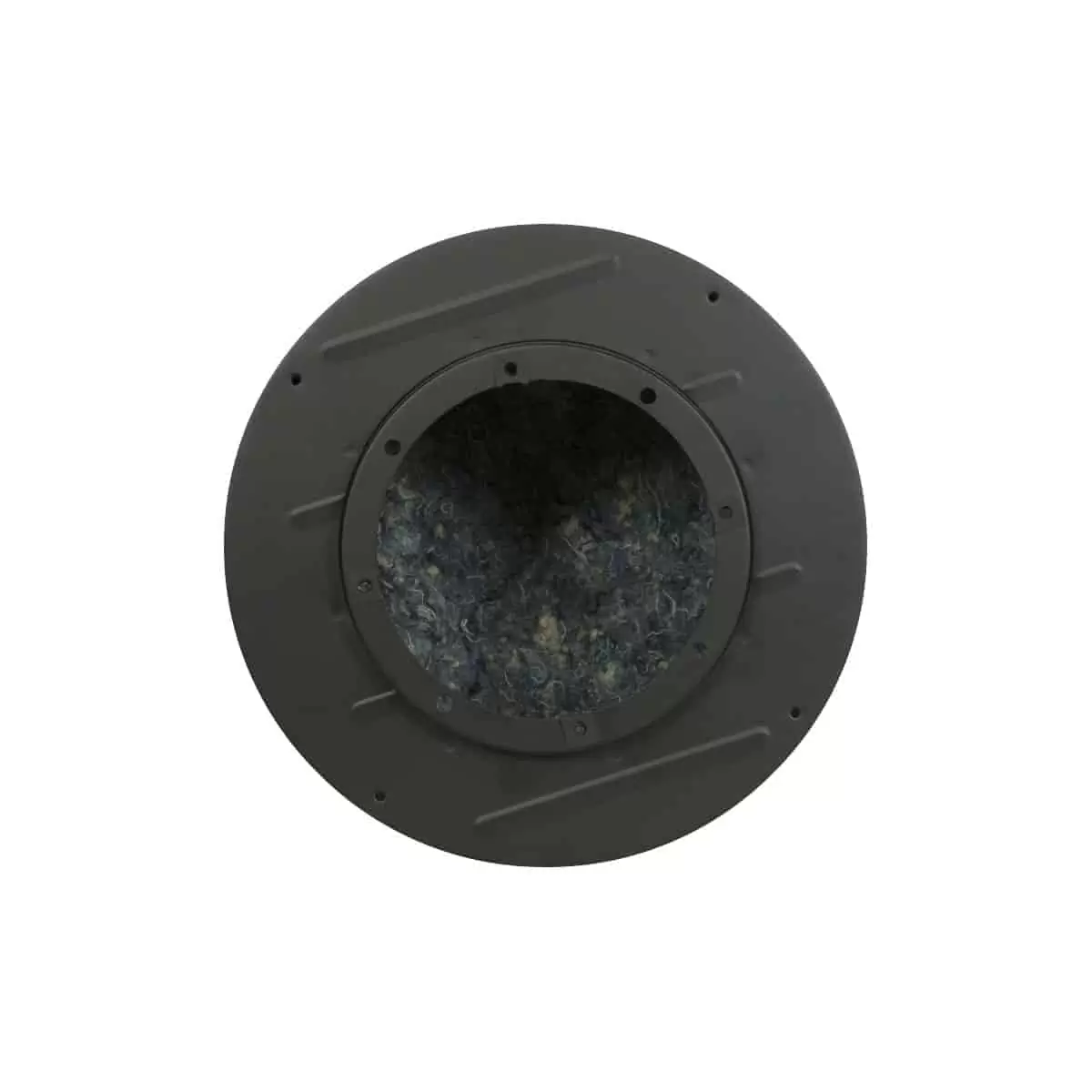

The welded 22-gauge steel enclosure is 10 in. in diameter and 6.75 in. deep, with 0.307 cu. ft. of volume, 1.5 in. acoustic batting and a black finish. Four combination knockouts (1/2 in. to 3/4 in.) and two flexible mounting straps handle installation, and an extended lip accepts screw-mount grilles such as the WB-4. The LBS4-DX tile bridge supports it in drop ceilings. Made in the USA, sold in multiples of 8.
- Mounting AidsKnockouts, straps
- MaterialWelded 22-gauge steel
- FinishBlack
- Depth6.75 in
- ComplianceCertified U.S. steel
| Depth | 6.75 in |
|---|---|
| Material | Welded 22-gauge steel |
| Finish | Black |
| Mounting Aids | Knockouts, straps |
| Compliance | Certified U.S. steel |
| Country of Origin | Made in the U.S.A. |
| Acoustical Treatment | 1.5 in. batting |
| Diameter | 10.00 in |
