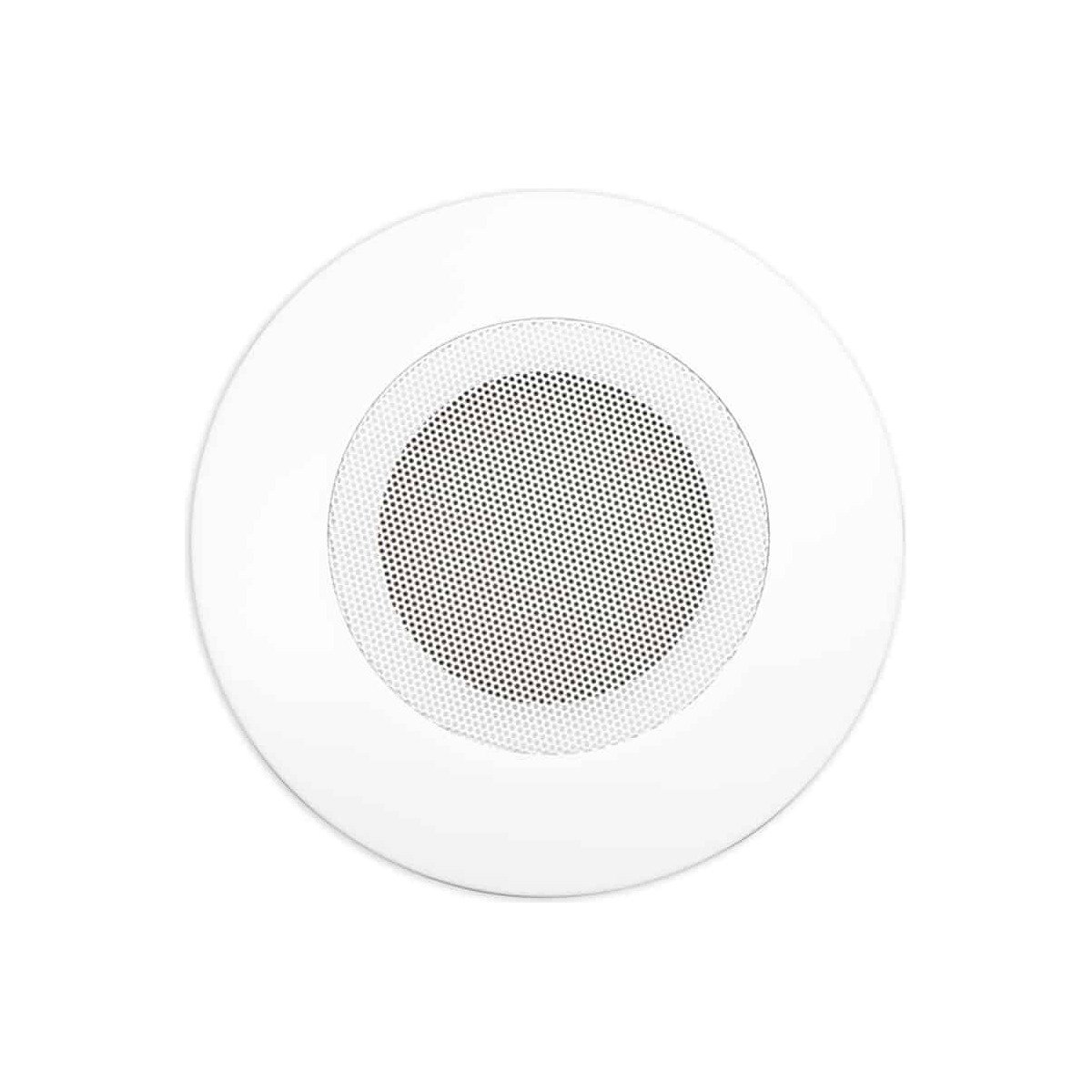

Lowell CN-4M Torsion Grille for 4inSp
The Lowell CN-4M is a round torsion grille for 4-inch ceiling speakers, for specs that call for no visible screws or mounting hardware. Welded studs hold the speaker, and two spring-loaded torsion brackets pull the grille up into receptacles in a compatible Lowell backbox, adjusting to different ceiling thicknesses.
The grille is 8.56 in. in diameter with a shallow 0.63 in. projection, built from a 20-gauge steel outer ring with a welded steel mesh center in white powder epoxy. It carries a speaker and grille assembly up to 3.5 lbs. Compatible drivers include the 4A30 and JR410, with backboxes such as the DX104-T. It is made in the USA and sold in multiples of 40.
- Size8.56 in. diameter
- Mounting Projection0.63 in
- Material20-gauge steel outer ring with welded steel mesh center
- Construction20-gauge steel
- FinishWhite
| Size | 8.56 in. diameter |
|---|---|
| Material | 20-gauge steel outer ring with welded steel mesh center, inner ring with welded speaker studs |
| Construction | 20-gauge steel |
| Finish | White |
| Compliance | Certified U.S. steel |
| Country of Origin | Made in the U.S.A. |
| Mounting Projection | 0.63 in |
| Mounting Provisions | Torsion bracket spring devices accommodate a variety of ceiling depths |
