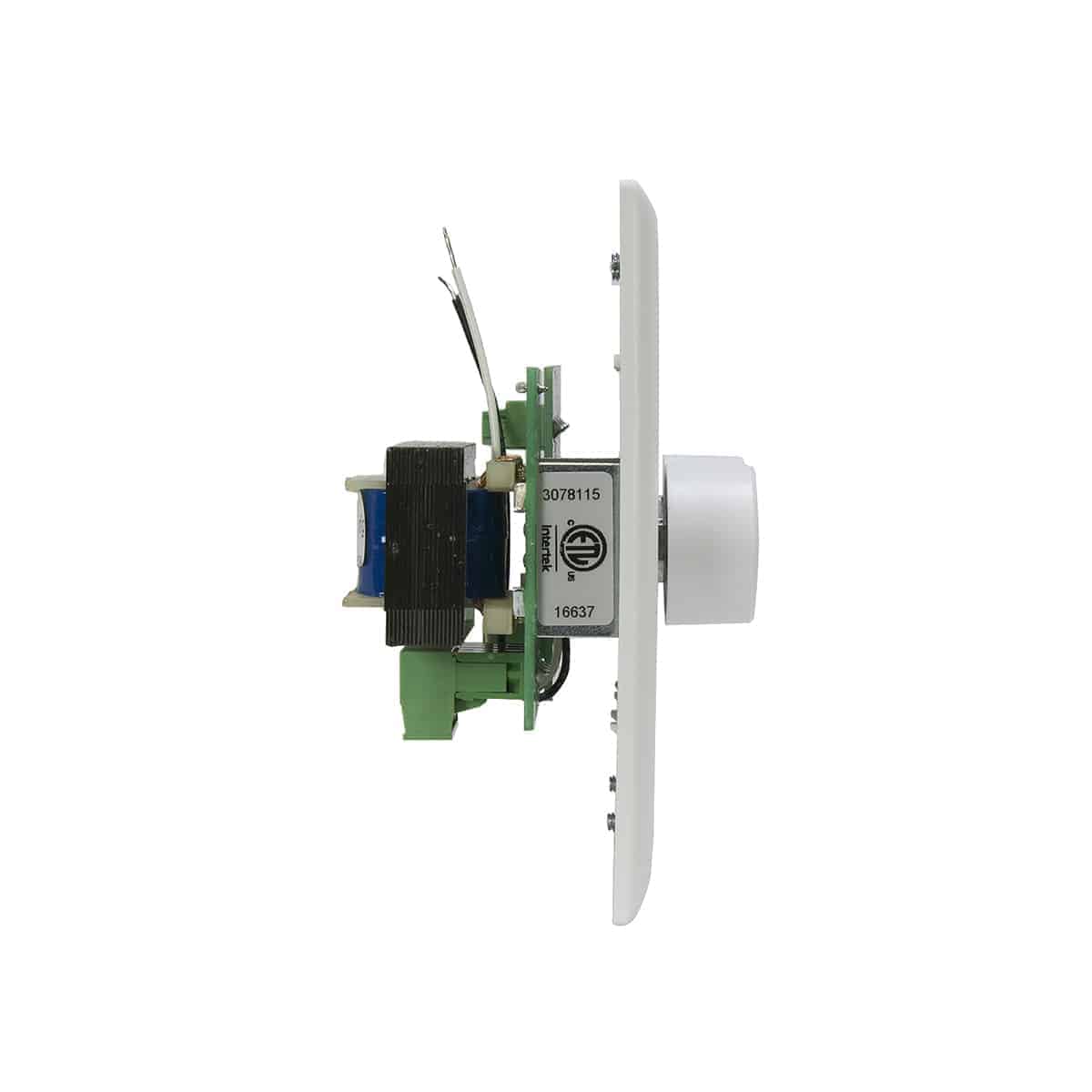

Lowell CS650-DW Attenuator/Program Select

The Lowell CS650-DW is an Attenuator/Program Select. Lowell specifies 50W volume control for use with 70V or 25V speaker lines provides 33dB attenuation in 10 steps. Last two steps before off are 6dB (33dB total), wiring connections are plug-in screw terminations for prewire convenience and six-source program selector switch is two-pole, non shorting rotary style to assure complete isolation between lines.

Ordered as Lowell part number CS650-DW. Supplied with includes knob and mounting screws. Lowell lists it Assembled in U.S.A., Components from China. Specifications and photography as published by Lowell Manufacturing at lowellmfg.com/product/cs650-dw-50w-attenuator-w-program-switch.

Attenuation	50W volume control for use with 70V or 25V speaker lines provides 33dB attenuation in 10 steps. Last two steps before off are 6dB (33dB total)
Connections	Wiring connections are plug-in screw terminations for prewire convenience
Program Select	Six-source program selector switch is two-pole, non shorting rotary style to assure complete isolation between lines
Wall Plates	Includes decorator style 2-gang wall plate plus two 1-gang plates for separate location mounting
Included	Includes knob and mounting screws
Compliance	Assembled in U.S.A., Components from China
