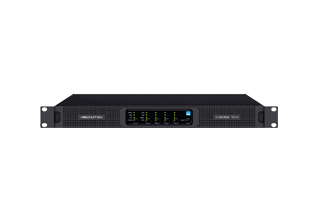

Lab.gruppen D 10:4L
The D 10:4L is the entry model in the Lake-equipped D Series, with 1,000 W across four flexible output channels and the full amount available on any one of them. For a distributed ceiling system or a small hall it is the whole amplifier rack in 1 frame.\n\nThe IDEEA Class D output stage drives 70 V and 100 V constant voltage systems as well as low impedance loads, Lake processing handles the loudspeaker presets, and 8x8 channels of dual redundant Dante with AES67 support move the audio.
| Processing / Network | Lake / Dante |
|---|---|
| Number of amplifier channels | 4 |
| Total burst power all channels (share among channels with RPM) | 1000 W |
| Peak output voltage | 142 Vpk |
| Max output Current | 30 Apk |
| Rational Power Management (RPM) | Share "Total burst power" of the product freely among channels. Any channel can scale up to the "single channel max power" |
| Default voltage limitation (can be lifted with RPM configuration) | 63 Vpk |
| Inter Sample Voltage Peak Limiter (ISVPL) | Configurable Peak voltage threshold and profile |
