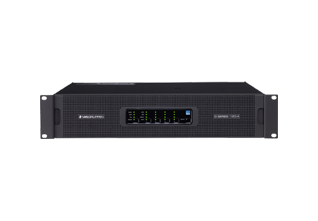

Lab.gruppen D 120:4L
The D 120:4L brings 12,000 W to a four channel install amplifier, with Rational Power Management letting any channel reach up to 5,900 W. That flexibility is what lets one model cover a room where the subs and the fills want very different power.\n\nLake processing handles crossovers, EQ and limiting per output, and 8x8 dual redundant Dante channels with AES67 support carry audio in and out. Constant voltage drive at 70 V and 100 V comes straight off the output stage, with no line transformers in the rack.
| Processing / Network | Lake / Dante |
|---|---|
| Number of amplifier channels | 4 |
| Total burst power all channels (share among channels with RPM) | 12000 W |
| Peak output voltage | 194 V |
| Max. output current | 67 A |
| Rational Power Management (RPM) | Regardless of model, any channel has potential to deliver the max single channel output power (1 channel on D 80:4, 2 channels on D 120:4) |
| Default voltage limitation (can be lifted with RPM configuration) | 175 V |
| Inter Sample Voltage Peak Limiter (ISVPL) | Configurable Peak voltage threshold and profile |
