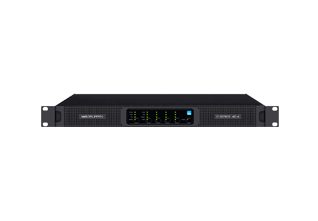

Lab.gruppen D 40:4L
The D 40:4L covers mid-sized installed systems with 4,000 W across four flexible output channels and up to 2,000 W available on a single channel. It is the point in the D Series where most fixed venue rigs land.\n\nThe IDEEA Class D output stage drives 70 V and 100 V constant voltage lines directly as well as low impedance loads, Lake processing handles loudspeaker management, and 8x8 channels of dual redundant Dante with AES67 support carry the audio.
| Processing / Network | Lake / Dante |
|---|---|
| Number of amplifier channels | 4 |
| Total burst power all channels (share among channels with RPM) | 4000 W |
| Peak output voltage | 150 Vpk |
| Max output Current | 30 Apk |
| Rational Power Management (RPM) | Share "Total burst power" of the product freely among channels. Any channel can scale up to the "single channel max power" |
| Default voltage limitation (can be lifted with RPM configuration) | 145 Vpk |
| Inter Sample Voltage Peak Limiter (ISVPL) | Configurable Peak voltage threshold and profile |
