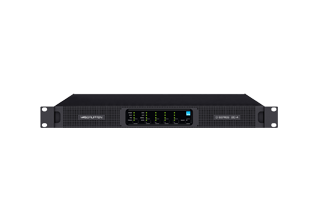

Lab.gruppen D 20:4L
The D 20:4L is the smaller of Lab.gruppen's four channel install amplifiers with Lake processing on board. Its 2,000 W reserve can be allocated up to 1,600 W on a single channel, so a subwoofer and three fills can share one frame.\n\nRational Power Management does that allocation across all four outputs, the IDEEA Class D output stage drives 70 V and 100 V lines directly, and 8x8 dual redundant Dante channels with AES67 support handle the audio path.
| Processing / Network | Lake / Dante |
|---|---|
| Number of amplifier channels | 4 |
| Total burst power all channels (share among channels with RPM) | 2000 W |
| Peak output voltage | 142 Vpk |
| Max output Current | 30 Apk |
| Rational Power Management (RPM) | Share "Total burst power" of the product freely among channels. Any channel can scale up to the "single channel max power" |
| Default voltage limitation (can be lifted with RPM configuration) | 100 Vpk |
| Inter Sample Voltage Peak Limiter (ISVPL) | Configurable Peak voltage threshold and profile |
