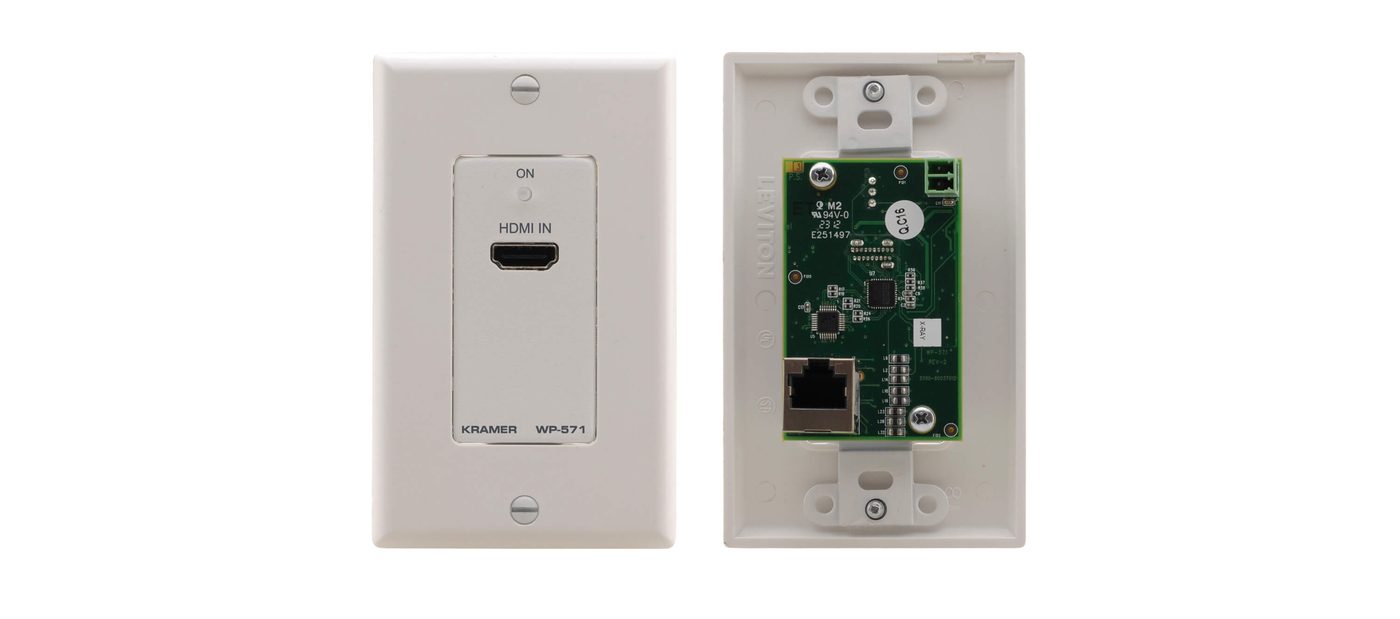

Kramer WP-571 HDMI HDCP 2.2 Wall Plate Transmitter over PoC Long-Reach DGKat

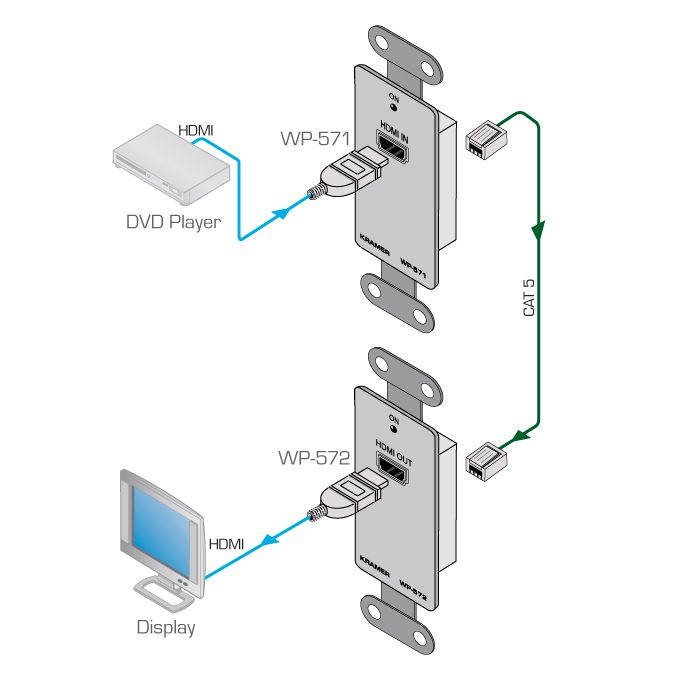

The WP-571 is a compact wall-plate transmitter that takes an HDMI input and converts it to Kramer's DGKat twisted-pair signal, sending it to a WP-572 receiver over standard shielded twisted-pair cable. It's built around Power Connect, so a single connection to either the transmitter or the receiver powers both devices when they're within 90m of each other - no second power adapter needed at the far end.

HDMI passes through with HDCP compliance, uncompressed audio channels, Dolby TrueHD, DTS-HD and 3D, at up to 4.95Gbps (1.65Gbps per graphics channel), and EDID passes through between source and display automatically. Range runs up to 90m at 1080i or 70m at 1080p on Kramer DGKat cable; third-party shielded CAT cable must have both ends of the shield soldered to the connectors to work correctly. A status LED shows power-only (red), power with one connection (orange) or a fully active link (green) for quick on-site diagnosis. Kramer notes this model's supply is limited and it will be discontinued when inventory runs out.
