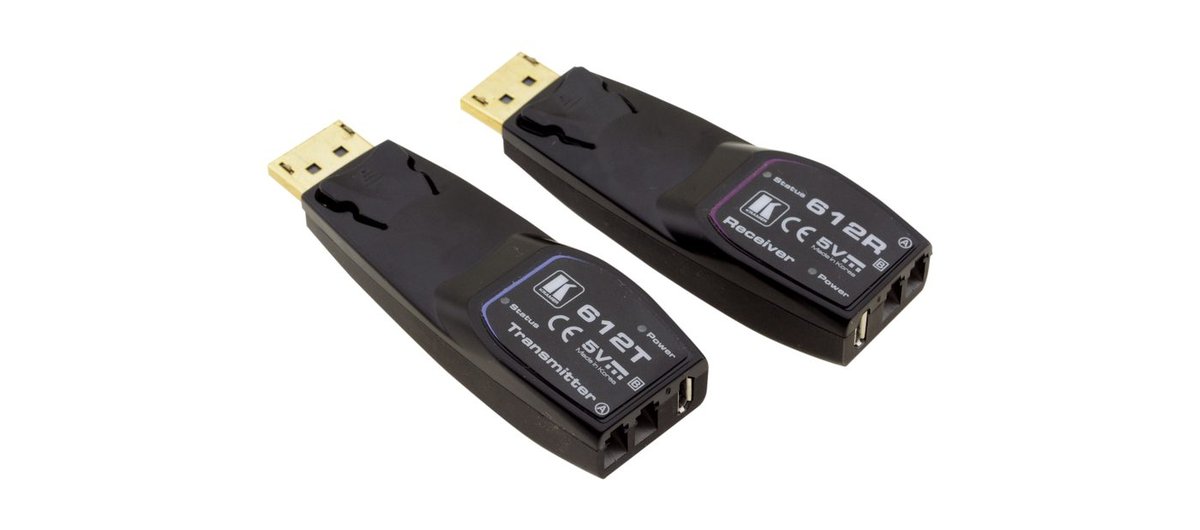

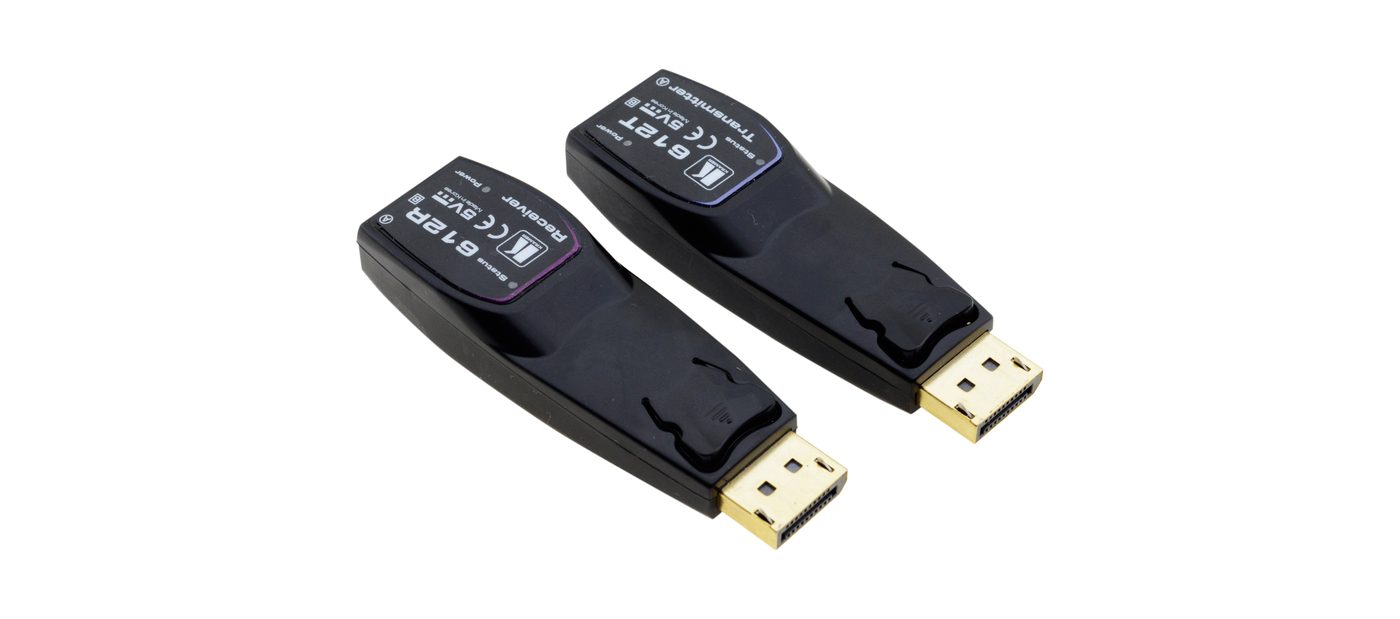

Kramer 612R/T 4K60 4:4:4 DP Transmitter/Receiver over Extended-Reach MM Fiber Optic

The Kramer 612R/T is a 4K60 4:4:4 DP Transmitter/Receiver over Extended-Reach MM Fiber Optic, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: Max. Resolution: 4K @60Hz 4:4:4 (4096x2160); Data Rate: Maximum 21.6 Gbps (HBR2); Compliance: Supports HDCP 2.2, EDID and DPCP (DisplayPort Content Protection); DisplayPort Support: Dual-mode DP (DP++) (video); 612T (source end): Male DisplayPort gold plated; 612R (display end): Male DisplayPort gold plated; 612T (source end): Micro USB (for power supply); 612R (display end): Micro USB (for power supply) (ports); 5V: Via USB source, external source, or DisplayPort PIN #20 (power); Structure: Dual Multi-mode OM3 (50/125um) glass fiber; Optical Connectors: Duplex LC connectors; Max. Fiber Cable Attenuation (λ=850nm): 2.5dB/KM; Max. Skew: 0.4ns; Max. Insertion Attenuation: 0.5dB; Total Optical Attenuation: 1dB max @ 656ft/200m extension; Maximum Length: 200m (656ft) (recommended cable). Also: Operating Temperature: 0° to +50°C (32° to 122°F); Storage Temperature: -30° to +70°C (-22° to 158°F); Operating Humidity: 0 to 85% (environmental conditions); CE: EN 55032:2012/AC: 2013 (Class A), EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; FCC: CFR 47 part 15 SUBPART B, Section 15.101; Environmental: RoHS (2011/65/ EU) (standards compliance); Included: 2 Micro USB to USB type-A cables, 2 Wall-mount power adaptors, 1 20cm DisplayPort (M) to (F) copper extension cable (accessories).
