Kramer WP-572 HDMI HDCP 2.2 Wall Plate Receiver over PoC Long-Reach DGKat

The WP-572 is the receiving half of Kramer's WP-571/WP-572 DGKat pair: the WP-571 converts an HDMI signal to a single twisted-pair signal, and the WP-572 converts it back to HDMI at the display end. Power Connect means a single power connection to the transmitter is enough to power the receiver too, so the display-side wall plate doesn't need its own adapter when the run is under 90m.

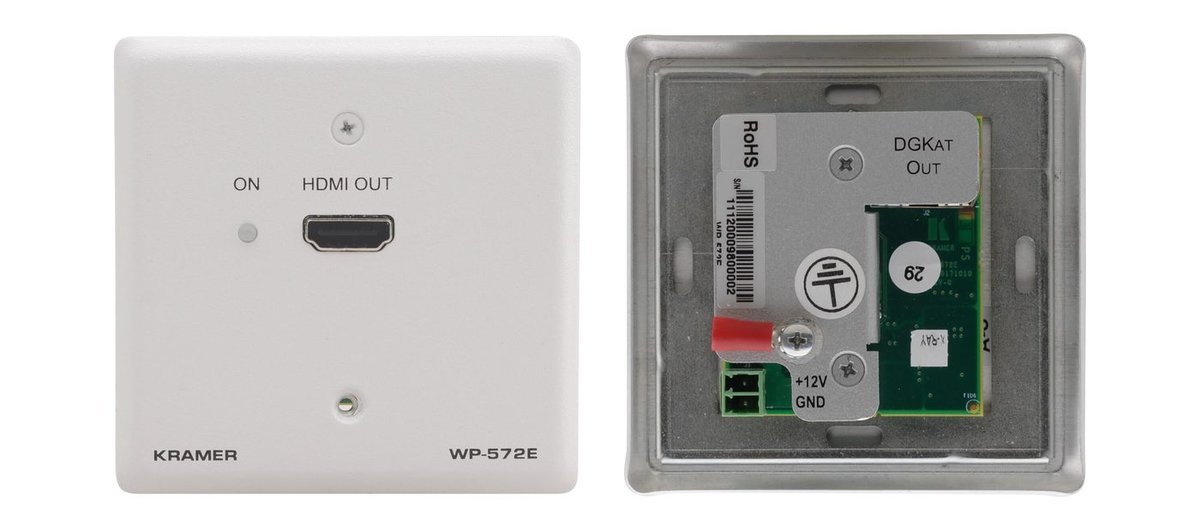

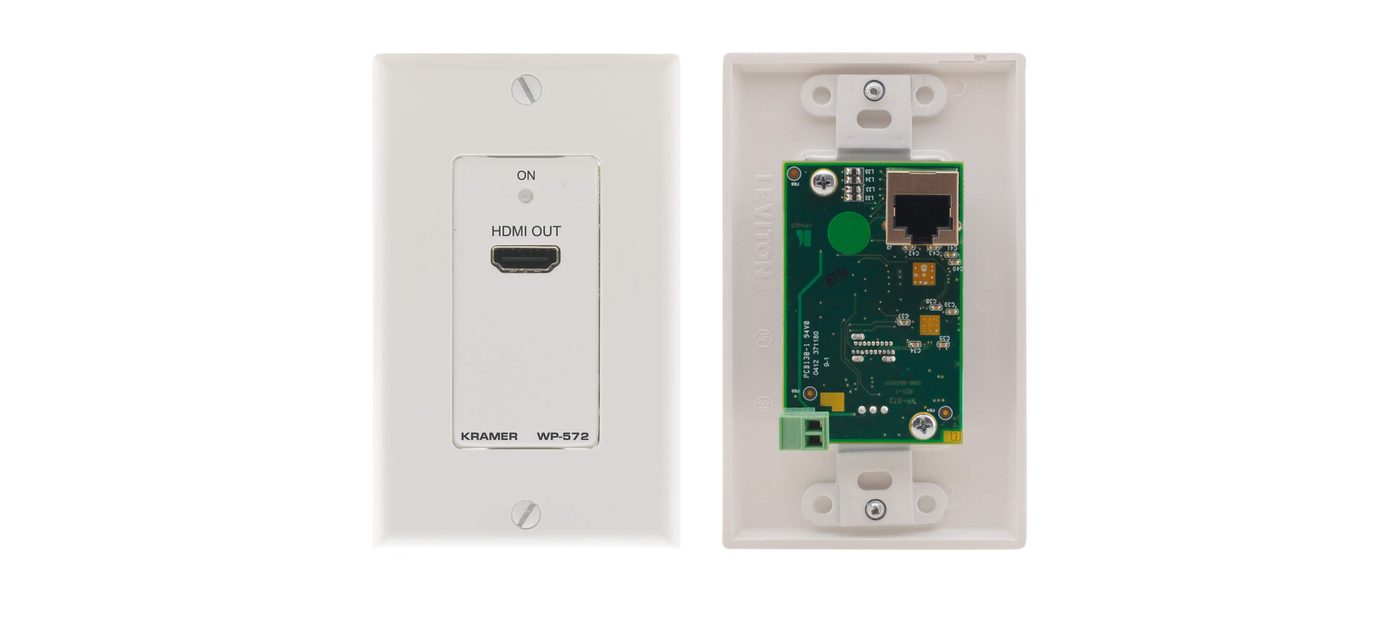

The signal path supports x.v.Color and up to 7.1 uncompressed audio channels with 3D pass-through, at up to 4.95Gbps (1.65Gbps per graphics channel), and EDID passes through automatically between source and display. An ON LED shows power-only (red), a partial connection (orange) or a fully active link (green). It fits a 1-gang US wall box and is also offered in EU/UK sizes with white, black or gray frames.
