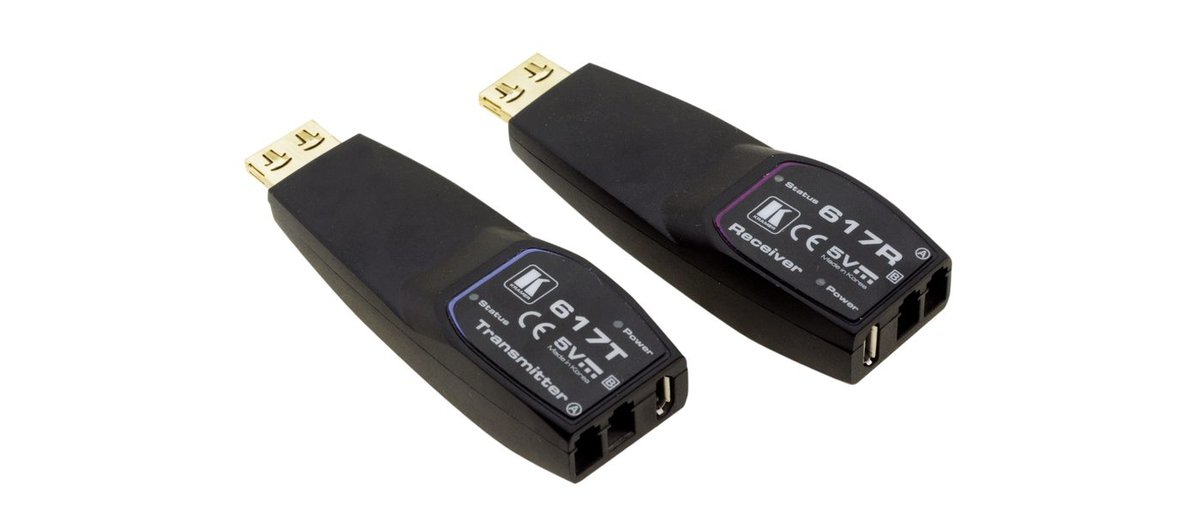

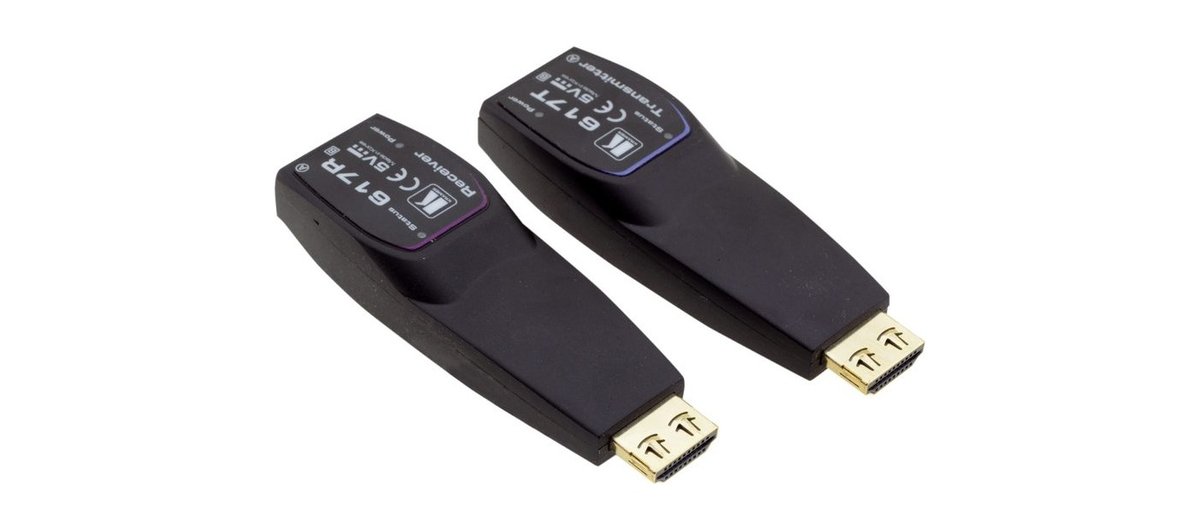

Kramer 617R/T 4K HDR HDMI Transmitter/Receiver over Extended-Reach MM Fiber Optic

The Kramer 617R/T is a 4K HDR HDMI Transmitter/Receiver over Extended-Reach MM Fiber Optic, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: Max. Resolution: 4K @60Hz 4:4:4 (4096x2160); Data Rate: Maximum 6 Gbps per channel; Compliance: Supports HDMI 2.0, HDCP 2.2, EDID and CEC (video); 617T (source end): Male HDMI connector; 617R (display end): Male HDMI connector; 617T (source end): Micro USB (for power supply); 617R (display end): Micro USB (for power supply) (ports); 5V: Via USB source, Via external source, or HDMI PIN #18 (617T only); Consumption: <2.5W (power); Structure: Dual Multi-mode OM3 (50/125um) glass fiber; Optical Connectors: Duplex LC connectors; Max. Fiber Cable Attenuation (λ=850nm): 2.5dB/KM; Max. Skew: 0.4ns; Max. Insertion Attenuation: 0.5dB; Total Optical Attenuation: 1dB max @ 656ft (200m) extension; Maximum Length: 656ft (200m) (recommended cable). Also: Operating Temperature: 0° to +50°C (32° to 122°F); Storage Temperature: -30° to +70°C (-22° to 158°F); Operating Humidity: 0 to 85% (environmental conditions); CE: EN 55032:2012/AC: 2013 (Class A), EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010; FCC: CFR 47 part 15 SUBPART B Class B, Section 15.101; Environmental: RoHS (2011/65/ EU) (standards compliance); Included: 2 Micro USB to USB type-A cables, 2 Wall-mount power adaptors (accessories).
