Kramer WP-211T 4K60 4:2:0 HDMI Wall-Plate Auto Switcher/Transmitter over Long-Reach PoE HDBaseT

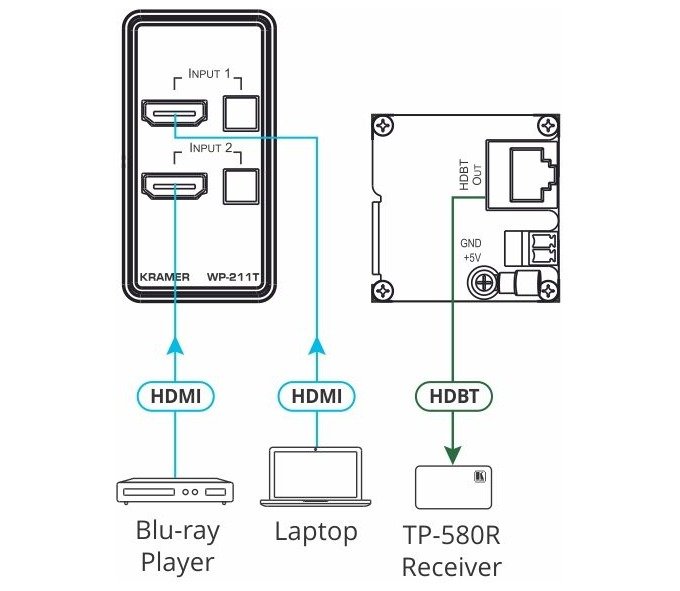

The WP-211T fits a standard 1-gang wall or podium box and auto-switches between two HDMI inputs out to a single HDBaseT output, following whichever preference - last-connected or priority - is set on its DIP switches, with a manual override always available from the panel buttons. It's built as a standard HDBaseT transmitter, so it pairs with any market HDBaseT-compliant receiver rather than locking a room into one extender family.

HDMI 2.0 and HDCP 2.2 compliance carries Deep Color, x.v.Color, Dolby TrueHD, DTS-HD and 3D through at up to 4K@60Hz (4:2:0), and Kramer's I-EDIDPro handles EDID negotiation so sources display correctly without manual configuration. The unit runs entirely on PoE from a compatible receiver or matrix - no local power adapter required at the wall - and reaches up to 40m at 4K or 70m at full HD over Kramer HDBaseT cable.

Inputs2 HDMI (female)
Outputs1 HDBaseT (RJ-45)
Max Resolution4K@60Hz (4:2:0)
Max Data Rate8.91 Gbps (2.97 Gbps per graphics channel)
Content ProtectionHDCP 2.2 (no downconversion to HDCP 1.4)
Extension RangeUp to 40m (130ft) at 4K@60; up to 70m (230ft) at 1080p, on Kramer cable
ControlsPanel buttons; last-connected/priority DIP switches
Power5V DC; PoE acceptor; 780mA (9W with PoE)

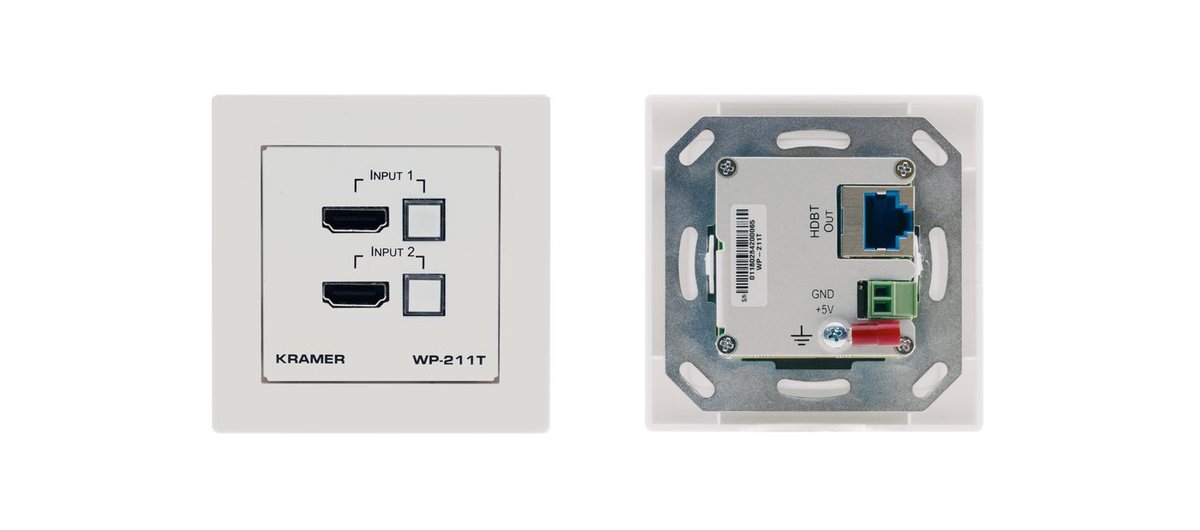

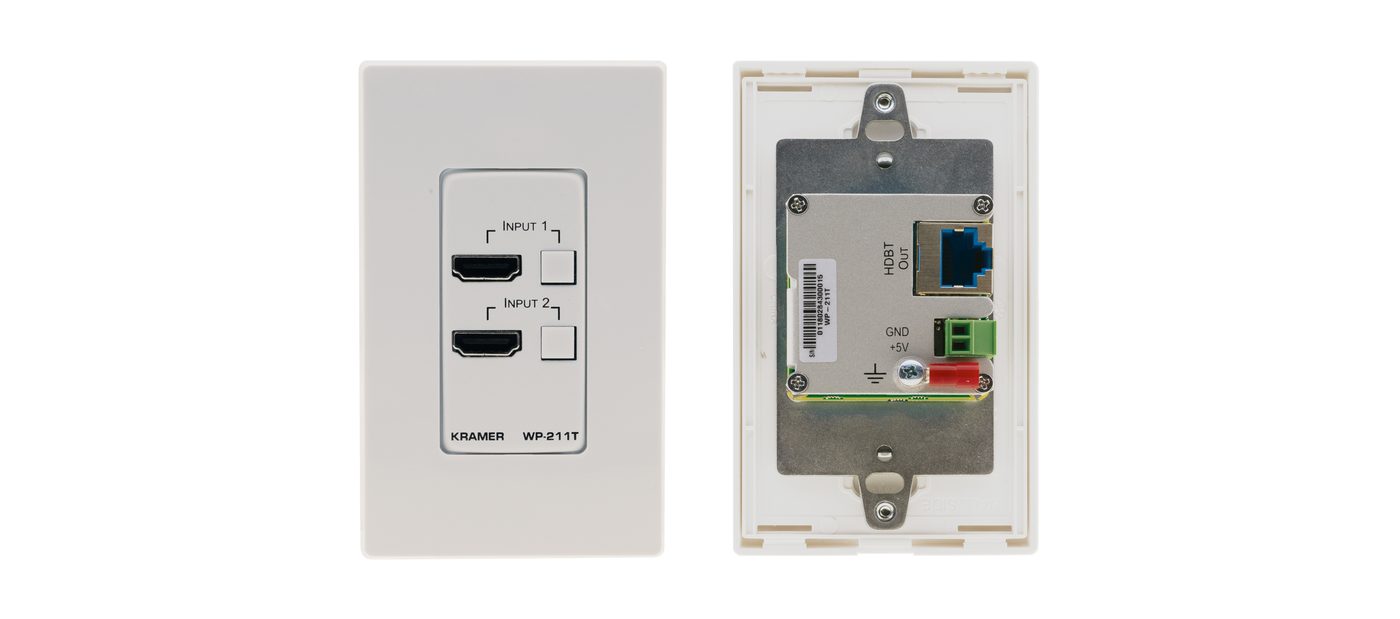

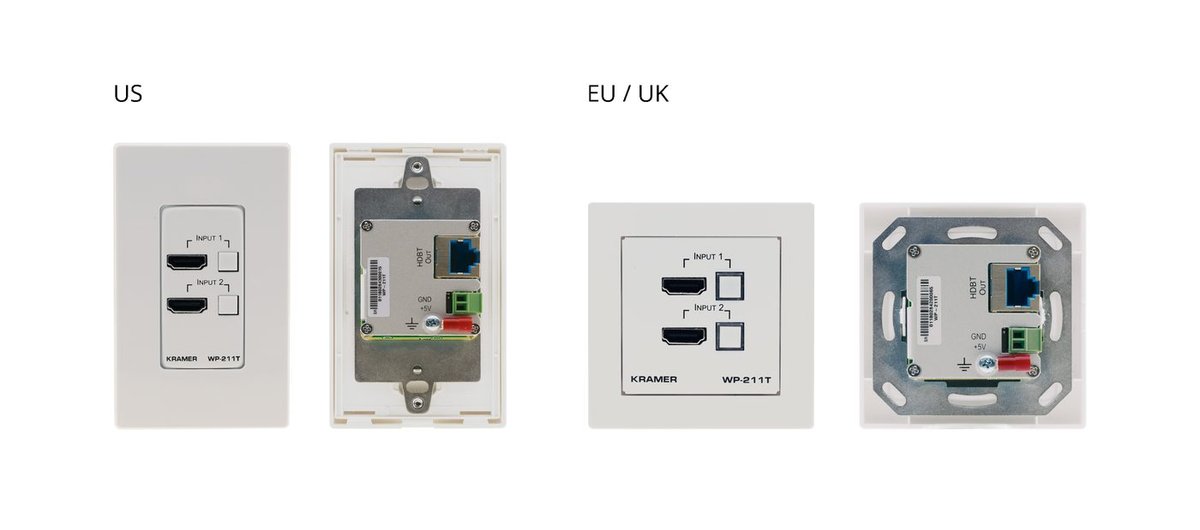

Enclosure1-gang; fits US, EU or UK wall plate
IncludedPower adapter, power cord; US version ships with black + white Decora frame sets
Kramer WP-211T 4K60 4:2:0 HDCP 2.2 Wall Plate Auto Switcher
