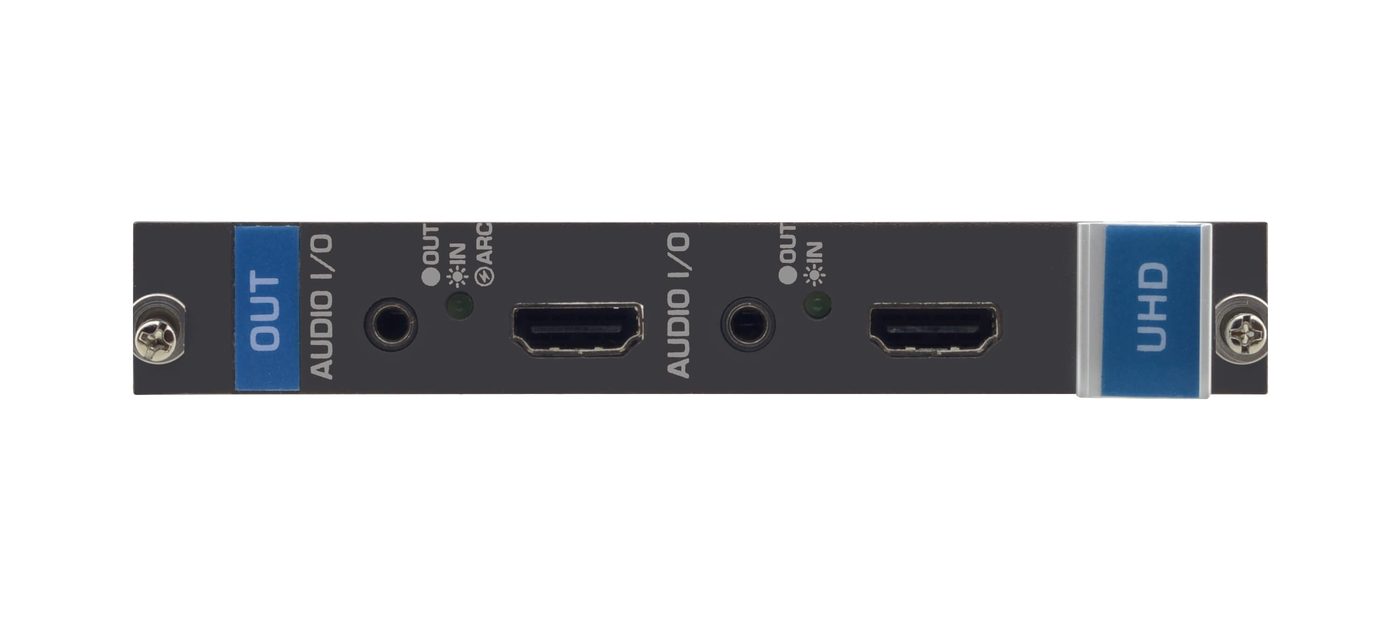

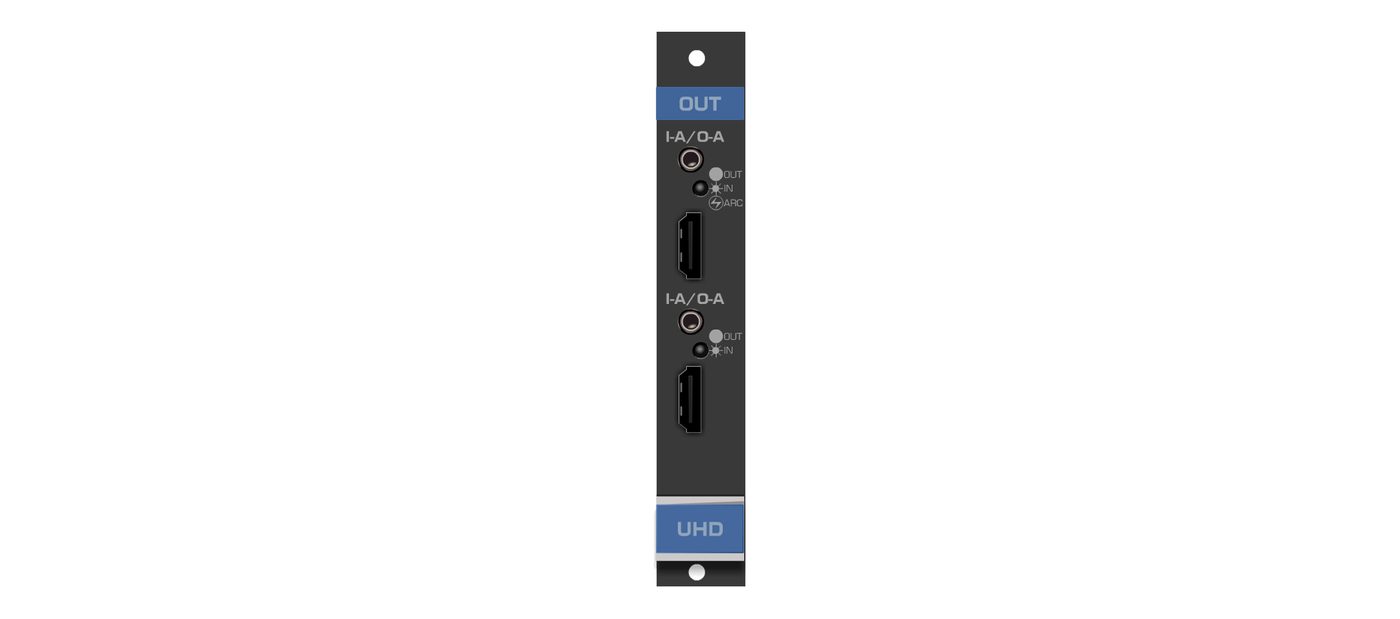

Kramer UHDA-OUT2-F16 2-Channel 4K60 4:2:0 HDMI Output Card with Selectable Embedded, De-embedded or ARC Analog Audio

The Kramer UHDA-OUT2-F16 is a 2-Channel 4K60 4:2:0 HDMI output card with selectable Embedded, De-embedded or ARC analog audio, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 2 HDMI, 2 Analog audio on 3.5mm mini jacks (ports); 2.97Gbps per graphics channel (bandwidth per channel); 8.91Gbps data rate (total bandwidth). Also: 10m (32ft) - 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) - 1080p 12 bit (deep color) (maximum range); Supported (3d pass through); 3D, Deep Color, x.v.Color, ARC, Dolby TrueHD, Dolby Digital Plus, DTS-HD, 7.1 multi-channel audio (hdmi support); 5.5W (power consumption); 0 deg to +40 degC (32 deg to 104 degF) (operating temperature).
