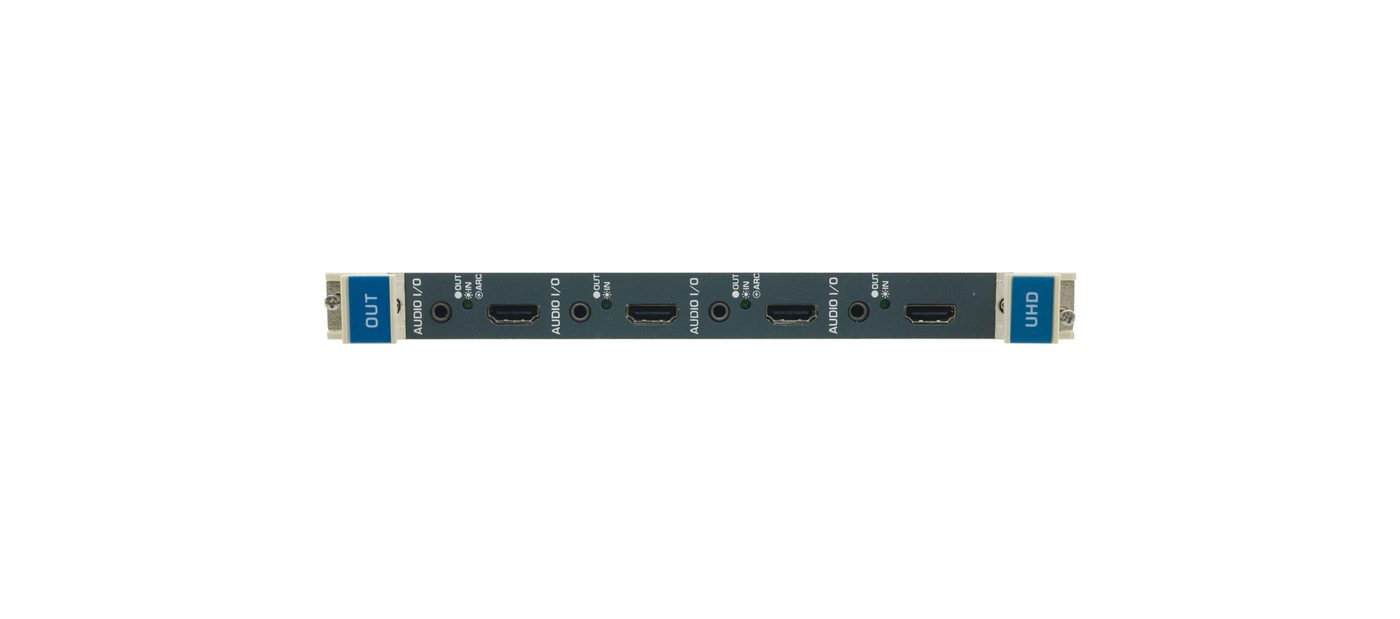

Kramer UHDA-OUT4-F32 4-Channel 4K60 4:2:0 HDMI Output Card with Selectable Embedded, De-embedded or ARC Analog Audio

The Kramer UHDA-OUT4-F32 is a 4-Channel 4K60 4:2:0 HDMI output card with selectable Embedded, De-embedded or ARC analog audio, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 4 HDMI, 4 Analog audio on 3.5mm mini jacks (outputs); 2.97Gbps per graphics channel (bandwidth per channel); 8.91Gbps data rate (total bandwidth). Also: 10m (32ft) - 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) - 1080p 12 bit (deep color) (maximum range); Supported (3d pass through); HDCP 1.4, HDTV compatible (standard compliance); 3D, Deep Color, x.v.Color, ARC, Dolby TrueHD, Dolby Digital Plus, DTS-HD, 7.1 multi-channel audio (hdmi support); 17W (power consumption).
