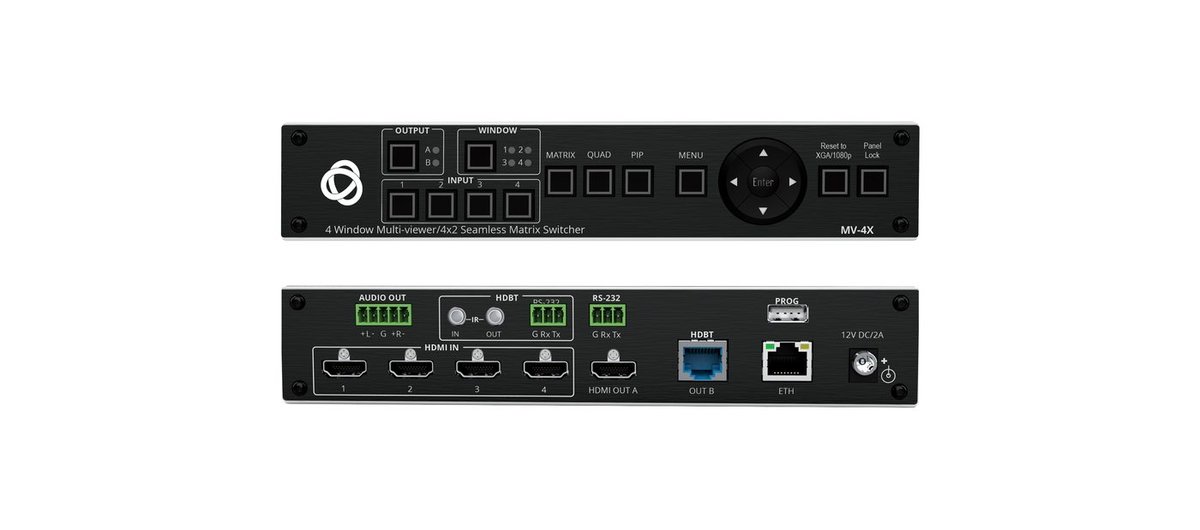

Kramer MV-4X 4-Window Multiviewer / 4x2 Seamless Matrix Switcher

MV-4X is a high-performance HDMI matrix switcher with integrated scaling technology and multi-windowing options. It is an ideal solution for monitoring or displaying multiple sources simultaneously for use in control rooms, conference rooms or classrooms. Video resolutions up to 4K@60Hz 4:4:4 and LPCM audio up to 7.1 channels and 192kHz are supported on both inputs and outputs. In addition, MV-4X is fully compatible with the HDCP 1.x and 2.3 standards.The product offers 2 outputs - HDMI and HDBT. Users can choose to display any of the four HDMI sources individually, in full screen, or in a variety of multi-window modes that include quad mode, PiP, and PoP on both outputs. Alternatively, MV-4X offers a seamless (zero-time video cut) 4x2 matrix switcher option. The product also supports chroma-keying and includes a logo overlay feature.You can control and manage the MV-4X, including the input/window routing, position, and size via the front panel OSD buttons, Ethernet (with embedded webpages), and RS-232.

Key features: High Performance Multi-Viewer - 18G 4K HDMI product with 4 HDMI inputs and HDBT and HDMI outputs that supports HDMI up to 4K@50/60Hz 4:4:4 and HDBT up to 4K@50/60Hz 4:2:0; Zero-Time Video Cuts - Connect up to four HDMI sources, an HDMI and an HDBT sink, and seamlessly switch between them; HDMI Support - HDR10, CEC (for outputs only), 4K@60Hz, Y420, BT.2020, Deep Color (for inputs only), x.v.Color™, 7.1 PCM, Dolby TrueHD, DTS-HD, as specified in HDMI 2.0; Content Protection - Supports HDCP 2.3; Chroma Keying Support - select to key the video input using a uniform-colored background.
