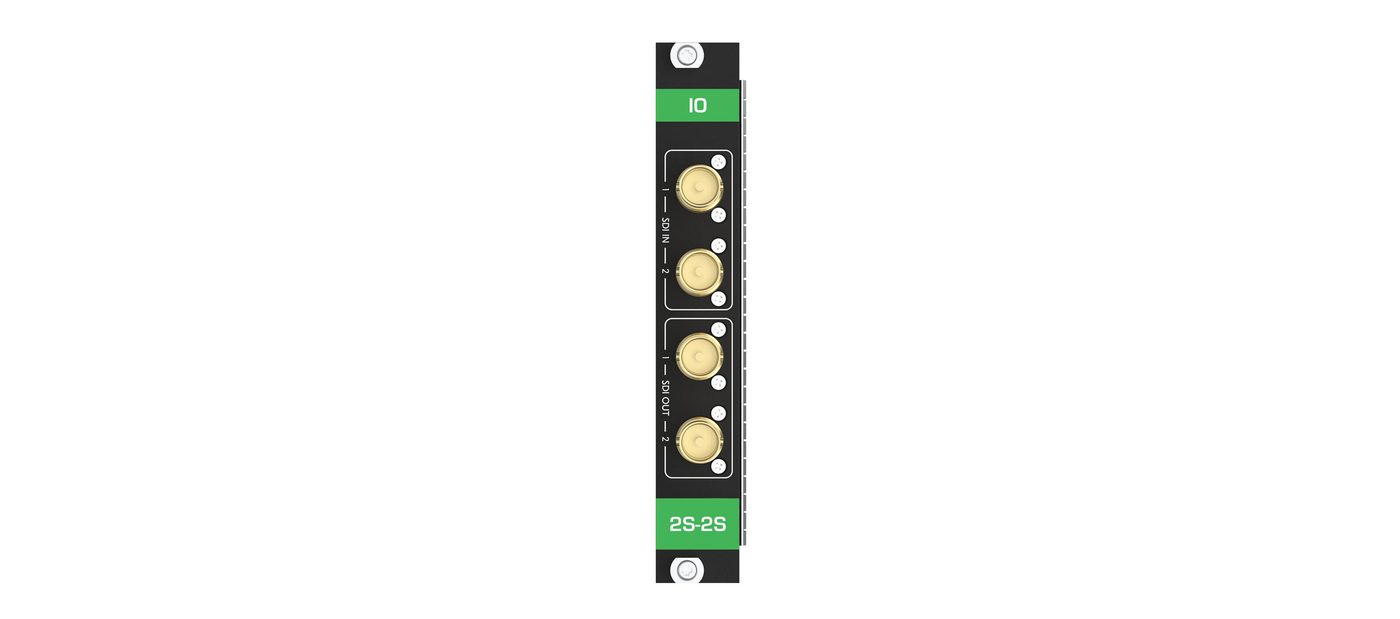

Kramer MC3-2S-2S 12G SDI 2xIN + 2xOUT Scaling Card

The Kramer MC3-2S-2S is a 12G SDI 2xIN + 2xOUT scaling card, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: On 75 ohm BNC female connectors (inputs - 2 12g sdi); On 75 ohm BNC female connectors (outputs - 2 12g sdi); 270Mbps to 12Gbps (sdi - data rate). Also: 800mVpp / 75 ohm (sdi - max output level); 800mVpp / 75 ohm (sdi - cable equalization reach); 4K60 4:2:2 (video - max sdi resolution); NTSC, PAL, 720p, 1080i, 1080p and 2160p (video - scaling input resolution); 1.5 seconds (video - max switching time between inputs).
