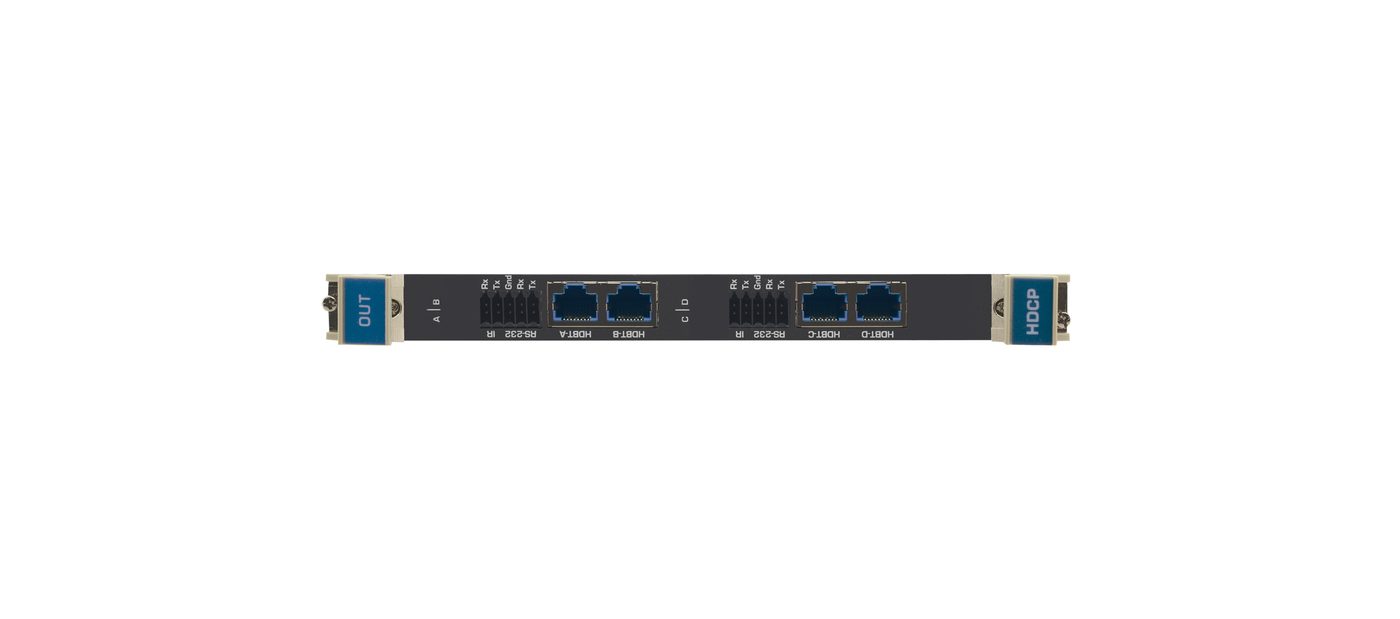

Kramer DT-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Long Reach HDBaseT Output Card

The Kramer DT-OUT4-F32 is a 4-Channel 4K60 4:2:0 HDMI over long reach hDBaseT output card, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: On RJ-45 connectors (outputs - 4 hdbaset); On 10-pin terminal blocks (ports - 4 rs-232 and 4 ir ports); Video: 3.4Gbps; Serial data: 115200 (bandwidth per channnel). Also: Video: 10.2Gbps; Serial data: 115200 (total bandwidth); 40m (130ft) - 4K@60Hz (4:2:0) or 4K@30Hz (4:4:4); 70m (230ft) - 1080p 12 bit (deep color); Note: When using Kramer HDBaseT cables (maximum range); Supported (3d pass-through); 300 to 115200 baud rate (extended rs-232); HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible (standards compliance).

Outputs - 4 HDBaseT	On RJ-45 connectors
Ports - 4 RS-232 and 4 IR ports	On 10-pin terminal blocks
Bandwidth Per Channnel	Video: 3.4Gbps; Serial data: 115200
Total Bandwidth	Video: 10.2Gbps; Serial data: 115200
Maximum Range	40m (130ft) - 4K@60Hz (4:2:0) or 4K@30Hz (4:4:4); 70m (230ft) - 1080p 12 bit (deep color); Note: When using Kramer HDBaseT cables
3D Pass-through	Supported
Extended RS-232	300 to 115200 baud rate
Standards Compliance	HDCP 1.4, HDMI 1.3a, HDBaseT, HDTV compatible
