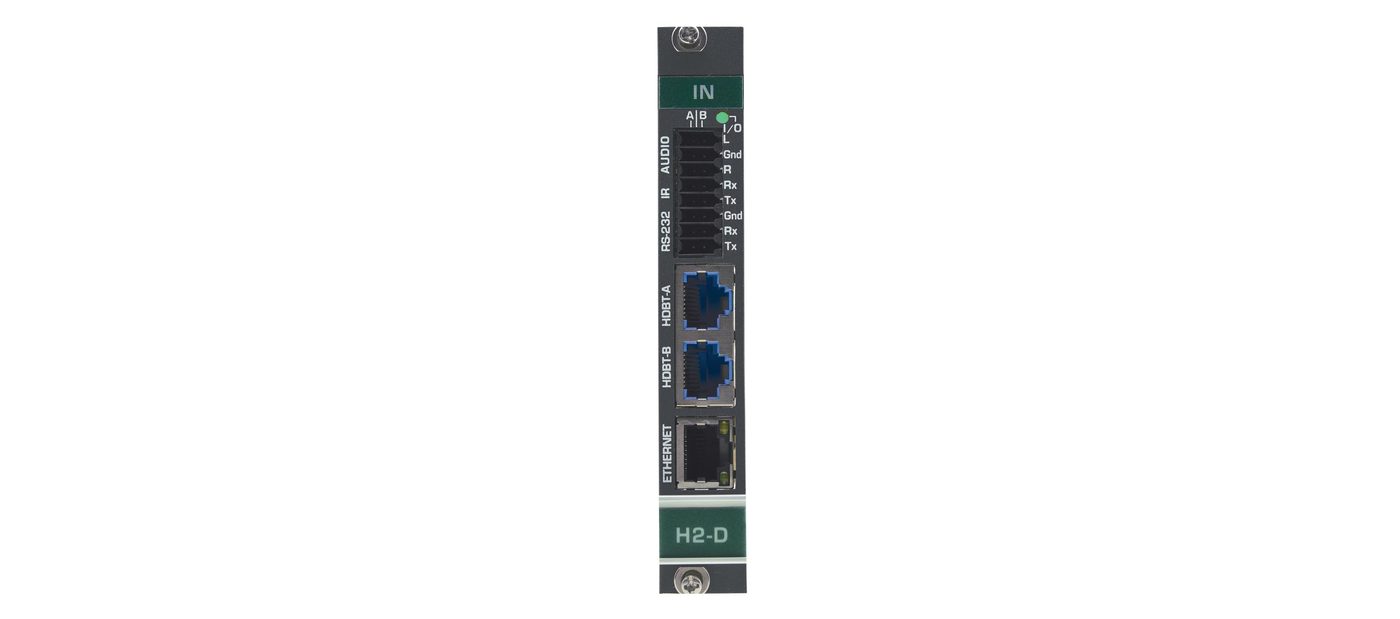

Kramer DTAXRD2-IN2-F34 2-Channel 4K HDR HDMI over HDBaseT 2.0 DSC Input Card with Analog Audio

The Kramer DTAXRD2-IN2-F34 is a 2-Channel 4K HDR HDMI over hDBaseT 2.0 DSC input card with analog audio, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: On RJ-45 connectors (inputs - 2 hdbaset); On a 6-pin terminal block connector (ports - 2 unbalanced audio); On a 6-pin terminal block connector (ports - 2 rs-232). Also: On a 4-pin terminal block (ports - 2 ir); On an RJ-45 connector (ports - 1 ethernet); Low-level standard DSC compression for signals above 4K@60 (4:2:0) (extension line - compression); Up to 100m (330ft); Up to 100m (330ft).

Inputs - 2 HDBaseT	On RJ-45 connectors
Ports - 2 Unbalanced Audio	On a 6-pin terminal block connector
Ports - 2 RS-232	On a 6-pin terminal block connector
Ports - 2 IR	On a 4-pin terminal block
Ports - 1 Ethernet	On an RJ-45 connector
Extension Line - Compression	Low-level standard DSC compression for signals above 4K@60 (4:2:0)
Extension Line - 4K@60 (4:4:4) Range with Compression	Up to 100m (330ft)
Extension Line - 4K@60 (4:2:0) Range with No Compression	Up to 100m (330ft)
