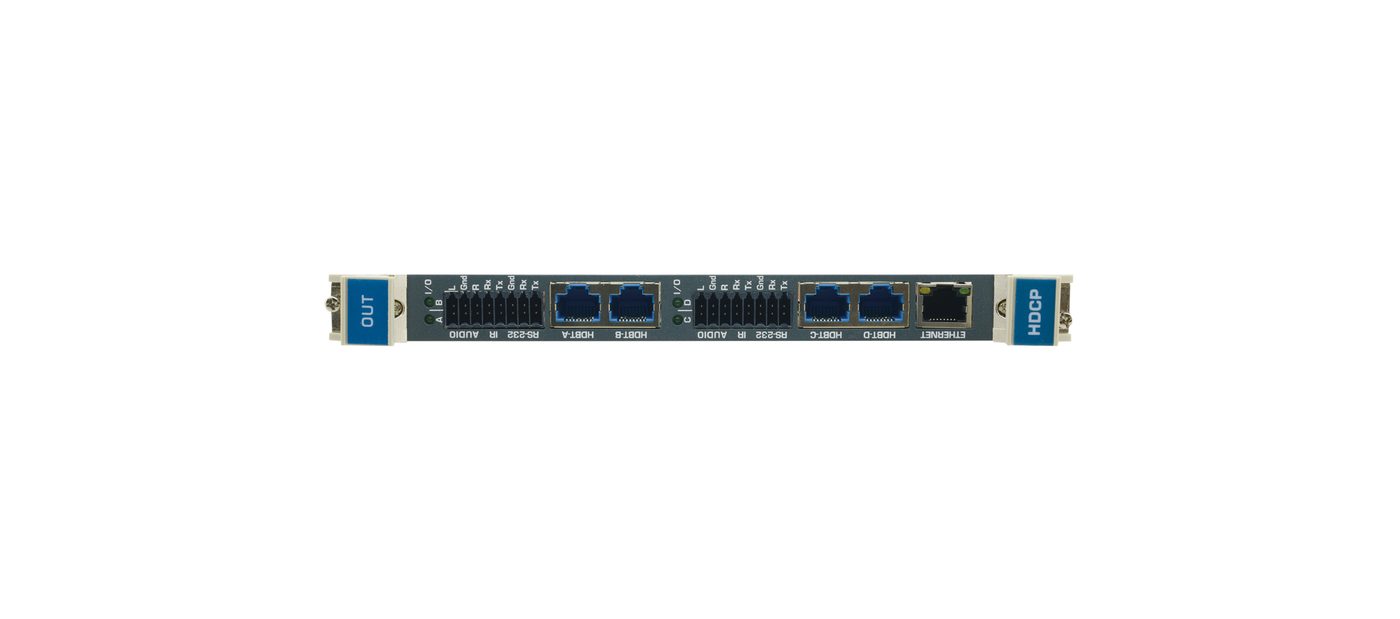

Kramer DTAXR-OUT4-F32 4-Channel 4K60 4:2:0 HDMI over Extended Reach HDBaseT Output Card with Selectable Embedded or De-embedded Analog Audio

The Kramer DTAXR-OUT4-F32 is a 4-Channel 4K60 4:2:0 HDMI over extended reach hDBaseT output card with selectable embedded or De-embedded analog audio, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 4 HDBaseT TP on RJ-45 connectors; 4 Balanced audio on terminal block connectors (outputs); 4 RS-232 and 4 IR on 10 pin terminal blocks for bidirectional RS-232 and IR extension; 1 Ethernet on an RJ-45 connector for bidirectional Ethernet extension (ports); Video: 3.4Gbps; Serial Data: 115200 (bandwidth per channel). Also: Video: 10.2Gbps; Serial Data: 115200 (total bandwidth); Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp); Note: When using Kramer HDBaseT cables (maximum range); Supported (3d pass through); Up to 100Mbps extended line rate bandwidth (extended ethernet); 300 to 115200 baud rate (extended rs-232).
