Juice Goose CQ Series AC Power Sequencers
Sequencing exists because turning a whole rack on at once is two problems at the same time: an inrush that trips the breaker, and amplifiers waking up before the console does. The CQ Series staggers the turn-on and reverses it on shutdown. CQ-1515 is the single rack space version, seven outlets with six of them switched on a 15 amp combined rating and surge protection built in; CQ-1520 is the same panel rated for 20 amps with line noise filtration.

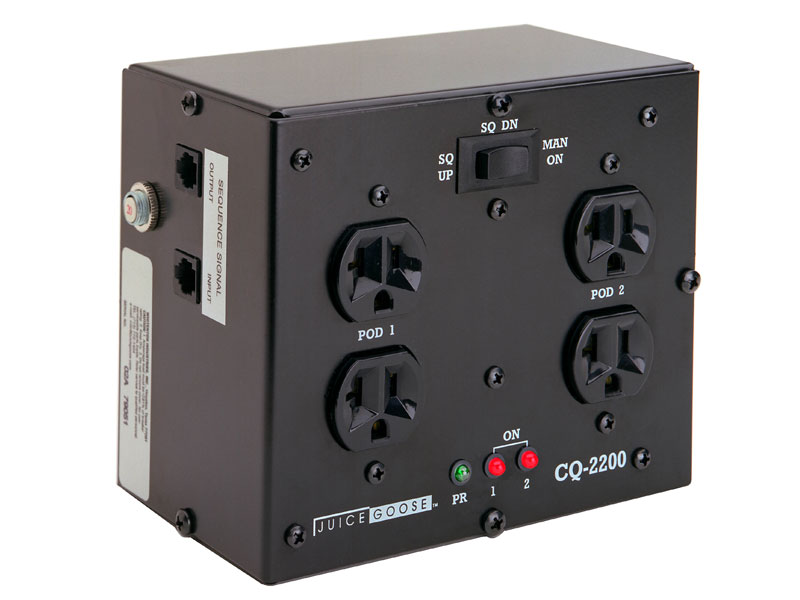

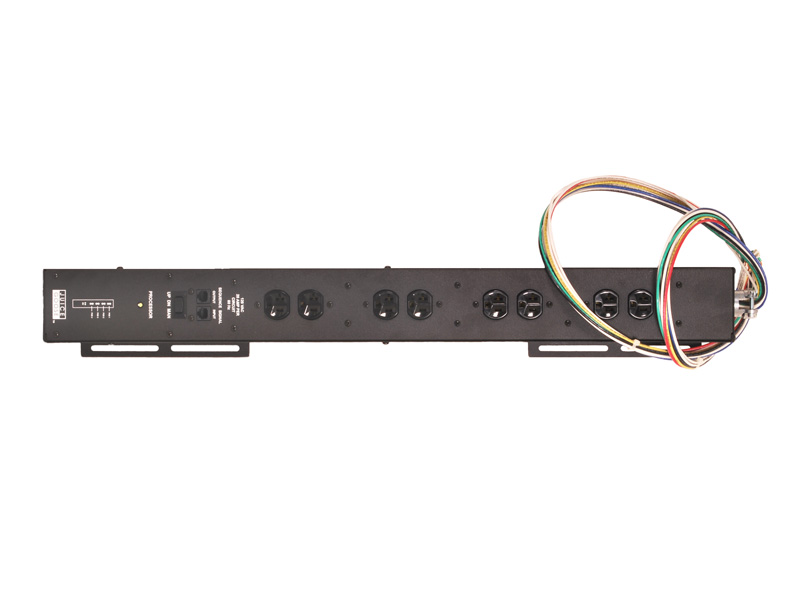

For installs where the power lands in a panel rather than a rack strip, CQ-2200 is a hardwired two stage sequencer on a 20 amp circuit, and CQ-3000 is the high current version, hardwired and rated to 30 amps for large amplifier systems. CQ-PD1-4 is the standalone four step sequencer with integrated timing, used to drive vertical power distribution or contactors in bigger rooms. Pick the model above and the price updates.
| Type | AC power sequencing for audio systems |
|---|---|
| CQ-1515 | 1U rack, 7 outlets with 6 switched, 15 A combined, surge protection |
| CQ-1520 | 1U rack, 7 outlets with 6 switched, 20 A combined, line noise filtration |
| CQ-2200 | Hardwired two stage sequencer, 20 A circuit, 2 sequence events |
| CQ-3000 | Hardwired high current sequencer, 30 A rated |
| CQ-PD1-4 | Standalone four step sequencer with integrated timing |
| Rack Width | 19 inch on rack mount models |
