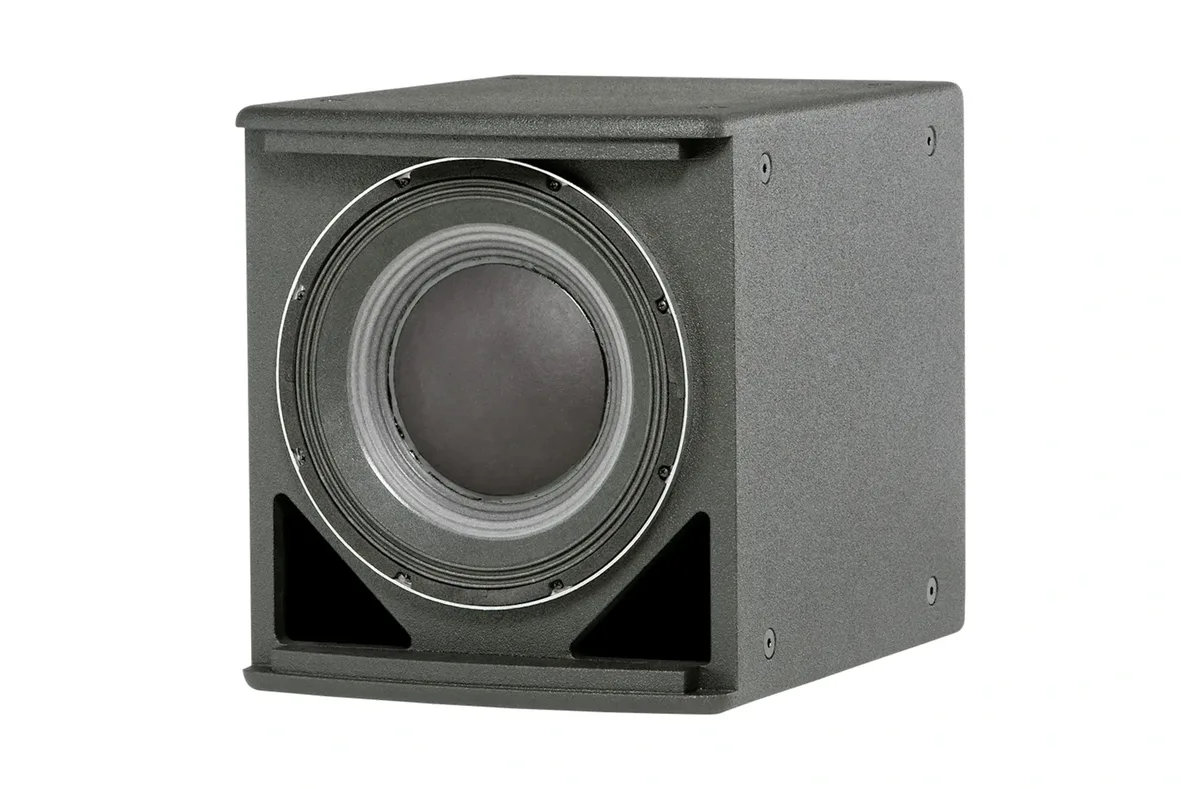

JBL ASB6112 Compact 12-inch Subwoofer

The ASB6112 is a compact 12-inch subwoofer, part of JBL's AE Series installed range. The low-frequency section uses 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive driver. Frequency range is 35 Hz - 1 kHz. JBL rates it at 700 W (2800 W peak), 100 hrs. Maximum SPL at 1 m is 40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak). Nominal impedance is 8 ohms.

The enclosure is Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood. The grille is Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. Finish is Black DuraFlex finish.White available upon request. Rigging: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware. Environmental rating: Mil-Std 810; IP-x3 per IEC529. Net weight is 16.3 kg (36.0 lb).

Type	Compact 12-inch Subwoofer
Frequency Range (-10dB)	35 Hz - 1 kHz
Frequency Response (+/-3 dB)	43 Hz - 1 kHz
Transducer Power Rating (AES)	1000 W (4000 W peak), 2 hrs.
System Power Rating	700 W (2800 W peak), 100 hrs.
Maximum SPL (1m)	40 Hz - 300 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity	40 Hz - 300 Hz: 96 dB-SPL,1W (2.83V) @ 1m
Nominal Impedance	8 ohms
LF Driver	1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive driver
