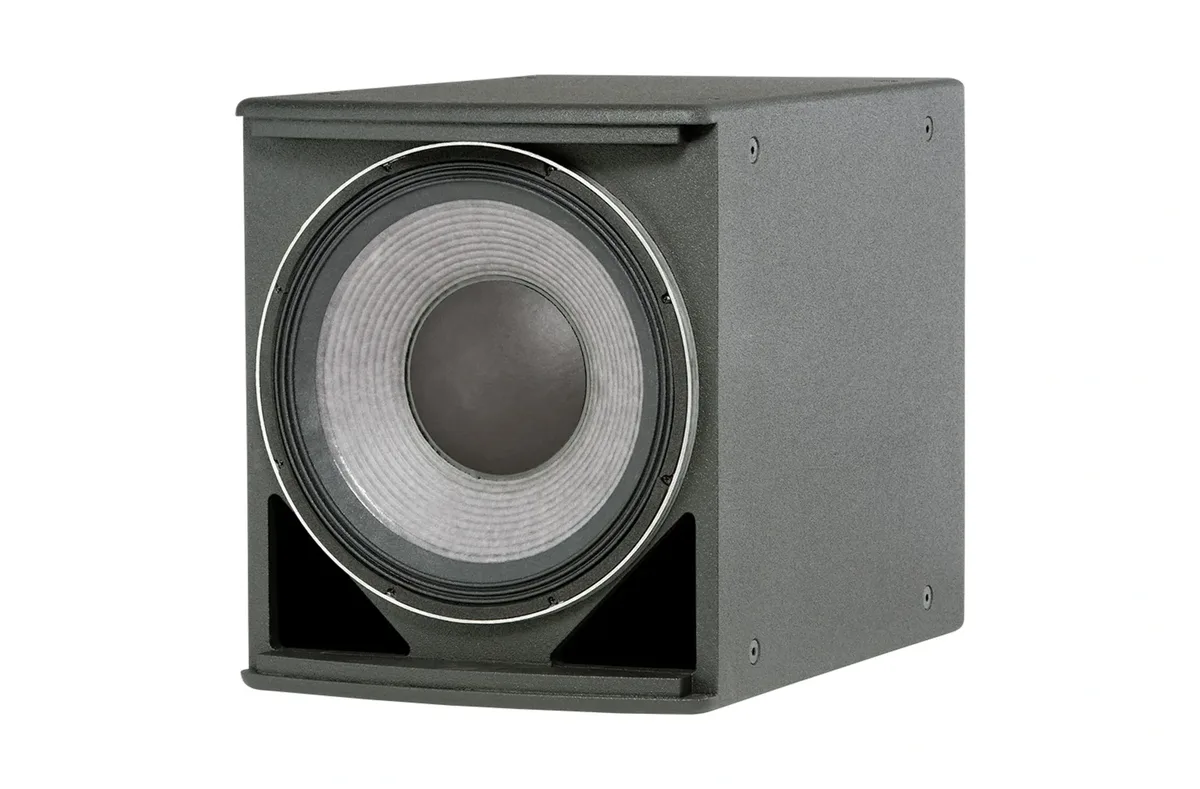

JBL ASB6115 Compact 15-inch Subwoofer

The ASB6115 is a compact 15-inch subwoofer, part of JBL's AE Series installed range. The low-frequency section uses 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive driver. Frequency range is 32 Hz - 1 kHz. JBL rates it at 675 W (2700 W peak), 100 hrs. Maximum SPL at 1 m is 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak). Nominal impedance is 8 ohms.

The enclosure is Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood. The grille is Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. Finish is Black DuraFlex finish. White available upon request. Rigging: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware. Environmental rating: Mil-Std 810; IP-x3 per IEC529. Net weight is 20.6 kg (45.5 lb).
