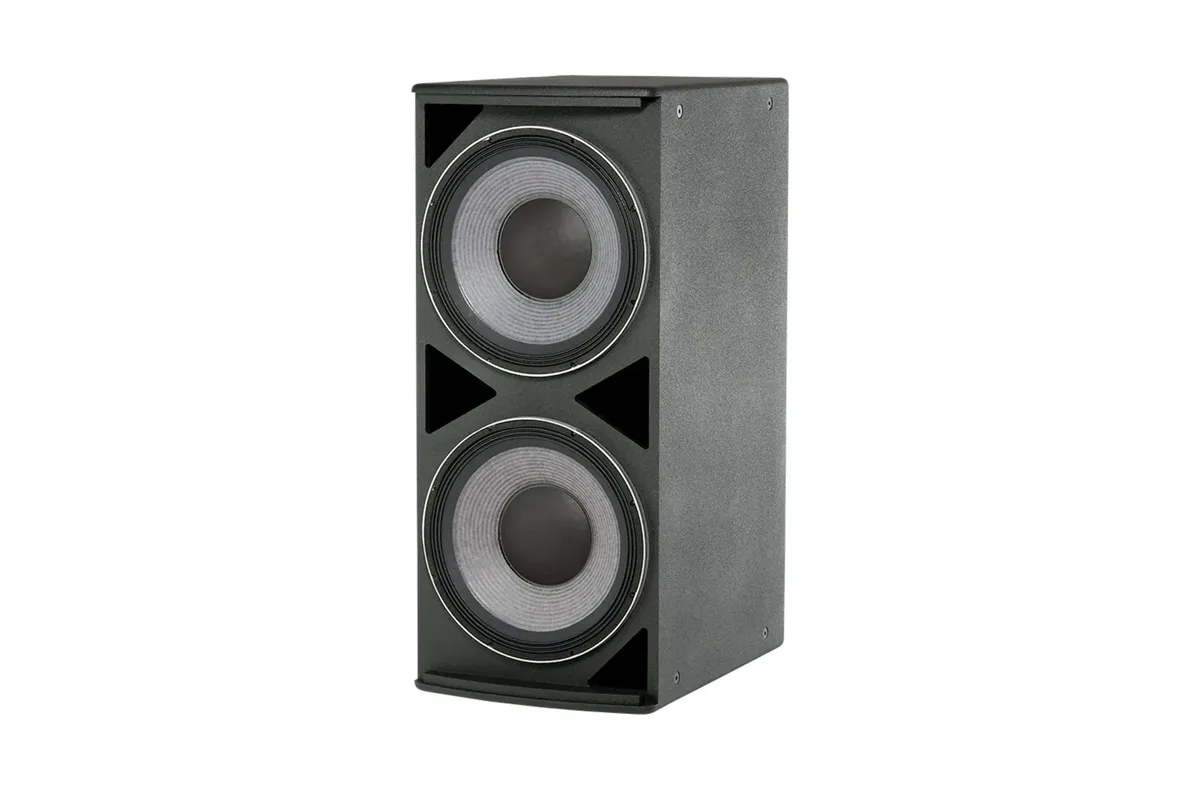

JBL ASB6125 Dual 15-inch Subwoofer

The ASB6125 is a dual 15-inch subwoofer, part of JBL's AE Series installed range. The low-frequency section uses 2 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive drivers. Frequency range is 32 Hz - 1 kHz. JBL rates it at 1350 W (5400 W peak), 100 hrs. Maximum SPL at 1 m is 35 Hz - 400 Hz: 132 dB-SPL cont avg (138 dB peak). Nominal impedance is 4 ohms in parallel-drive mode2 x 8 ohms in discrete-drive mode.

The enclosure is Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood. The grille is Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing. Finish is Black DuraFlex finish.White available upon request. Rigging: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware. Environmental rating: Mil-Std 810; IP-x3 per IEC529. Net weight is 36.7 kg (81.0 lb).
