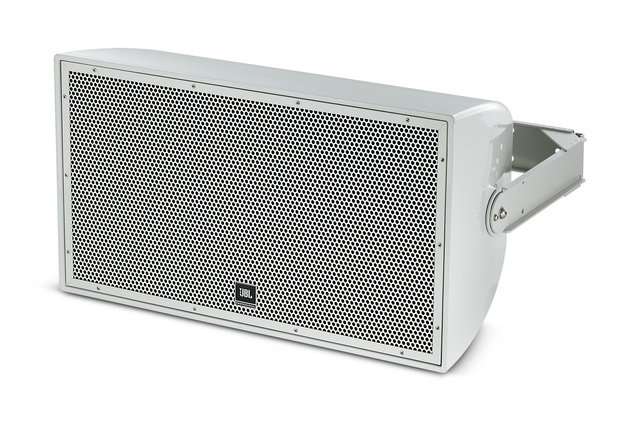

JBL AW266-LS High Power 2-Way All Weather Loudspeaker with 1 x 12" LF / EN 54-24 Compliant for Life Safety Applications

The AW266-LS is a high power 2-Way all weather loudspeaker with 1 x 12" LF / EN 54-24 compliant for life safety applications, from JBL's all-weather installed range. The low-frequency section uses 1 x JBL 2262H 300 mm (12 in) Differential Drive driver with 75 mm (3 in) dual voice coil. High frequencies come from JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil. Nominal coverage is 60 degrees x 60 degrees waveguide. Frequency range is 54 Hz - 20 kHz. JBL rates it at 400 W (1600 W peak) 100 hrs.

The enclosure is Hand-Laminated Fiberglass, gray gelcoat (similar to Pantone 420C), available in black (-BK). The grille is Three layer grille assemblies consisting of 16-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh. Transformer taps are 70V: 400 W, 200 W, 100W 100V: 400W, 200W. Connections are CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Rigging: 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety. Environmental rating: IP55C per IEC 529.
