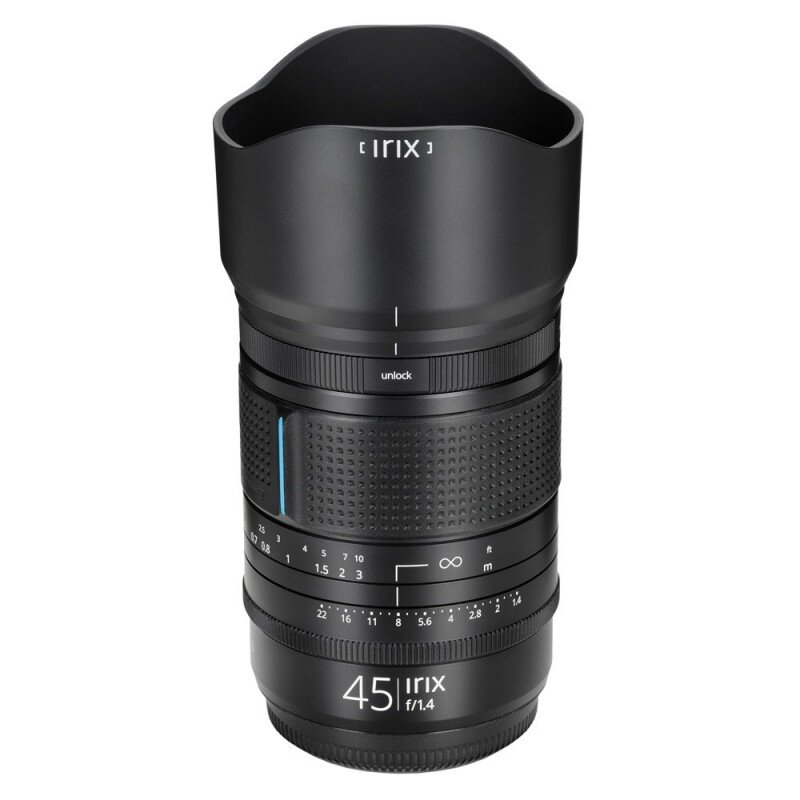

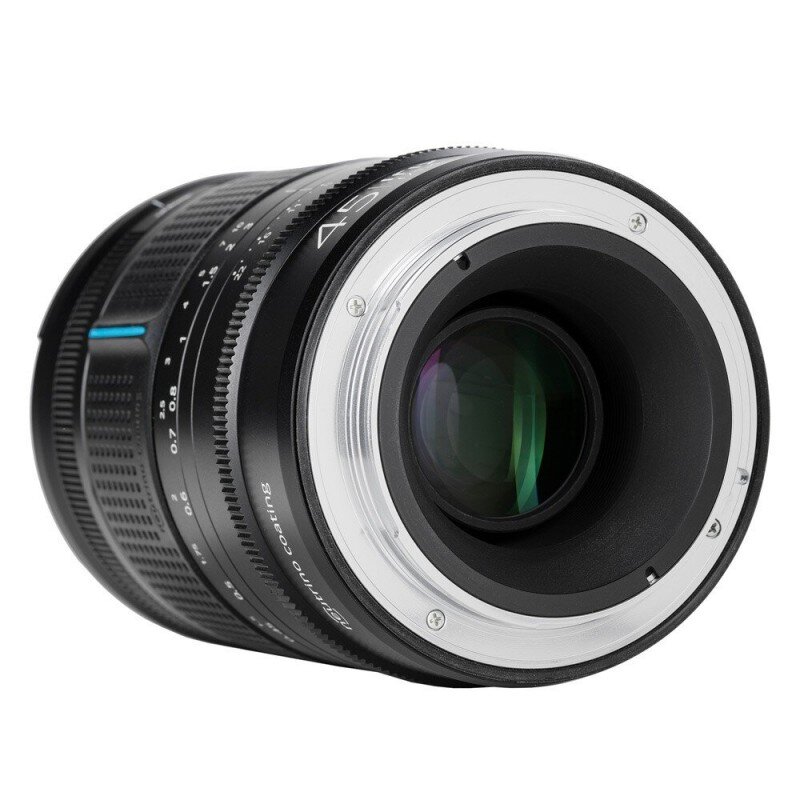

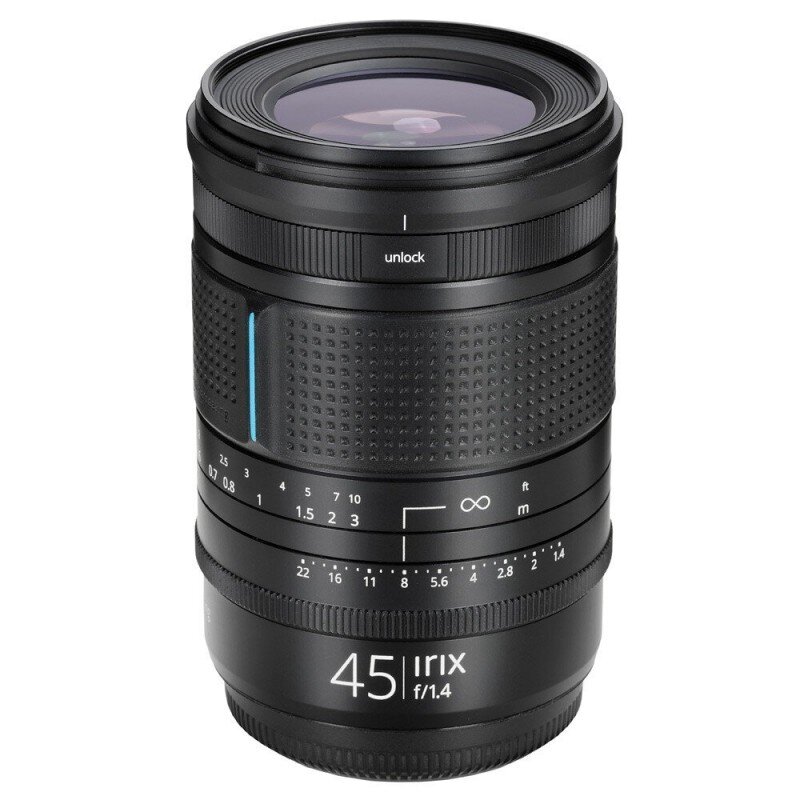

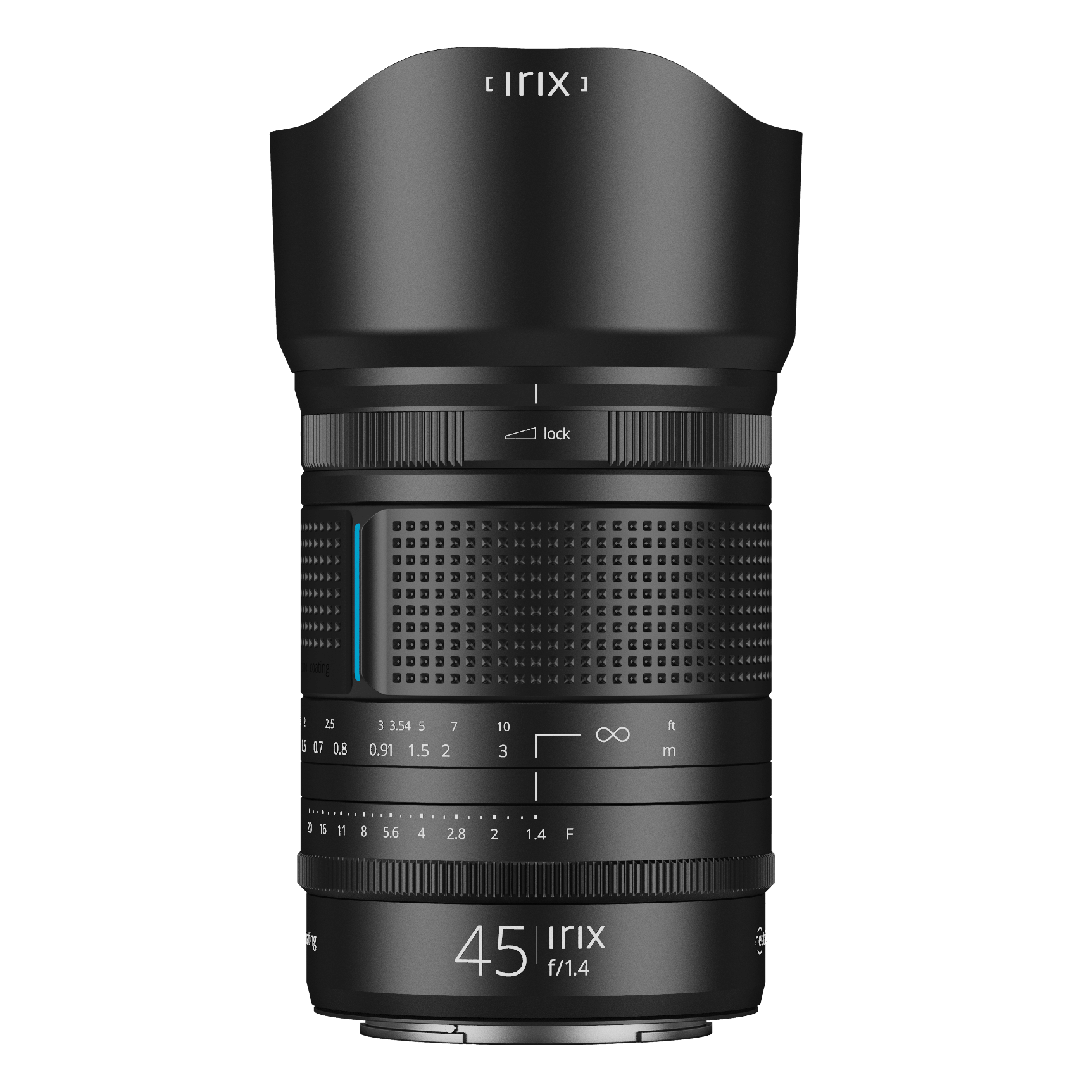

Irix 45mm f/1.4 Dragonfly Lens for Fujifilm GFX
This is the Irix 45mm f/1.4 built for Fujifilm GFX medium format, where the same optical block covers a larger frame and reads as 62.64 degrees diagonally rather than 51.4. It is a fast standard-wide on a system where f/1.4 is unusual, focusing to 0.4 m with a 140 degree manual throw and a focus lock.
Aperture is set manually on the lens rather than from the camera, and the barrel measures 87 x 144 mm and weighs 1120 g. Eleven elements in nine groups with one aspherical element control distortion, and the nine-blade rounded iris keeps out-of-focus areas smooth. A 77 mm front thread takes screw-in filters. The Dragonfly barrel is sealed in five key areas and ships with a rigid case and hood.
| Image Format | 43.3 mm image circle for Fujifilm GFX |
|---|---|
| Focal Length | 45 mm |
| Aperture Range | f/1.4 - f/22 |
| Field of View | 62.64 degrees diagonal |
| Iris | 9 rounded blades |
| Aperture Control | Manual, on the lens |
| Minimum Focus | 0.4 m |
| Optical Construction | 11 elements in 9 groups (1 aspherical) |
| Front Filter Thread | 77 mm |
| Dimensions | 87 x 144 mm |
| Weight | 1120 g |
| Weather Sealing | 5 key areas |
