HK Audio PREMIUM PR:O 12 Passive 12 inch Loudspeaker
The PREMIUM PR:O 12 is the workhorse of the passive PR:O line: a 12-inch cone driver and a 1-inch compression driver on a constant directivity horn, crossed at 2 kHz behind a 60 by 40 degree pattern. Sensitivity of 104 dB and 400 W RMS handling give 128 dB peak, which is a great deal of level for the money and for the 41 pound cabinet.

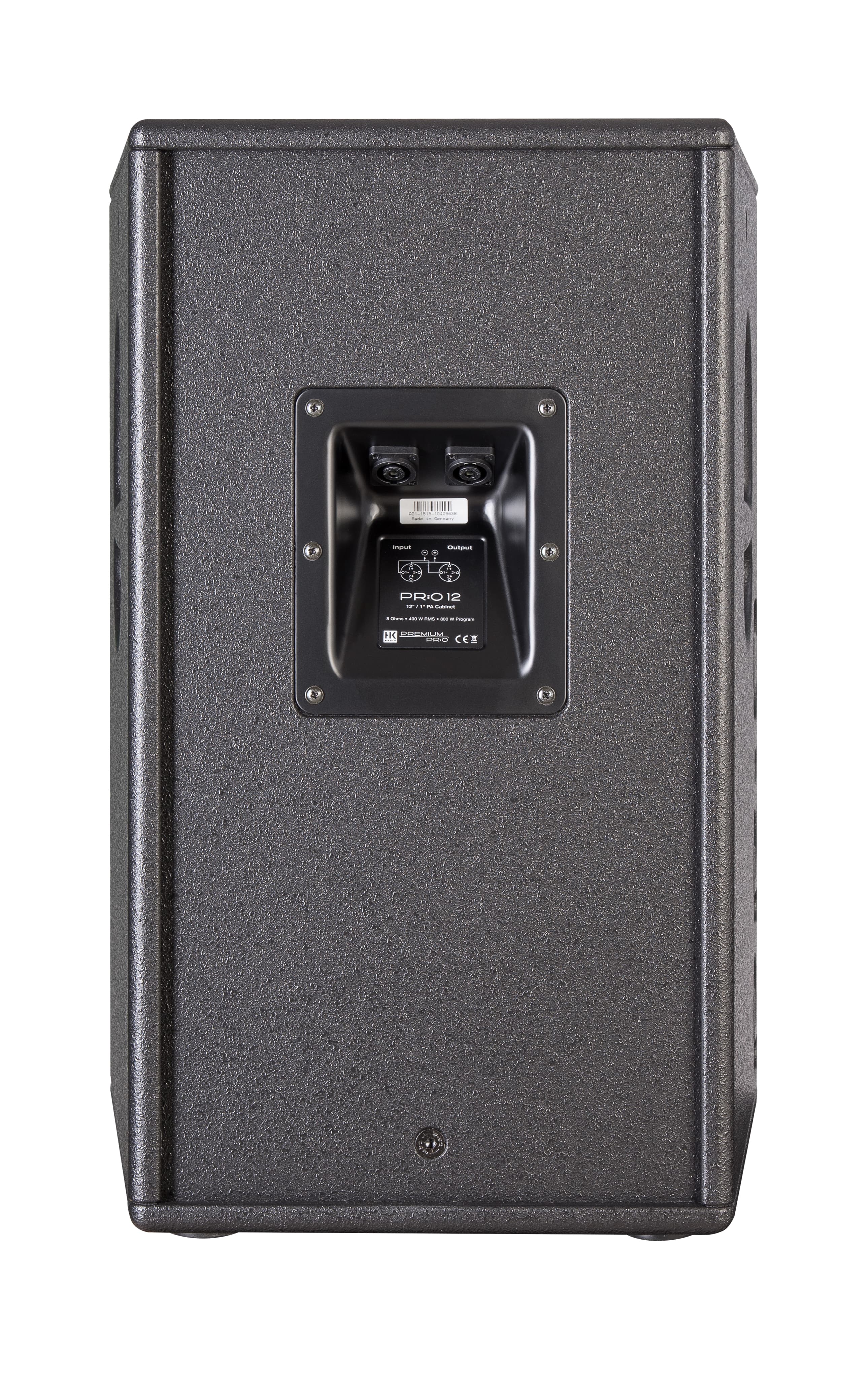

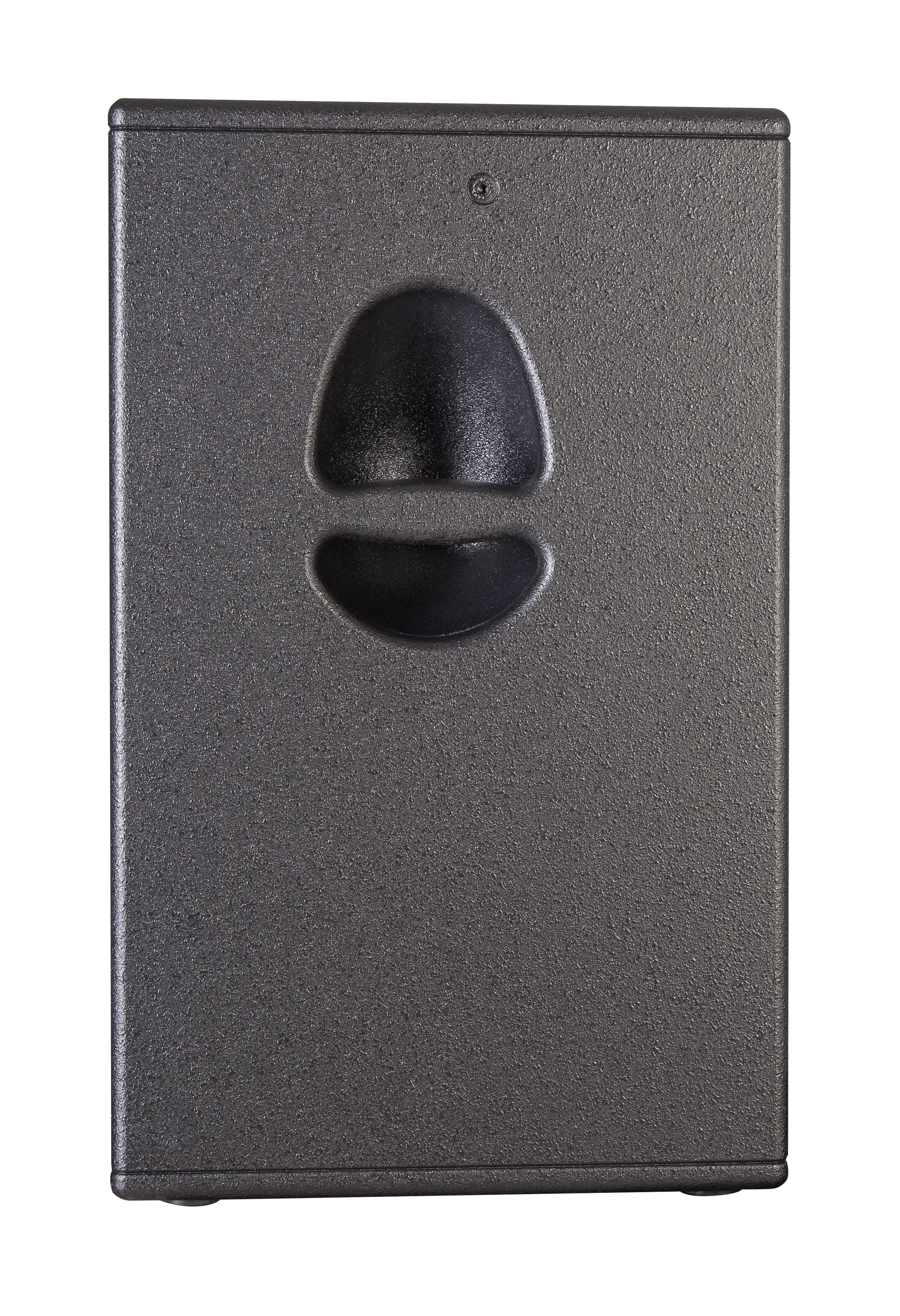

Response runs from 68 Hz, so it holds a full band without a subwoofer in a small room and takes a PR:O 210 S or 18 S underneath when it will not. Connection is NL4 Speakon in and parallel out, pinned 1+/-. The MDF cabinet has a DuoTilt 3 or 7 degree pole socket, three M8 rigging points and two integrated handles. Amplifier presets and filter sheets are published for the Lab.gruppen IPX and IPD series.
| Concept | Passive 2-way mid/high unit, bass reflex |
|---|---|
| Power Handling | 400 W RMS / 800 W program / 1200 W peak, 8 ohms |
| Max SPL Peak | 128 dB |
| Sensitivity 1 W / 1 m | 104 dB |
| Frequency Range | 68 Hz - 19 kHz (-6 dB), 60 Hz - 19 kHz (-10 dB) |
| Dispersion | 60 x 40 degrees |
| Cabinet / Rigging | DuoTilt 3/7 degree pole mount, 3 x M8 rigging point |
| Weight | 18.5 kg (40.8 lb) |
| Order Code | PREM-PRO-12-U |
