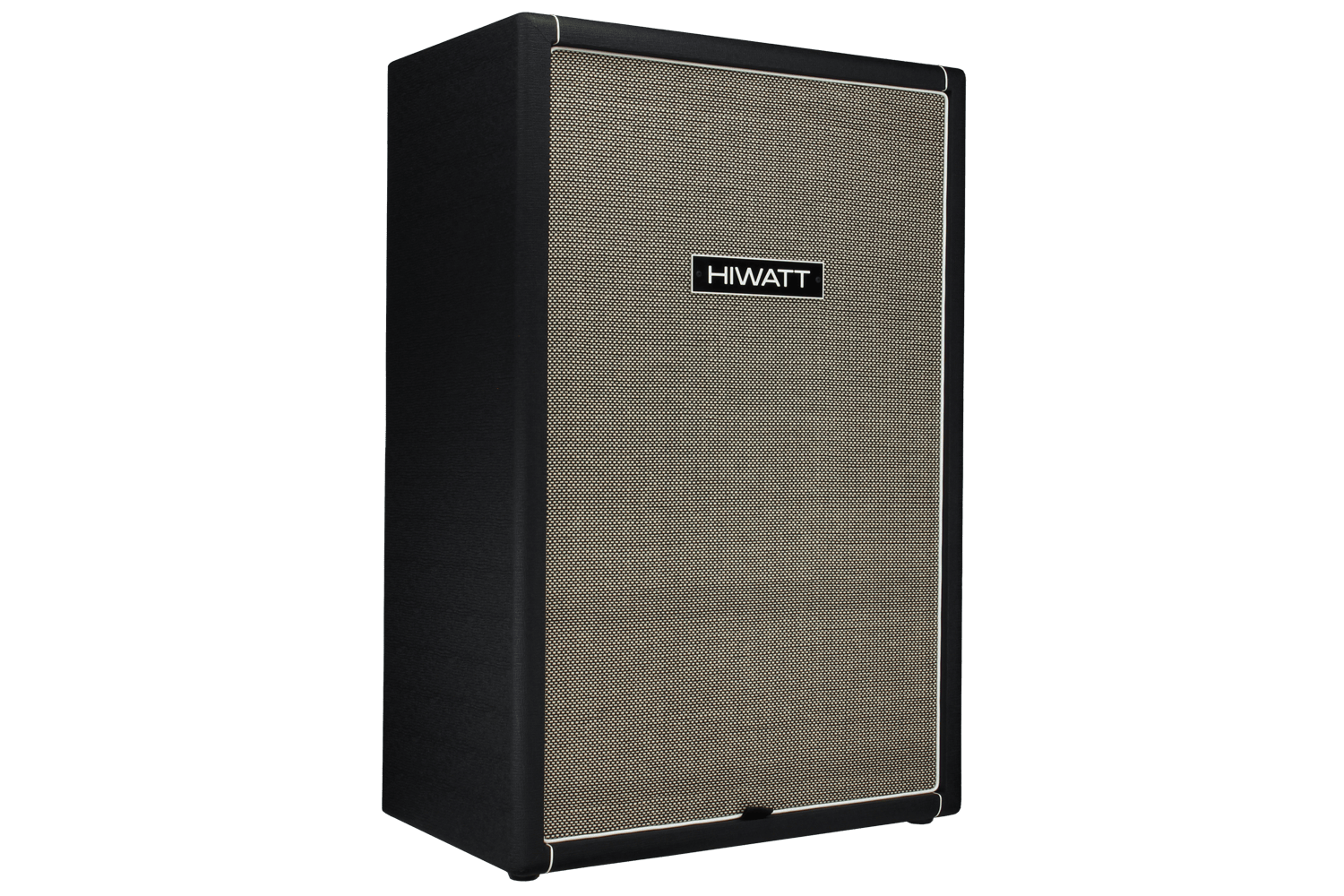

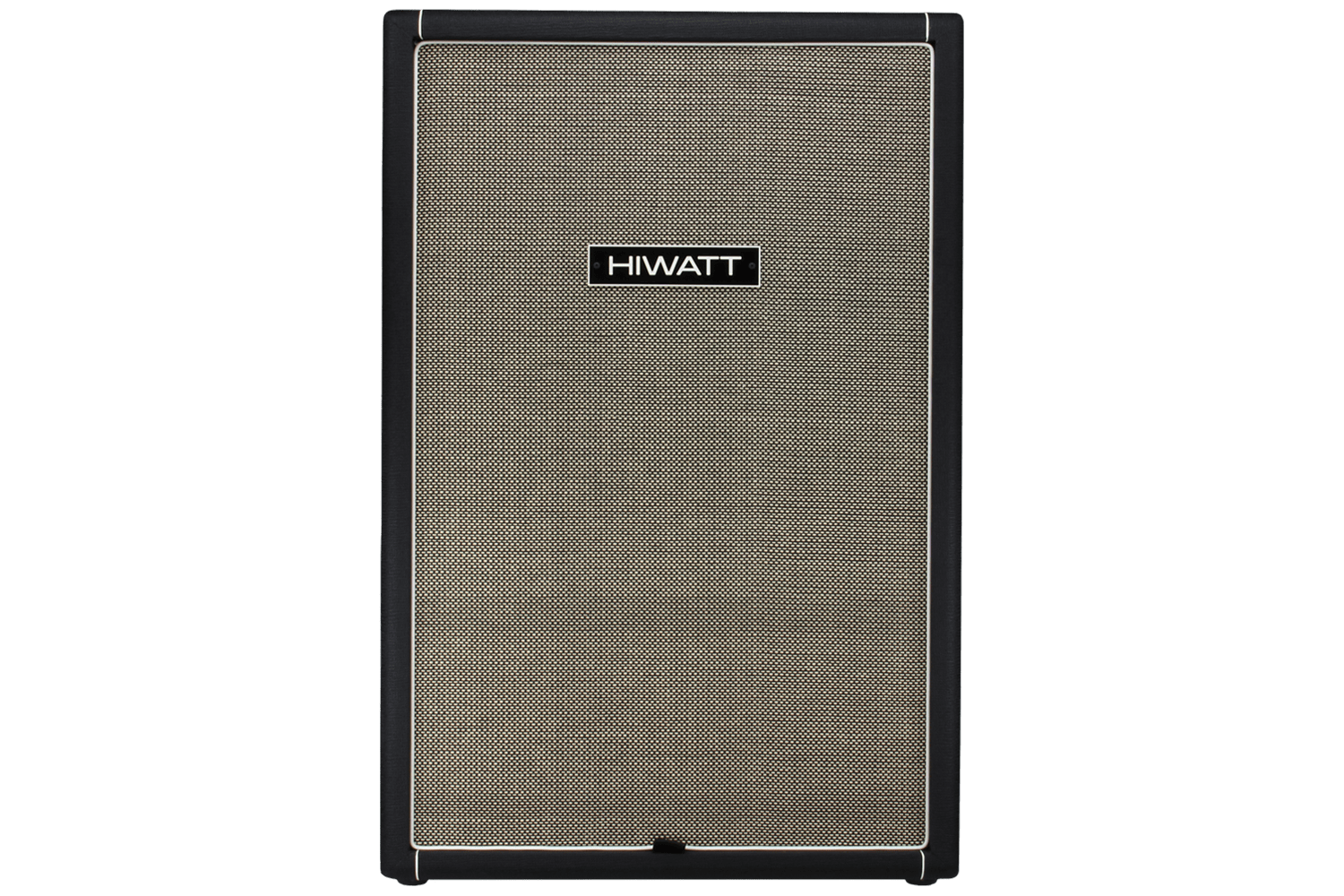

Hiwatt SE810F Custom Speaker Cab w/ 8x10" Fane Speakers

Eight 10-inch Fane Sovereign 300-10s and 2,400 watts of handling. The SE810F is the largest cabinet Hiwatt's Custom Shop builds, and its power rating exists so the drivers reproduce an amplifier's breakup rather than adding their own.

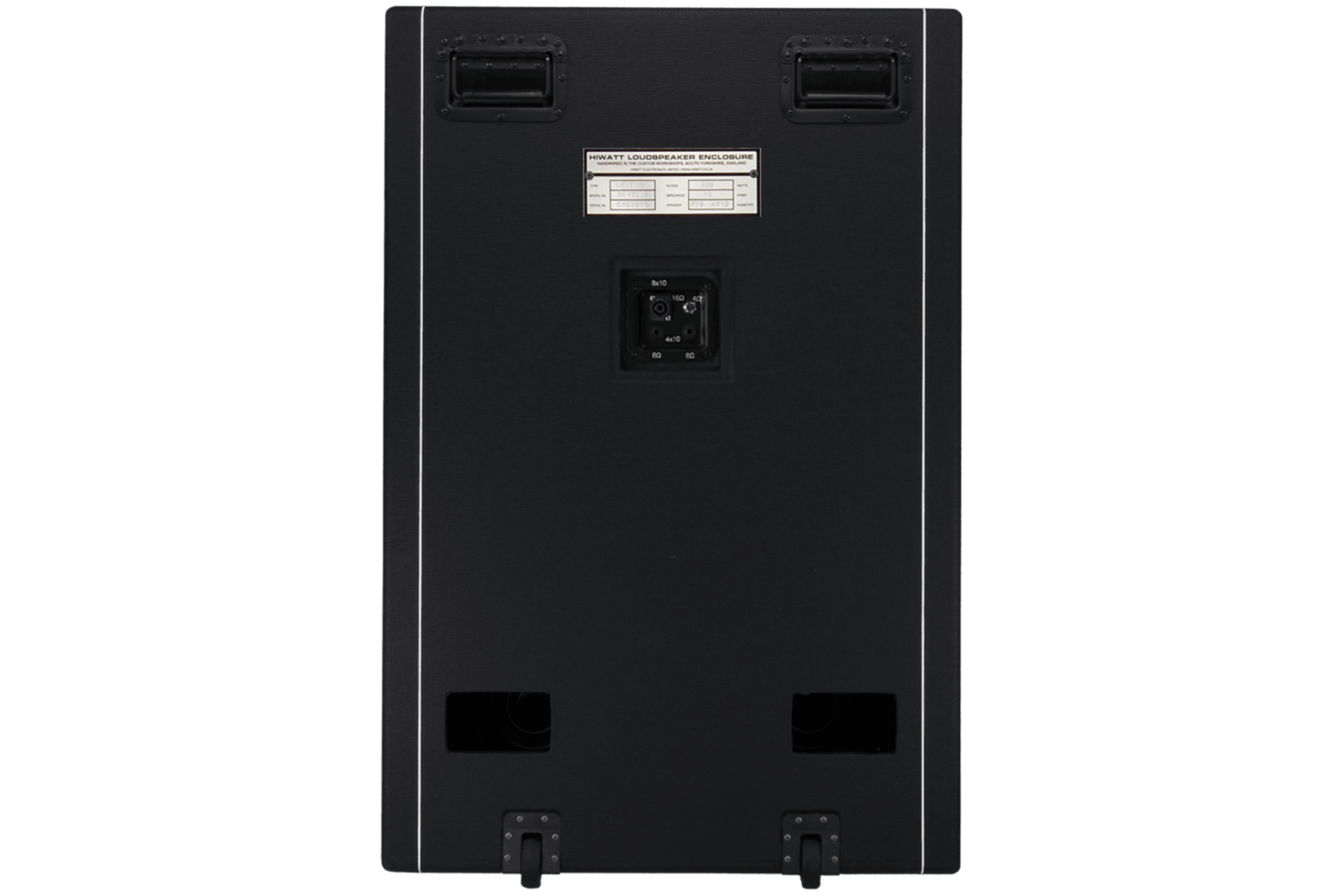

The jack plate splits it into two independent 4x10 sections, each with its own input, plus a third input that drives all eight. That allows two mono amps at once, a guitar amp through one half and a bass amp through the other. Construction is 18mm birch ply on historically accurate dimensions, with a vintage-correct Traffolyte badge and a hand-punched, hand-numbered serial plate.

Configuration8x10 Custom Shop bass speaker cabinet
Speakers8 x Hiwatt Fane Sovereign 300-10, 300 W, 10-inch
Power Handling2400W
Inputs1/4" Mono Input (4x10" @ 8Ω); 1/4" Mono Input (4x10" Only); 1/4" Mono Input (8x10")
RoutingTwo independent 4x10 sections for bi-amping, plus a combined 8x10 input
Construction18mm birch ply
BuildHand-wired and tested in the Hiwatt Custom Shops
