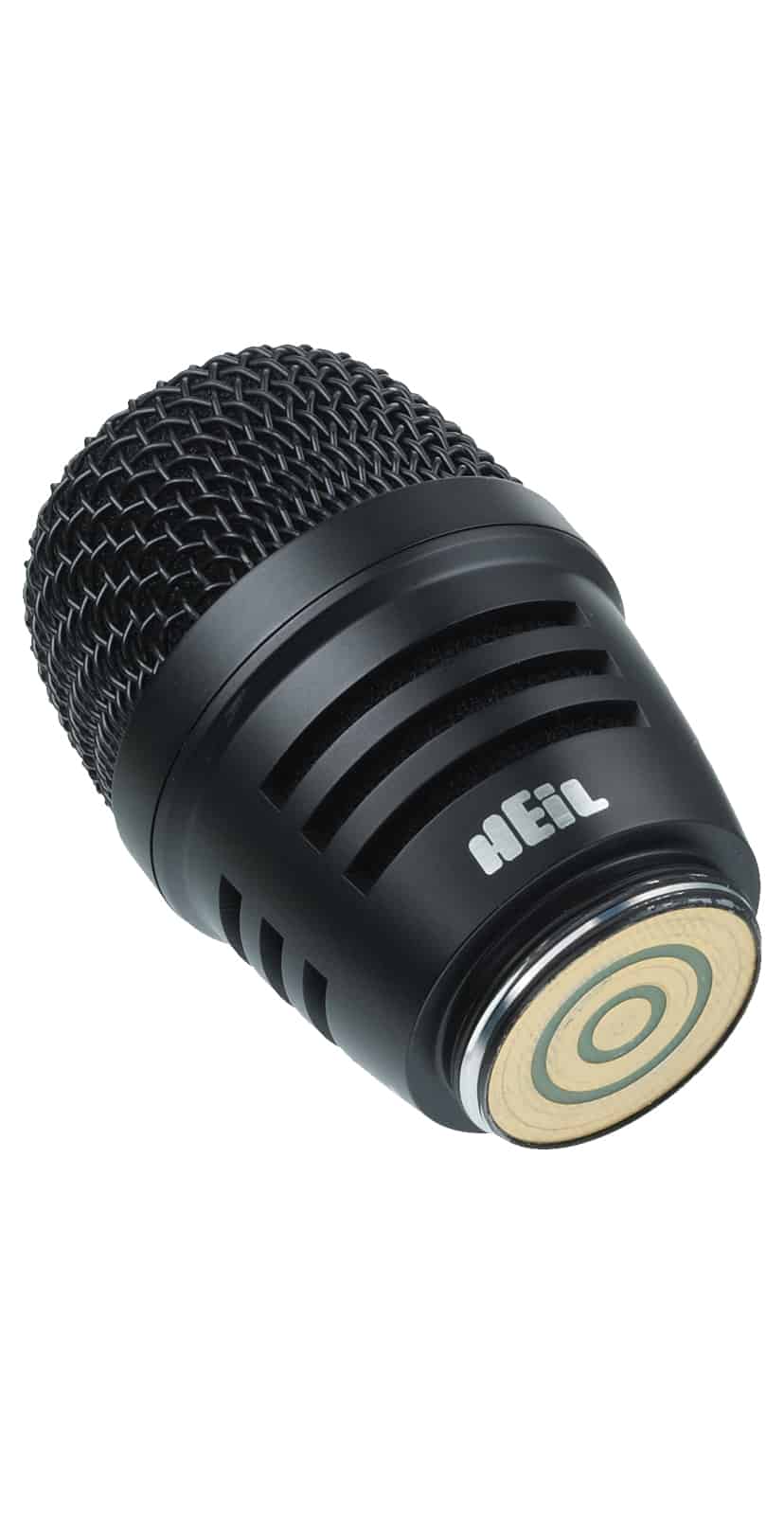

Heil Sound RC 35 Dynamic Wireless Microphone Capsule
The RC 35 puts Heil's supercardioid dynamic element into a capsule that threads onto a handheld wireless transmitter, so a vocalist who works on a wired PR 35 can carry the same voice onto a wireless rig. Response runs 40 Hz to 18 kHz with 140 dB of headroom and -52 dB output level, into a 370 ohm balanced load.
The thread is 31.3 mm at 1.0 mm pitch (1.25 in x 28), which fits most Shure, Sony, Lectrosonics, and Line 6 transmitters that take removable capsules; some Sennheiser bodies work with the correct adapter. The capsule weighs 5.5 oz and is stocked in chrome and gold.
| Element Type | Dynamic |
|---|---|
| Polar Pattern | Supercardioid |

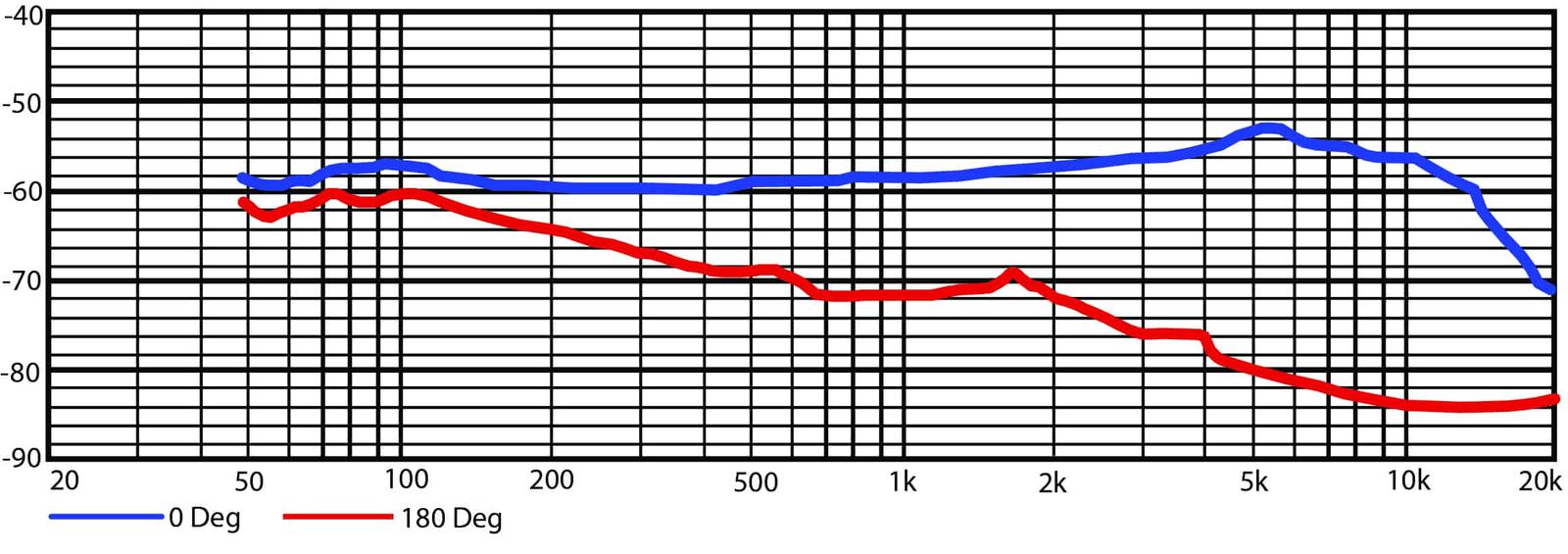

| Frequency Response | 40 Hz - 18 kHz |
| Impedance | 370 ohms balanced |
| Output Level | -52 dB at 1 kHz |
| Max SPL | 140 dB |
| Thread | 31.3 mm x 1.0 mm pitch (1.25 in x 28) |
| Compatibility | Most Shure, Sony, Lectrosonics and Line 6 removable-capsule transmitters |
| Weight | 5.5 oz |
