Hear Technologies Mix Back 16 x 12 Monitor Mixer

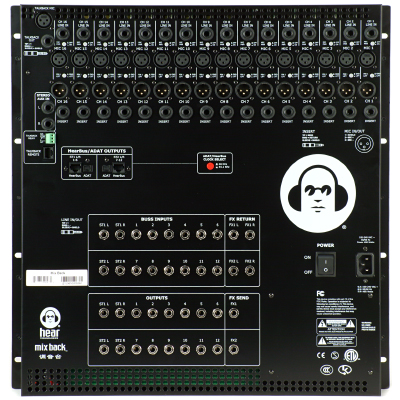

Mix Back is a 16 x 12 x 2 x 2 monitor mixer: sixteen mic/line inputs with a passive XLR split so the front-of-house console still sees every source, and twelve mono plus two stereo outputs to feed wedges and in-ear rigs. Each input has a four-band EQ with sweep and a 100 Hz three-pole high-pass filter, so problem sources get fixed at the monitor position instead of on the main desk.

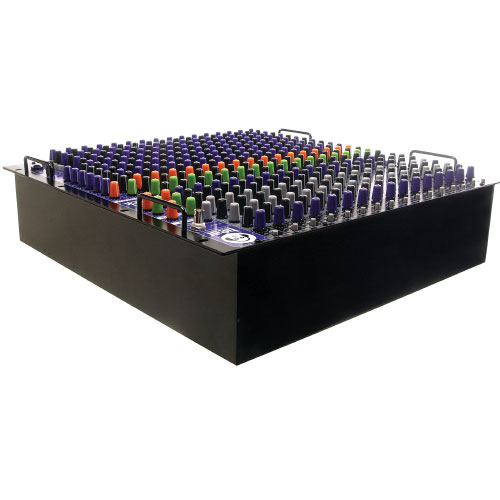

The frame carries ADAT and HearBus outputs at sixteen channels each, which is how it ties into the rest of the Hear Back system without an outboard converter. Talkback runs through its own mic preamp and can be assigned to any output or to the intercom. It is a steel 11RU chassis on a universal 100-240 VAC supply, so it travels without a voltage selector.
