Hear Technologies Switch Back M8RX

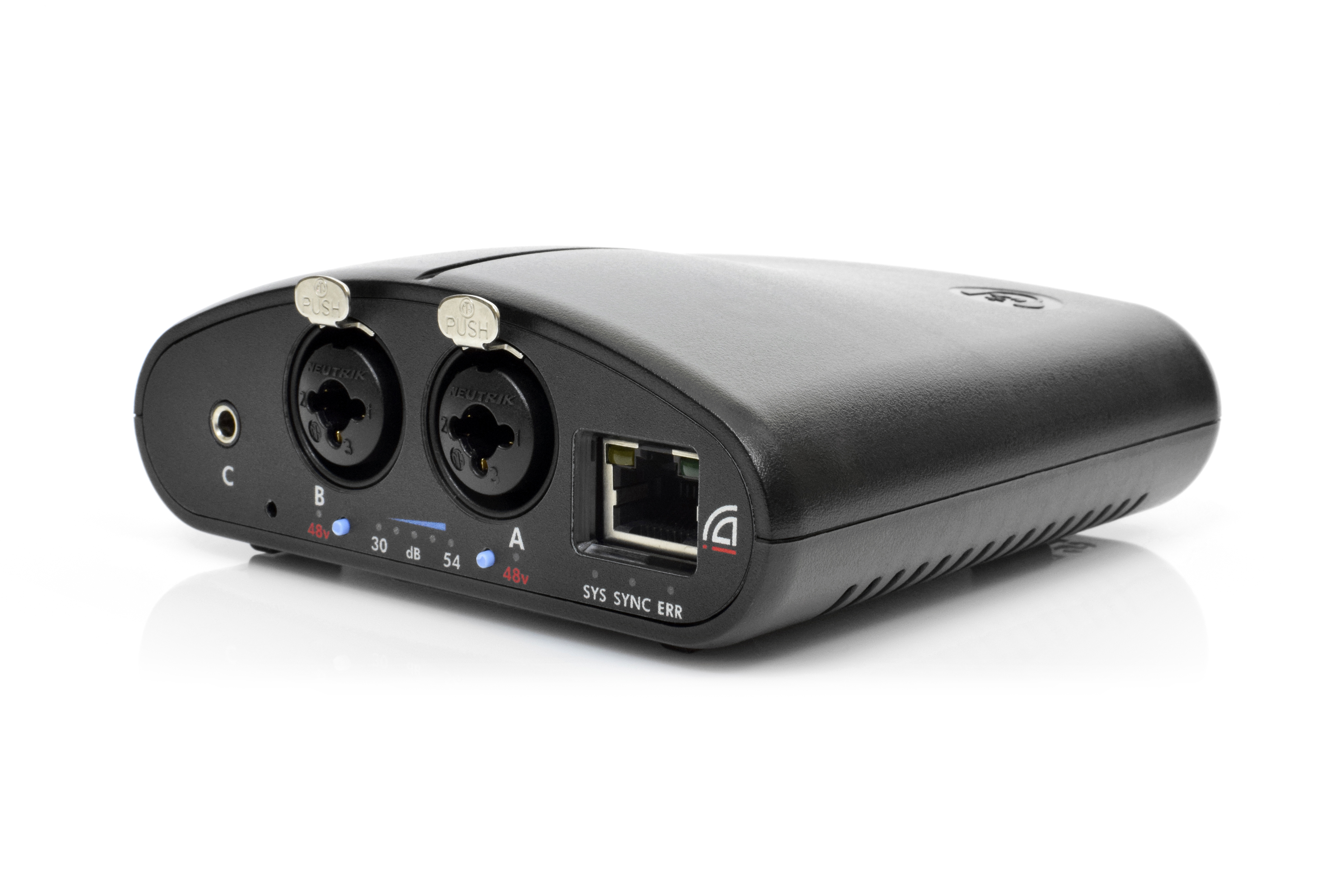

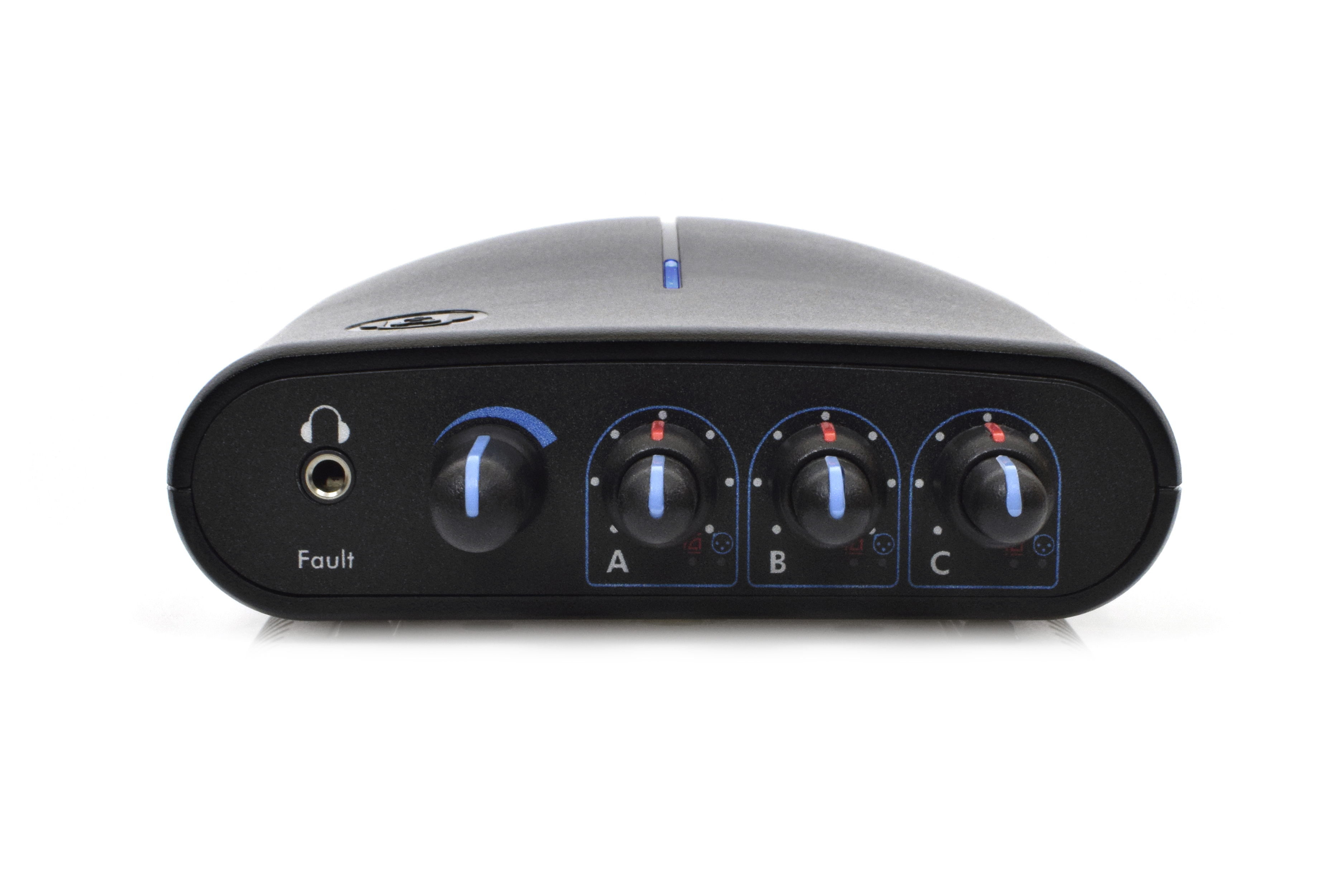

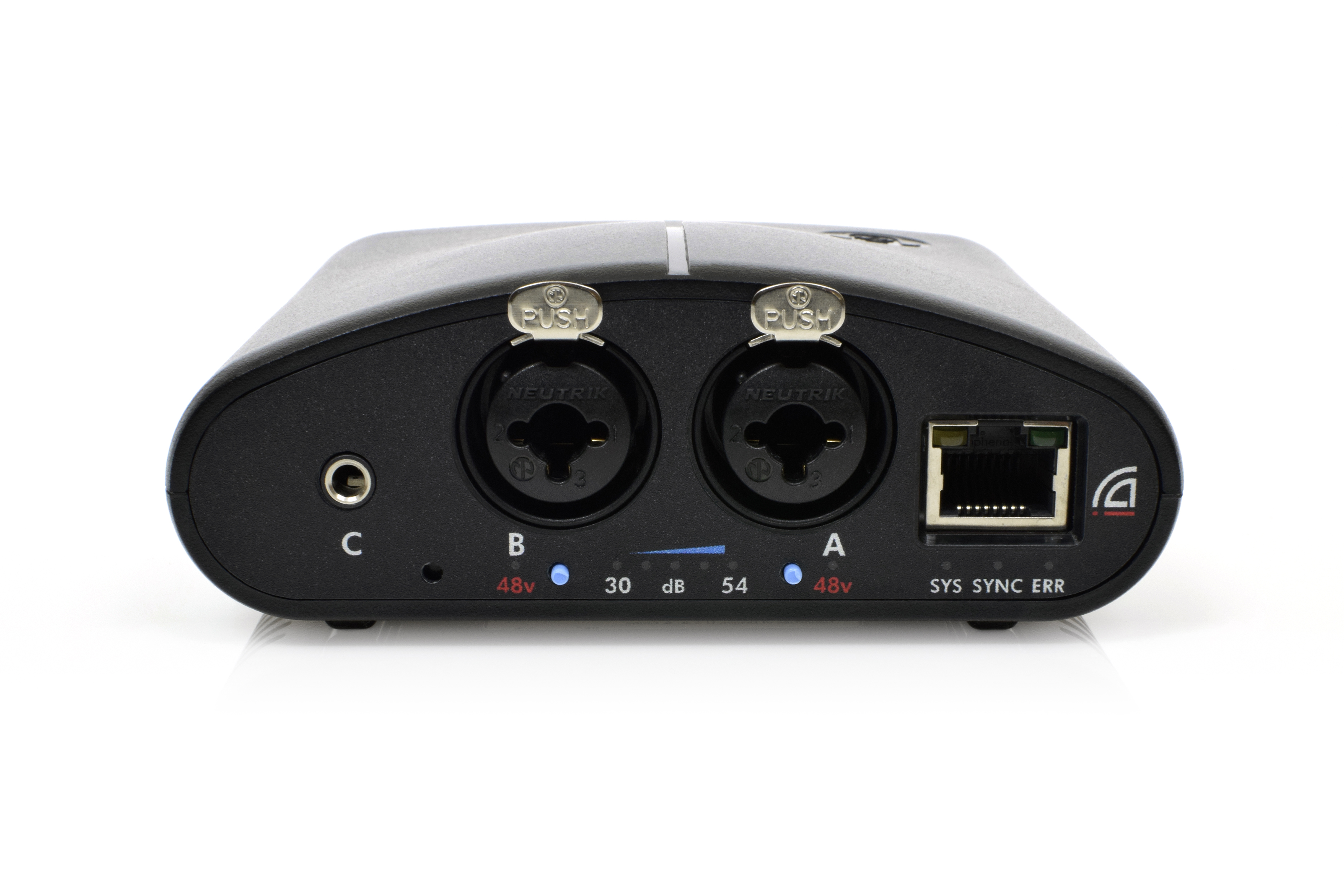

Switch Back M8RX is two products in one: a personal interface for live sound or recording, and a multi-channel headphone monitoring system. It mixes eight channels total, two studio-quality microphone preamps, two line-level inputs, and four Dante network audio inputs/outputs, with zero-latency analog mixing and monitoring of the four local inputs. The mic preamps hold distortion below 0.001% even at 60 dB of gain.

The unit is small enough to belt-clip, mount on a mic stand, or set on a table via its standard 1/4-inch 20 tripod thread, and shares the same headphone amp as the Hear Back PRO and OCTO systems, rated 5 watts of headphone power. It runs on Power over Ethernet across the same Cat6 cable that carries its Dante audio, and connects to a computer over the same Ethernet port. The M8RX is manufactured in the U.S.

Local Inputs2 mic preamps + 2 line-level, zero-latency analog mixing
Dante I/O4x4 (4 Dante inputs and 4 Dante outputs)
Mic Preamp Distortion0.001% THD+N, even at 60 dB gain
Headphone Power5 watts
Connectivity100/1000 BaseT Ethernet, powered by PoE+
Mounting1/4"-20 tripod thread, belt clip, or desk mount
Dimensions5.5 in H x 4.45 in W x 1.625 in D
Weight9.5 oz
