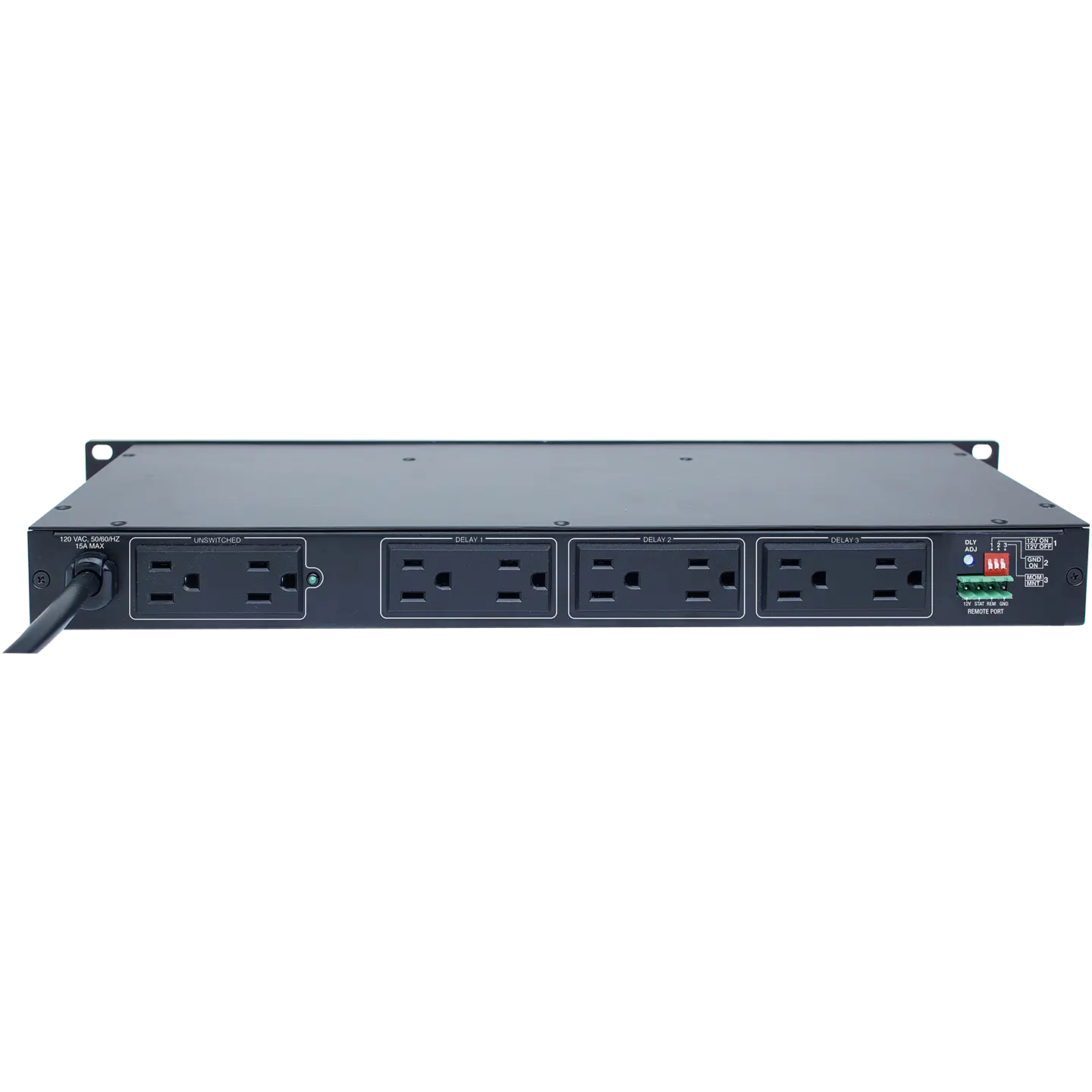

Furman M-8S Merit Series Power Sequencer for Inrush Current Protection

The Furman M-8S is a sequencer for 120 (Volts) supplies. Outlets: 2 Un-switched NEMA 5-15R (1 duplex). AC protection is Merit Class (sacrificial).

Filtration uses Pi LCR Filter, rated >26dB, 100 Khz to 1 MHz. Control is by front panel, Sequence (ON, OFF). Published dimensions are 1.75" x 19.00" x 6.5" (HWD) - ANSI 1RU at 5.3 lbs.. Surge handling is rated 12,000 Amps peak impulse current. Cord length is 14AWGx3, 10 feet, black, fixed, NEMA 5-15P plug. Power consumption is 5 Watts. Compliance: C/CSA/US.
